Pramac S7500 - Page 22

S5000 GENERATOR PARTS
22

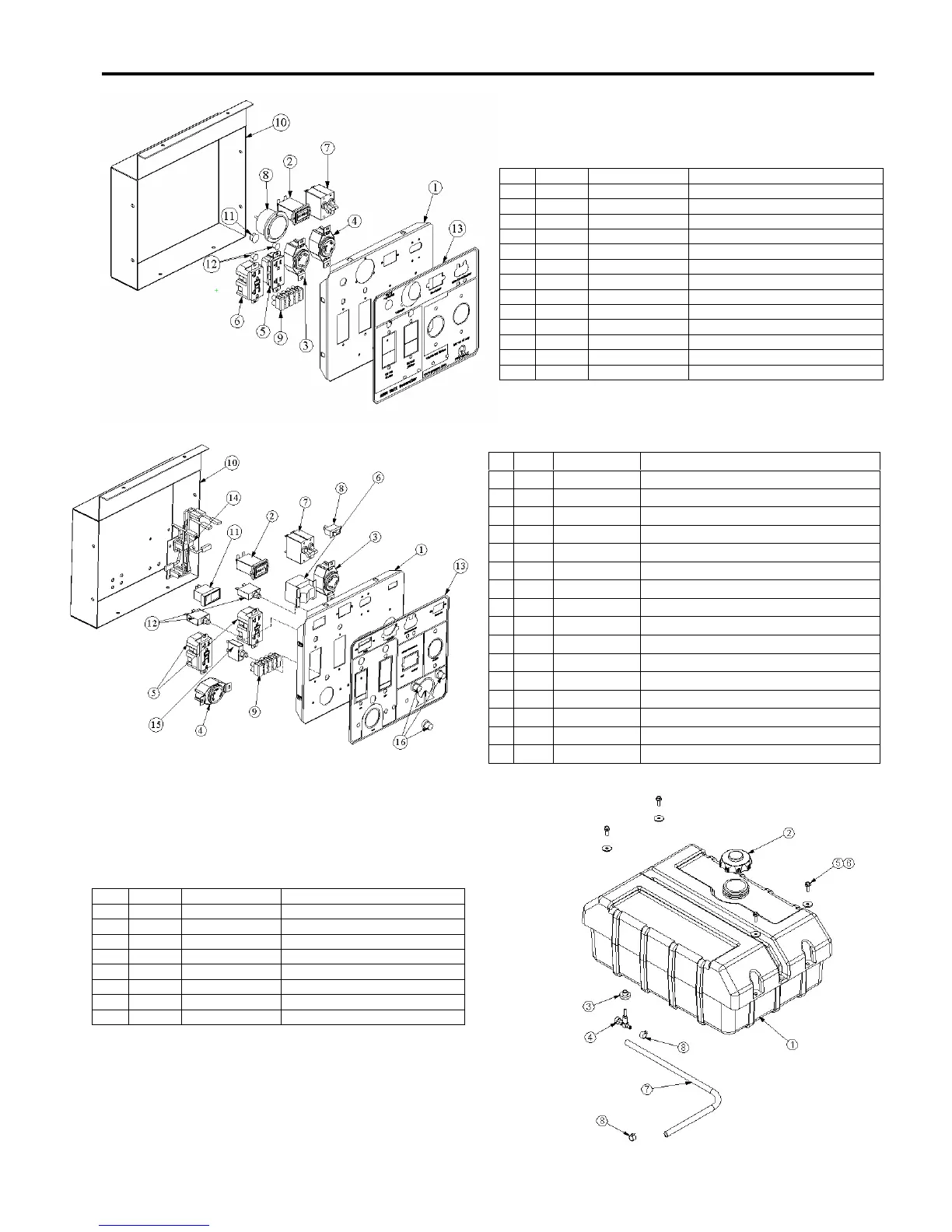

CONTROL PANEL ASSEMBLY - DELUXE PANEL
FUEL ASSEMBLY
ID Q.TY PART NO. DESCRIPTION
1 1 GA9326 Panel Face
2 1 G079823 Hourmeter
3 1 G071407 20A 125/250V Twistlock Rec.
4 1 G071440 20A 250V Twistlock Recept.
5 1 G071412 20A Duplex Receptacle
6 1 G071410 20A GFCI Receptacle
7 1 G075756 20A Thermal CB
8 1 G079829 Voltmeter
9 1 G079500 Connector
10 1 VA40011711- Control Panel Box
11 1 G051120 Cap For Hole Ø16
12 2 G051106 Cap For Hole Ø11
13 1 G004260 Adhesive Label Deluxe Panel
CONTROL PANEL ASSEMBLY - RENTAL PANEL
ID Q.TY PART.NO DESCRIPTION
1 1 SA40011708 Panel Face
2 1 G079823 Hourmeter
3 1 G071411 30A 125/250V Twistlock Rec.
4 1 G071406 30A 125V Twistlock Recept.
5 2 G071410 20A GFCI Receptacle
6 1 G075240 Voltage selector
7 1 G075756 Circuit Breacker Magn.Therm 20A 2 Pole
8 1 G075239 Switch ON-OFF Idle control
9 1 G079500 Terminal Block
10 1 VA40011012- Control Panel Box
11 1 G075244 Switch ON-OFF
12 2 G075532 Circuit Breacker Therm 20A
13 1 G004231 Adhesive Label Rental Panel
14 1 G076069 Idle Control Board
15 1 G075534 Circuit Breacker Therm 30A
16 3 G070305 Waterproof Cap
ID Q.TY PART NO. DESCRIPTION
1 1 SA40011020 8 gallons tank
2 1 G080206 Fuel Cap
3 1 G084801 Grommet, Fuel Valve
4 1 G83124 Fuel Valve
5 4 G041411 Flange Bolt, M6x20 Z
6 4 G020803 Fender Washer, M6x16mm
7 1 G083602 Fuel Hose, 20.25” Long
8 2 G049203 Hose Clamp, Spring ¼”
