pratic LEVEL - Square Bar Fixing Details; Main Structure Fixing on Square Bar; Guide;Gutter Bracket Fixing

PAG. 23 Pergola LEVEL - manuale di uso e installazione Rev. 06/17
10Q
√ √

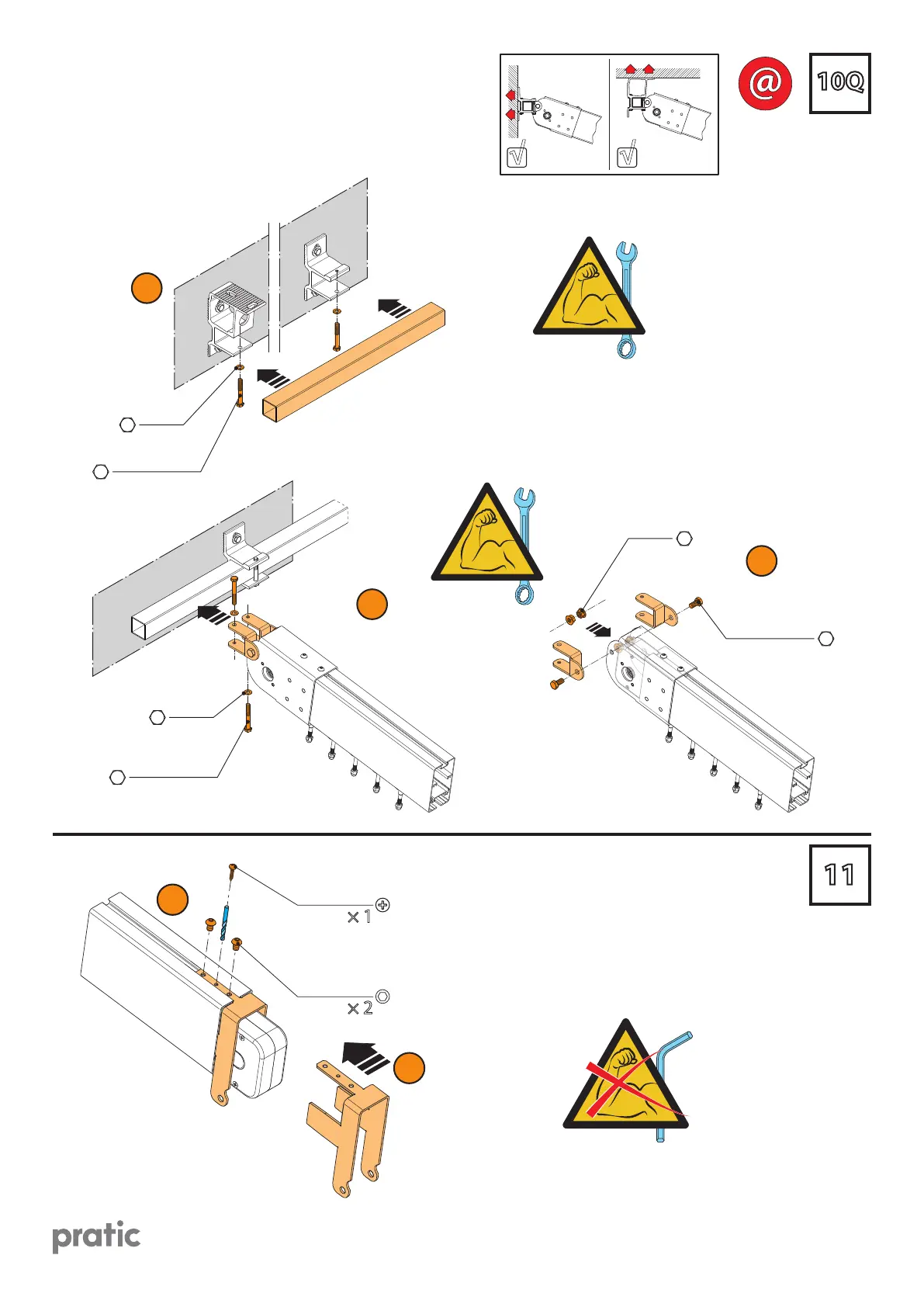

Fissaggio su barra quadra (optional)
Installation on square bar (optional)
Fixation sur barre carrée (en option)
Befestigung auf vierkant stange (optional)
M8 × 60
M8
M10
M8 × 60
M8
M10 × 20
2
1
3
2
1
TBEI
M8 × 12
×
2
TC+
4,8 × 25
×
1
Ø 4mm
Attacco guida/gronda
Guide/gutter bracket
Bride d’attache rail/gouttière
Halterung Führungs/Rinne
11
