3
Ref. Qty. Description
1 1 Hitch Tube R.H.
2 1 Hitch Tube L.H.
3 1 Handle Assembly
4 1 Clevis Plate (straight)
5 1 Clevis Plate
6 1 Hopper Bag
7 1 Connecting Bar
8 1 Sweeper Housing Assembly
9 2 Bag Arm Tube
Ref. Qty. Description
10 1 Bag Frame Strap
11 2 Hopper Support Rod
12 1 Lower Hopper Side Tube R.H.
13 1 Lower Hopper Side Tube L.H.
14 1 Upper Hopper Side Tube R.H.
15 1 Upper Hopper Side Tube L. H.
16 2 Rear Hopper Tube
17 1 Rope

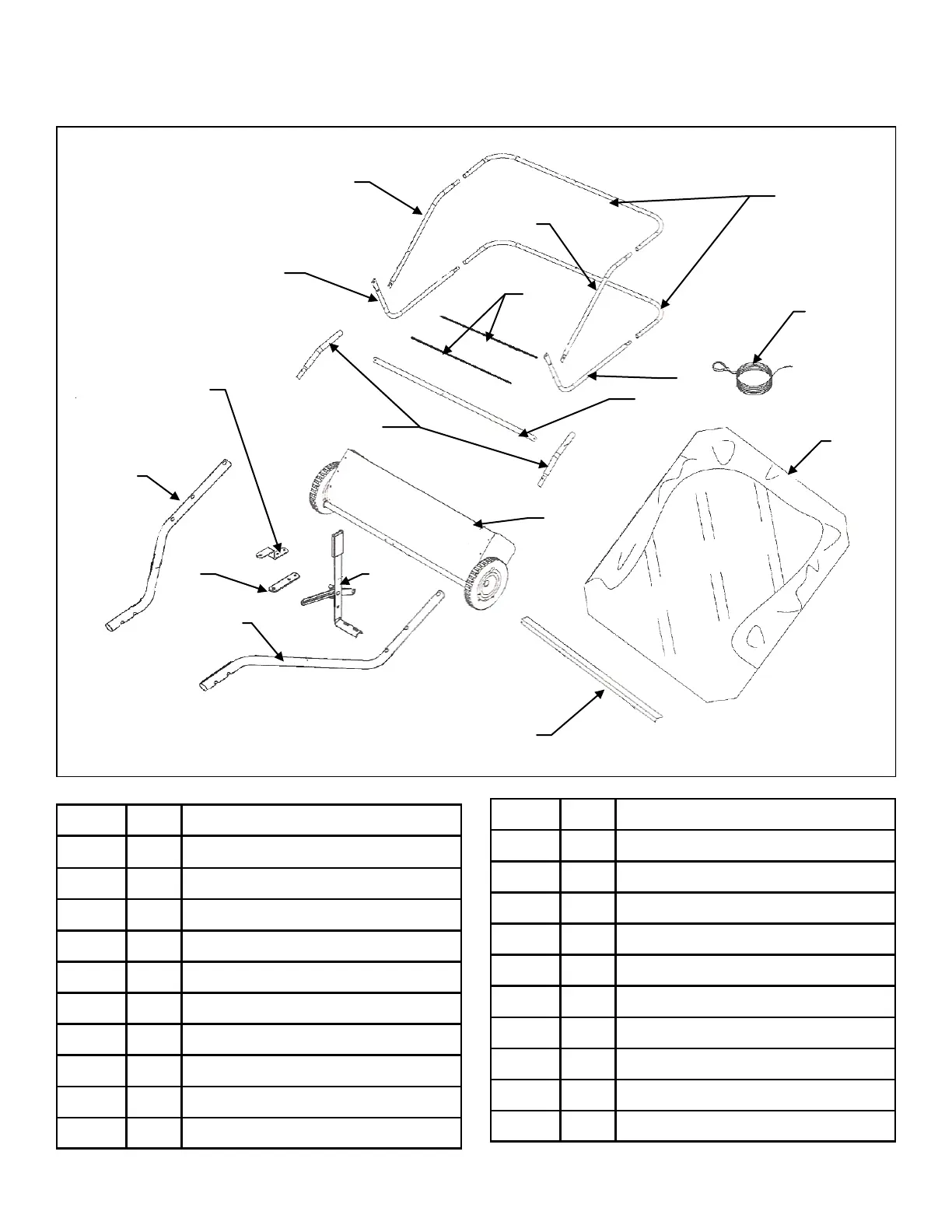

Carton Contents pages 3 & 4
8
9
10
15
14
7
6
17
16
11
5
4
1
2
3
13
12
To Next Page
