EFX 400 Series Assembly Guide 14
5. Secure the stabilizer to the base frame using four ⁵₁₆-inch x ³₄-inch hex head
screws and four ⁵₁₆-inch washers.
Note: If you encounter difficulty aligning the base mounts, loosen the clamp
screws and realign the stabilizer. Tighten the clamp screws once you have
attached the stabilizer to the base frame.

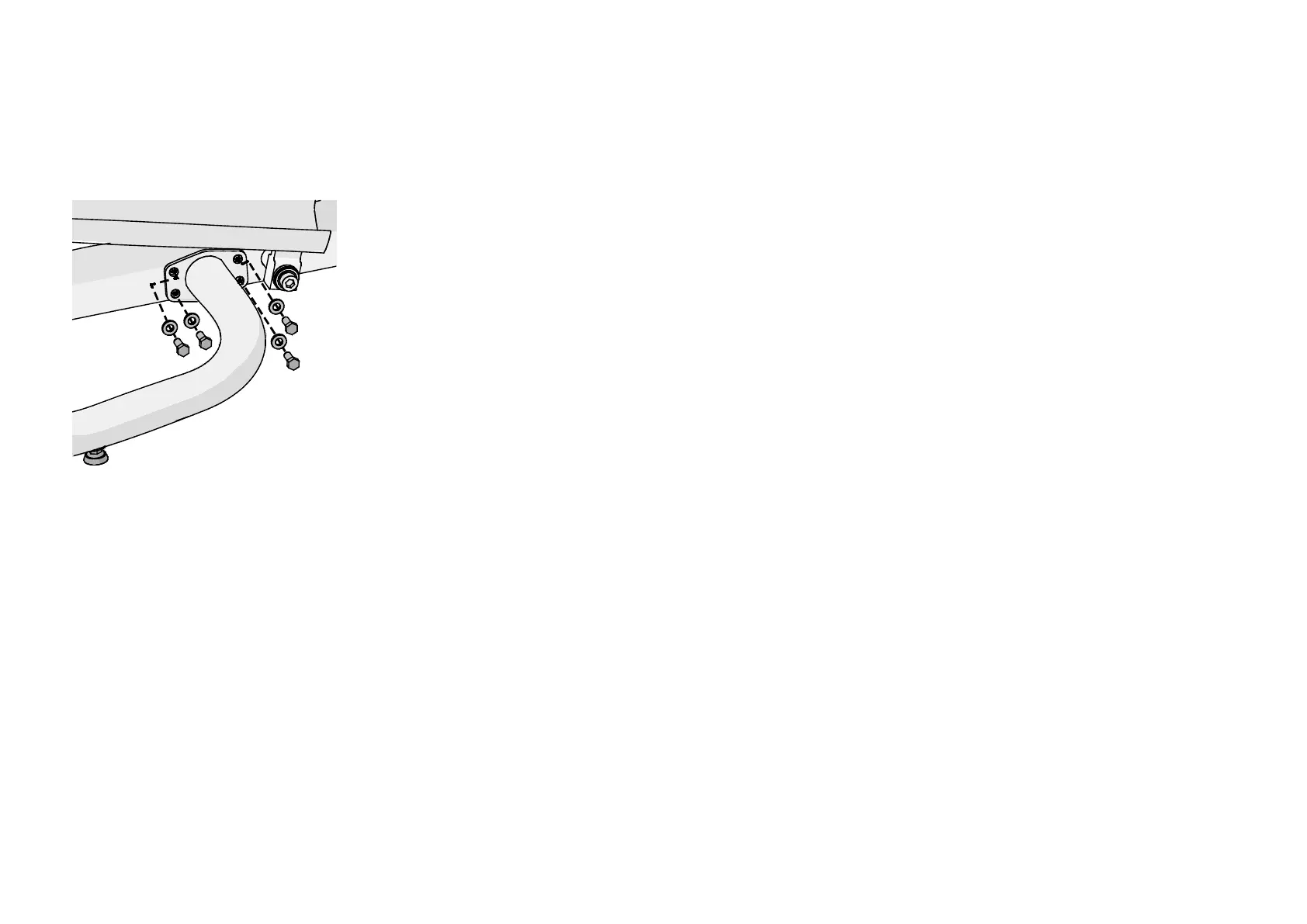

Figure 26: Base frame attachment
6. Secure the stabilizer to the moving arm assembly by fully tightening the clamp
screws.
7. The other stabilizer does not have a data cable. Repeat the remaining steps in
this procedure to attach the other stabilizer.
