8

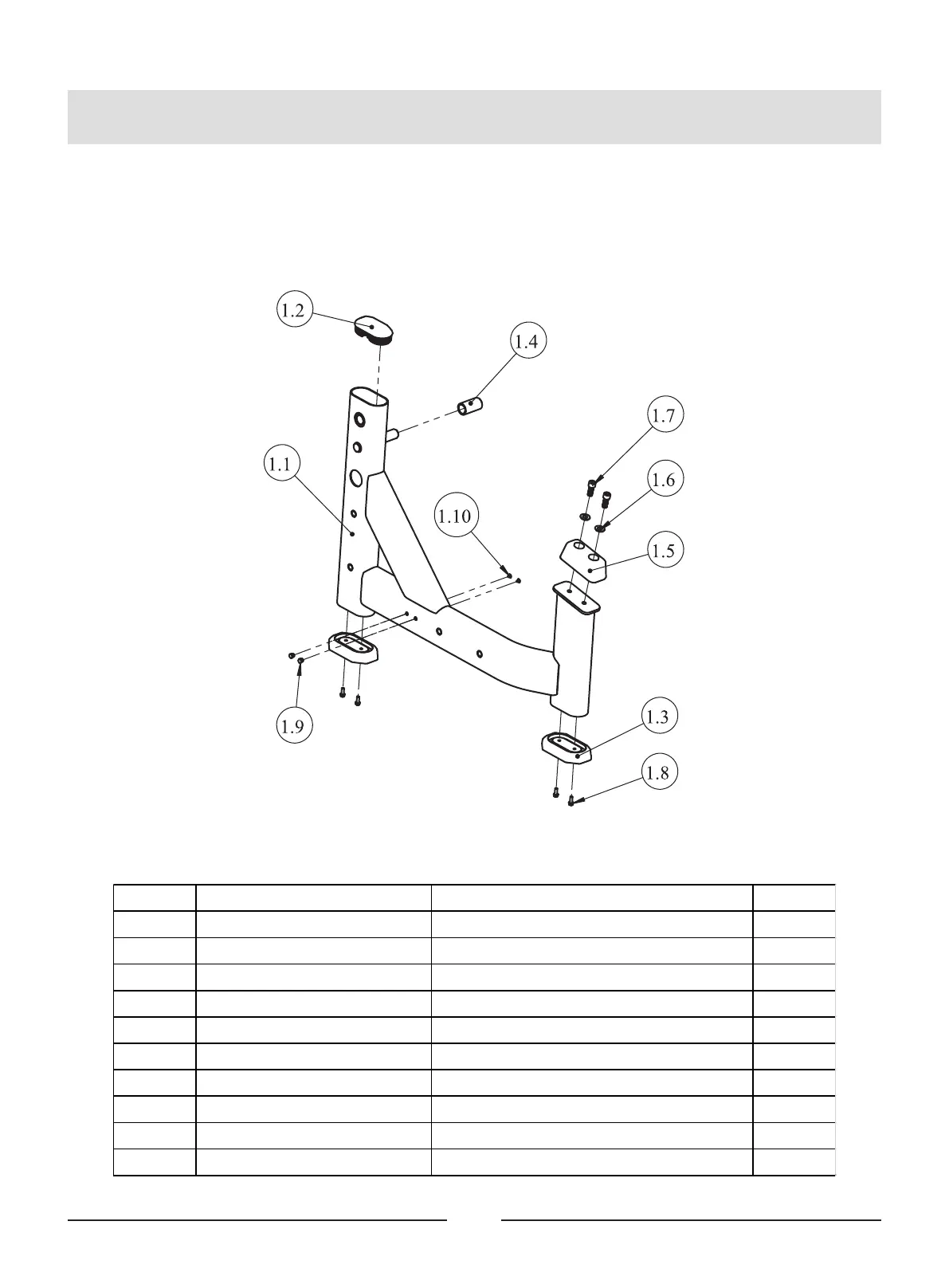

Exploded View and Parts List
Frame I ASSY (fit for DLE)
Item No. Part No. Description QTY
1.1 DLE0100
1.2 PKB3100 Large Elliptical Pipe Plug R60*120 1
1.3 PKB3200 Floor Mat 2
1.4 IN-D10135000 Limit Sleeve 1
1.5 PL380800 Buffer Pad 120*140*52 1
1.6 DQ12DY2B Flat Washer Φ13*Φ26*2 2
1.7 GB70M12*30DY20 Socket Head Cap Screw 12*30 2
1.8
YZGB290.25*20*18DS20 Hex Head Cap Screw 1/4*20 4
1.9 PKB3400 Hole Plug Φ9 2
1.10 PKB3500 Hole Plug Φ6 2
To Next Page
