Page 9
For technical questions, please call 1-888-866-5797.
ITEM 59188
SAFETYOPERATIONMAINTENANCE SETUP
Components and Controls
OFF
OFF
Engine
Switch
Economy
(ESC) Switch
Voltage
Selector
CO Alarm
Light
Output
Overload
Low Oil
Combination
Switch
12VDC Receptacle
12VDC Breaker
Reset Button
Ground
Terminal
120VAC 30A
L5-30R
120VAC
20A GFCI
120/240VAC 30A
L14-30R
Circuit
Breaker
120VAC
Breaker Resets
Parallel Kit
Terminals
Hour Meter
5V USB-A

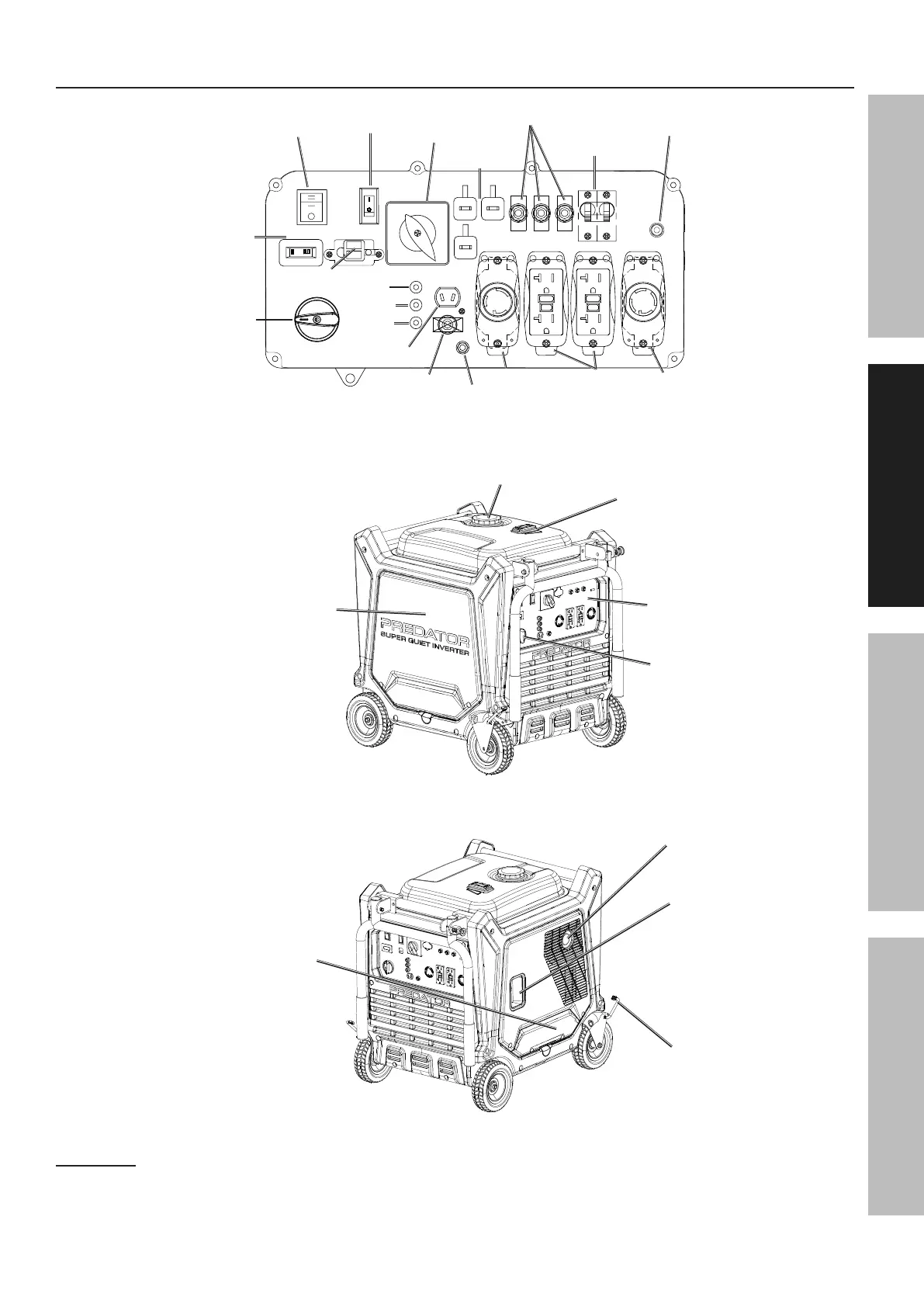

Figure A: Control Panel
Recoil
Handle
Muffler
Wheel
Lock
Fuel Tank Cap
Fuel Gauge
Control
Panel
Air Filter/Spark Plug/
Battery Access Panel
Combination
Switch
Oil Fill
Access
Door
Figure B: Generator Components
WARNING! TO PREVENT SERIOUS INJURY: Follow Parallel Kit instructions for
connection and use of a Parallel Kit (Parallel Kit and instructions sold separately).
Generator must be in 120V/240V mode for parallel function.
