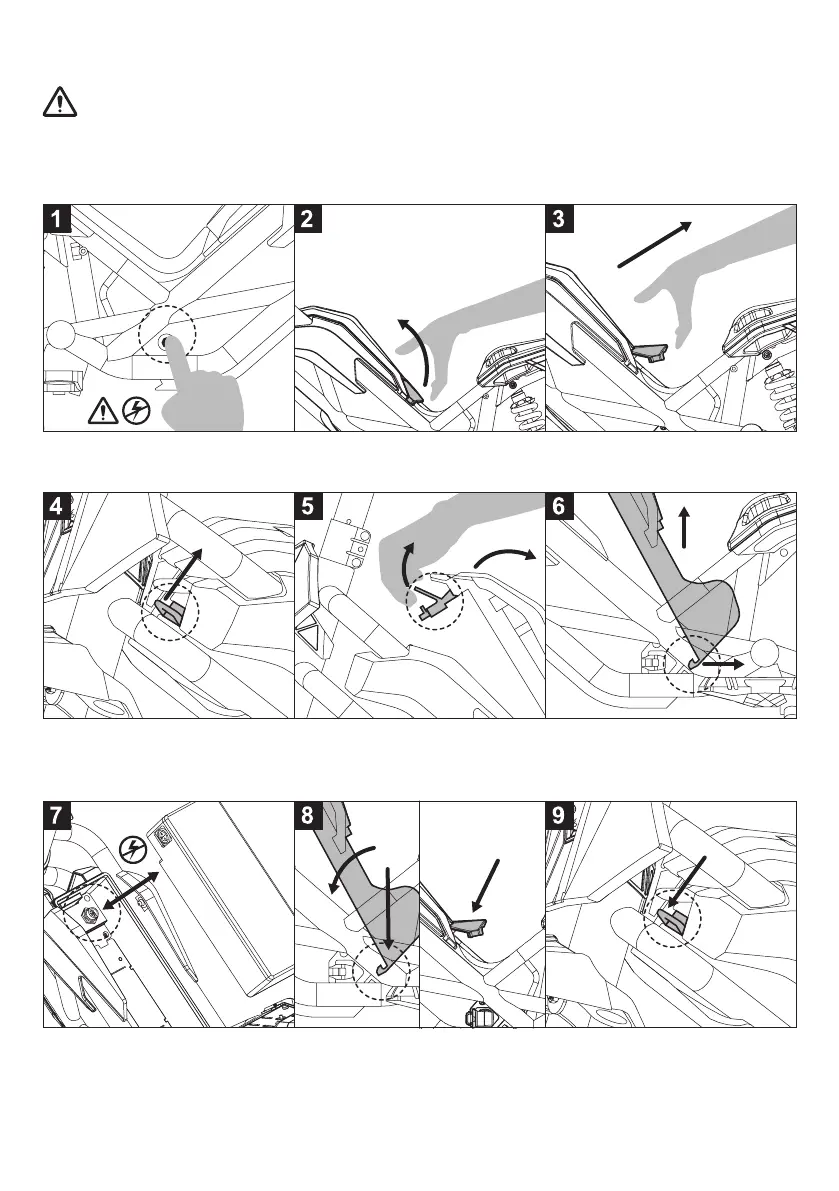

7. Battery removal & installation
Always make sure the power is turned off before taking any process.
The installation method is shown below. Installed properly before use; batteries may be packaged
separately depending on the country of sale. If you have installation concerns, please contact your
local dealer.
Turn off the power before
remove the battery.
Lift up the cover from the edge
above tail light.
Remove the cover as indicated
direction.
Pull up the electrical
compartment safety lock as
indicated direction.
Pull out the safety latch to lift up
the electrical compartment cover.
Remove the electrical
compartment cover as show in
the picture.
Remove the battery unit.
To install, align the connector
before put in the battery.
To install, reverse the step from
2 to 8.
Push down the electrical
compartment safety lock as
indicated direction to nish the
installation.
