1-42 Exploded Diagrams

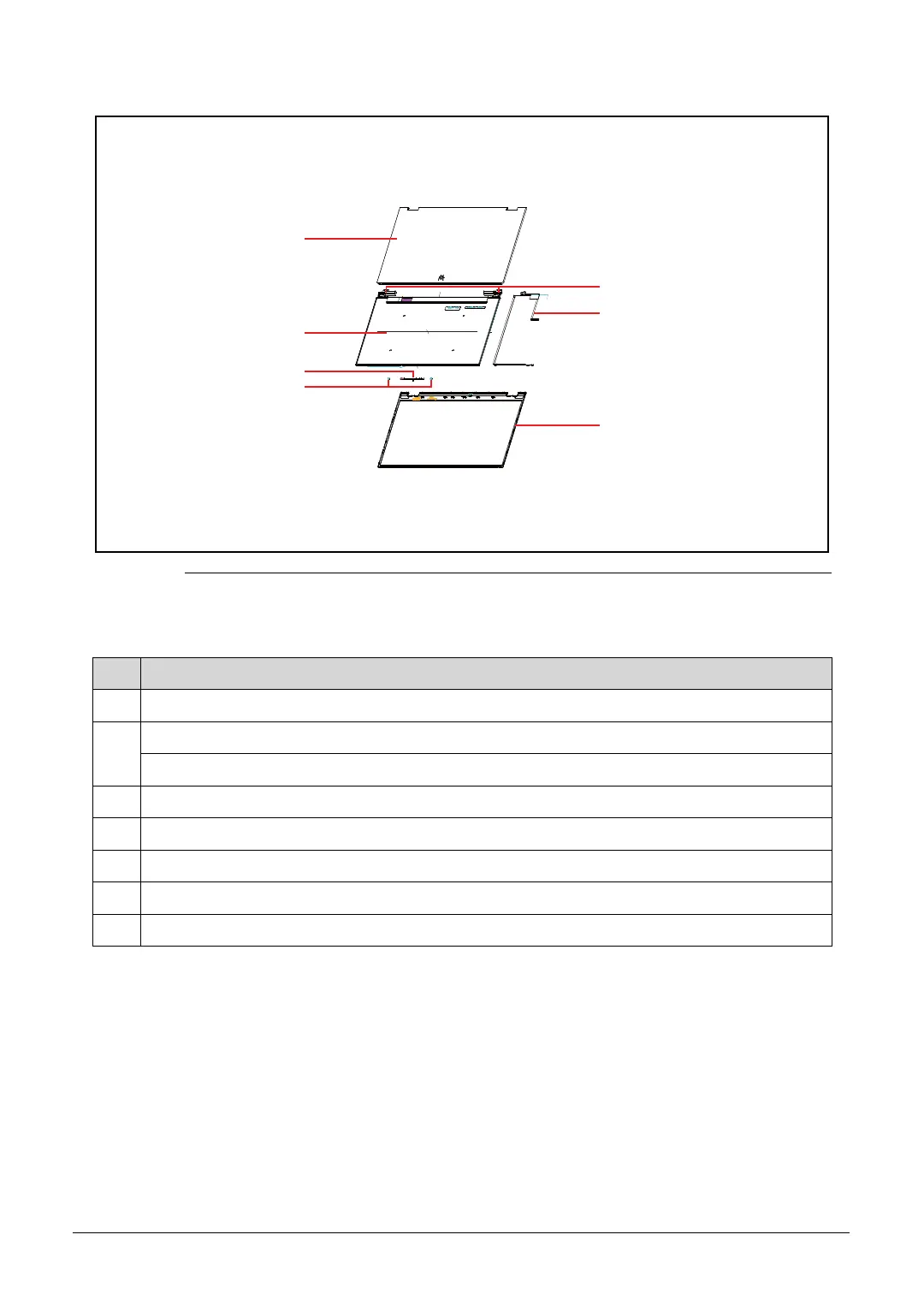

Figure 1-53. LCD Assembly Exploded Diagram
Table 1-3. LCD Assembly Exploded Diagram
No. Description
1LCD Cover
2
LCD Hinge L
LCD Hinge R
3 eDP Cable
4 LCD Panel
5 Camera Module
6 Microphone Rubbers
7 LCD Bezel
7
3
2
1
4
6
5
