INSTALLATION
1. Turn off power to the air handler
2. Remove the existing filter from the track.
3. All forced-air systems have an internal 24 volt AC
power source to which the air cleaner may
be connected without overloading other circuits.
Before connecting your Air Panel, you must locate the 24 volt AC power source.

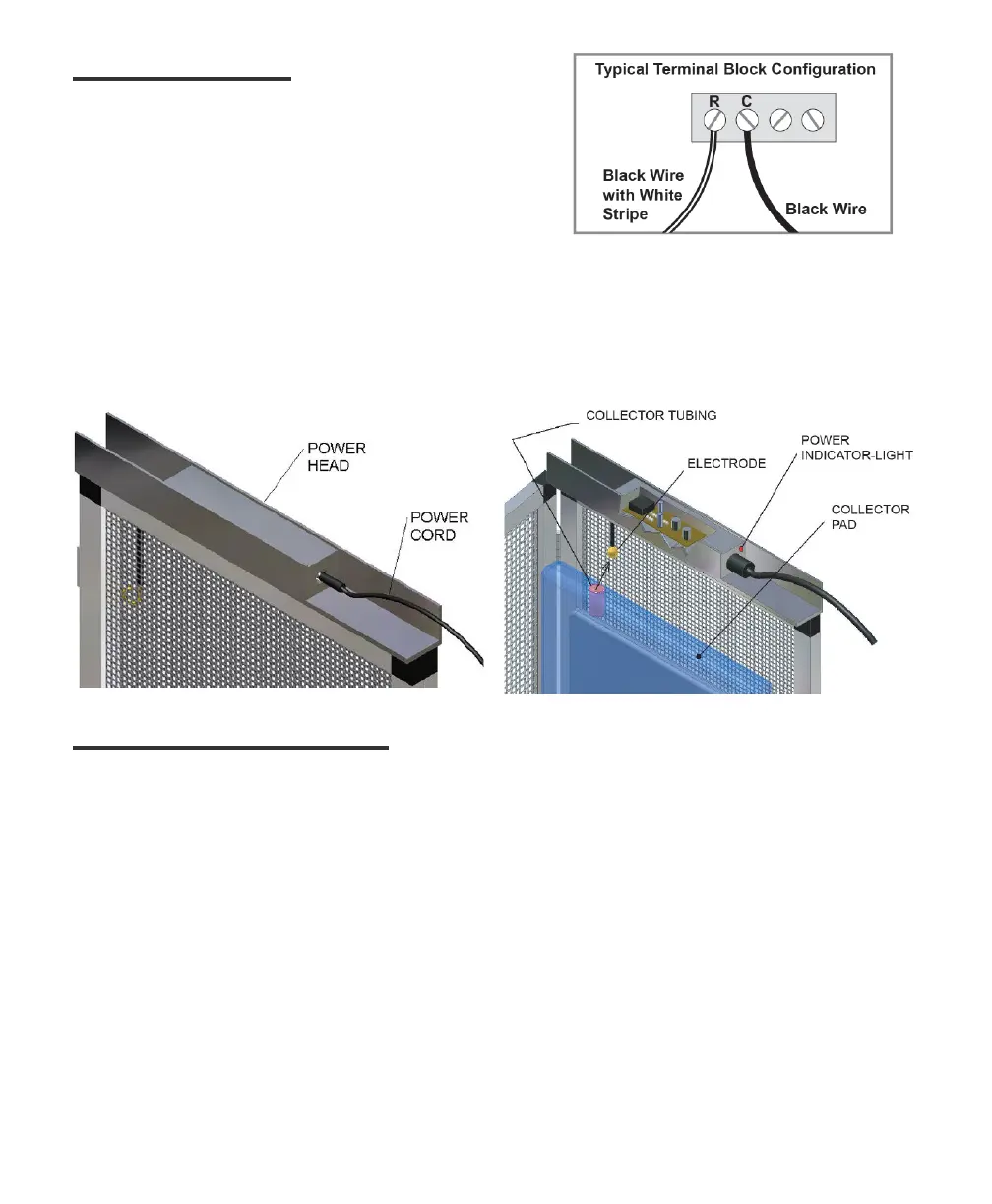

6. After locating the 24 VAC power supply, connect the leads of the power cord illustrated in our
electrical wiring diagram. See diagram (Typical Terminal Block Configuration)
7. Slide the Air Panel into the track and plug the power cord into the power head. (As shown below)
REPLACING THE PAD
1. Turn off the power on the air handler.
2. Open the air handler filter access door.
3. Unplug the 24 volt power-cord from the power head.
4. Remove the Air Panel.
5. Clean heavy accumulated dust on the outside screen with a vacuum.
6. Open the panel and remove the Collector Pad and discard it into a garbage bag to avoid dust.
7. Insert the collector pad by sliding the electrode into the color tubing built into the pad.
8. Close the air panel and plug the 24 volt power cord into the power head.
9. Restore the air handler power.
Note: You may hear a little snapping noise at the beginning. This is normal and is caused by
variations in temperature and humidity. The snapping noise should cease after a few hours
of operation. If the noise persists, contact or your electronic air cleaner dealer.
