7

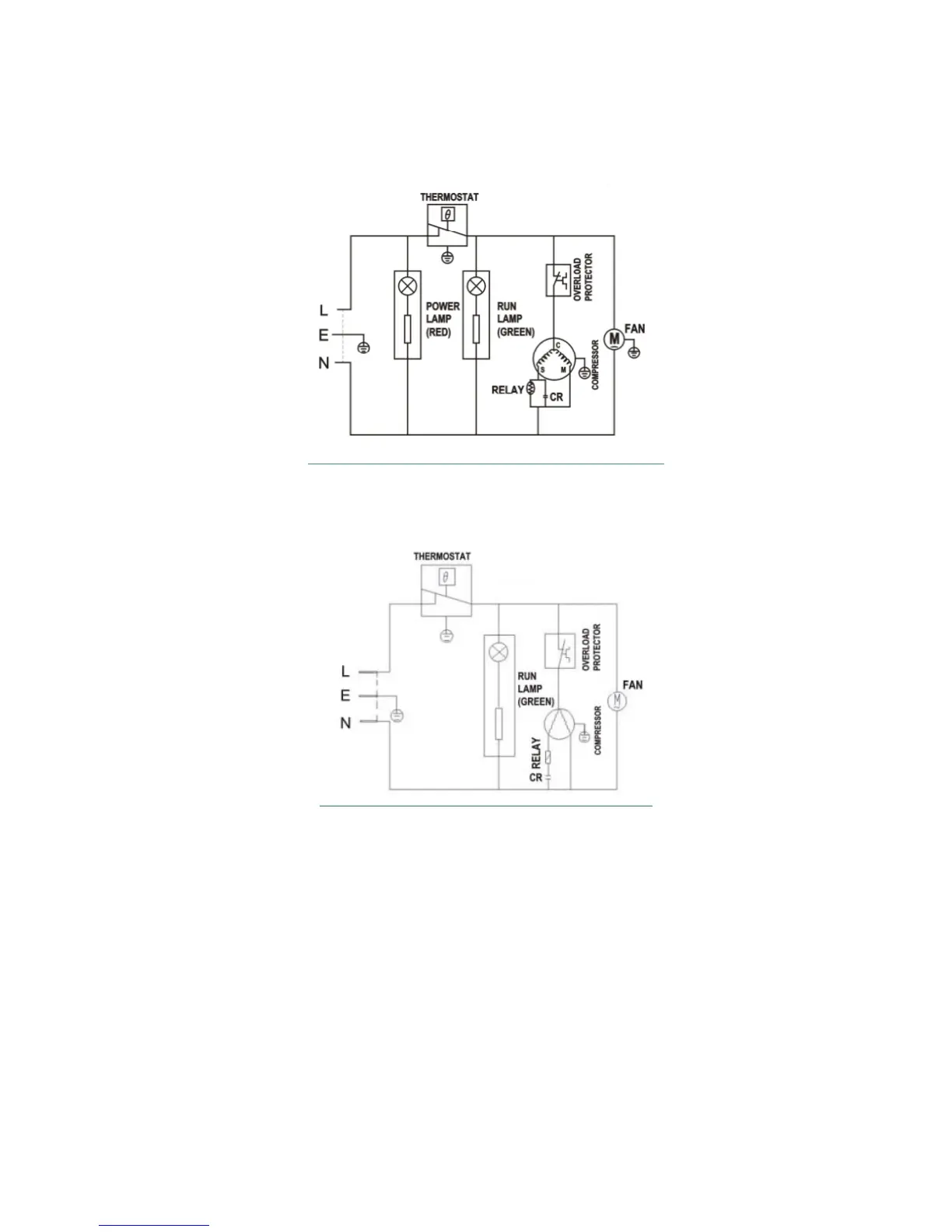

Electrical diagram for
PFR130W/ PFR150W/PFR190W/PFR266W/PFR120FX/PFR152FX
Electrical diagram for PFR82G/ PFR102G/PFR122G
Please note, maybe some units are without RUNNING CAPACITOR marked in red color in
above diagram, according to the used compressor model.
