Premium PRN348HS - Page 13

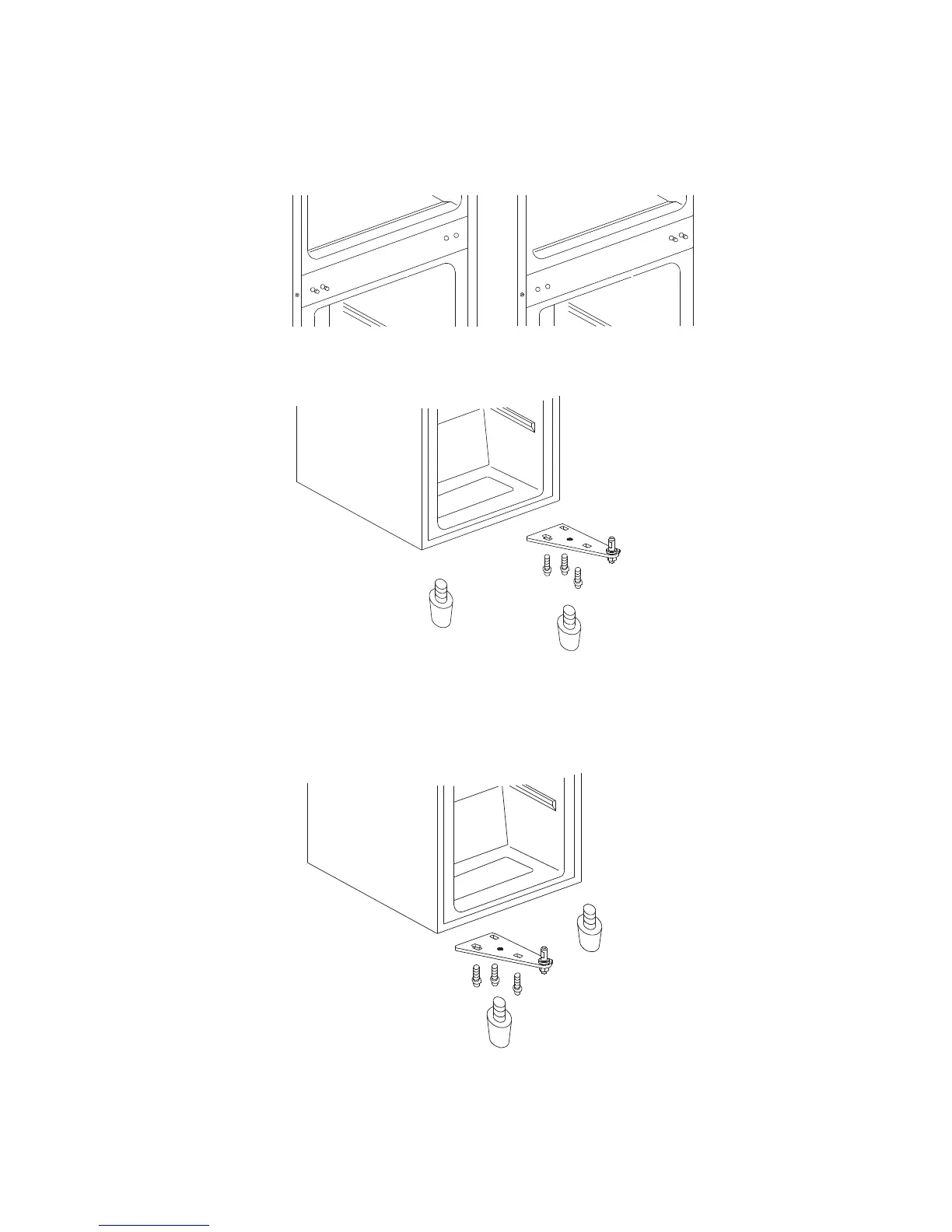

3. Remove the hinge hole cover from the right holes as illustrated and transfer them to the uncover
hole at the left side.
4. Remove both adjustable feet and remove the bottom hinge bracket by unscrewing the bolts.
5. Replace both adjustable feet. Transfer the lower door to the property position. Secure the door's
level, make the bottom hinge pin into the lower hole of the door, then tight the bolts.
12
