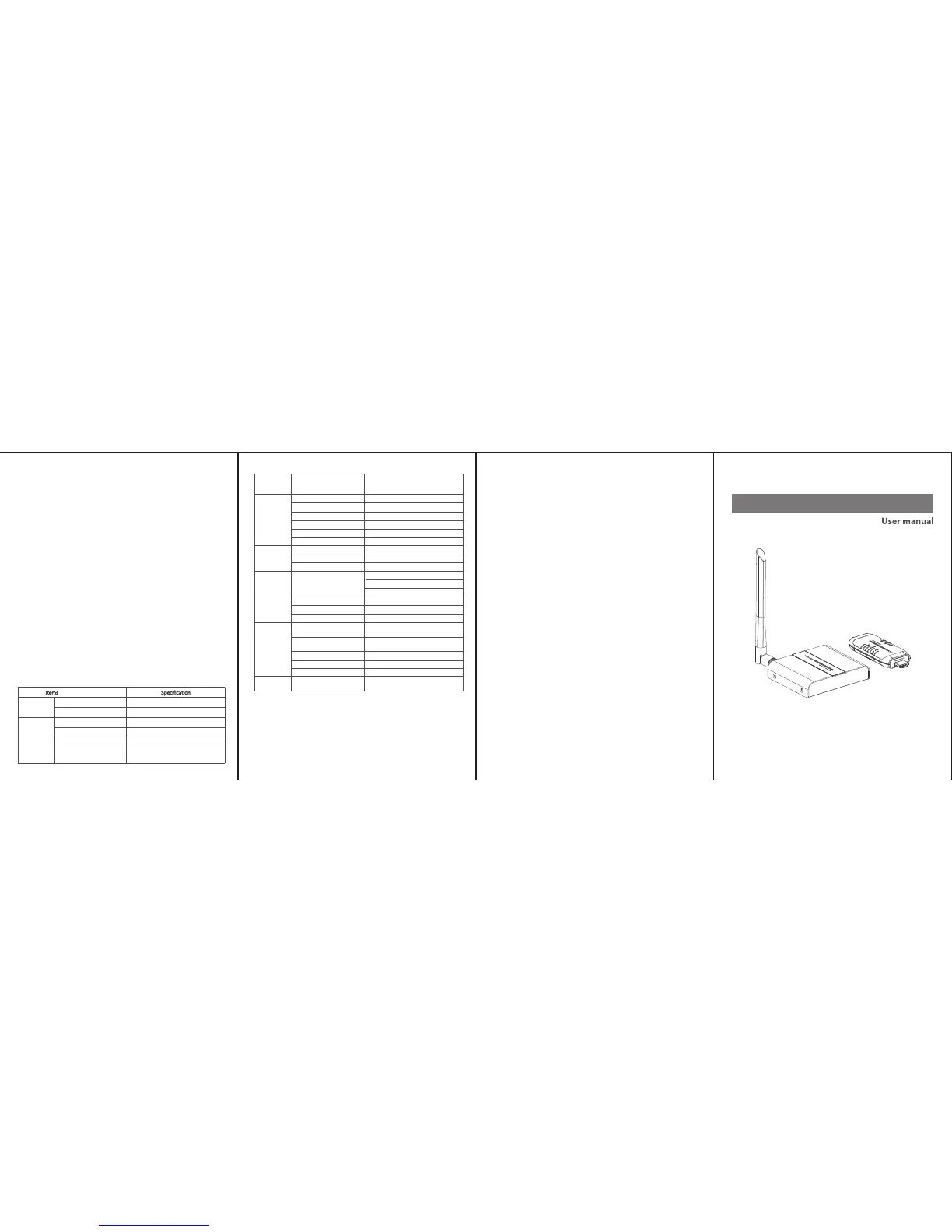

HDMI Wireless Extender
· Specification
· FAQ
Q: Transmitter and receiver can' t be connected with each other?
A: 1)Please check if the wireless connection light on product blinks
properly.
2) Restart the transmitter or receiver.
3) Reconnect the HDMI cable.
Q: The wifi LED indicator of the transmitter is off, but no signal output
on display/monitor?
A: 1) please check if there is an HDMI signal input of sender TX
2) Try to connect the signal source directly to display device to see if
there is signal output from source device or change the signal
source, HDMI cables and tr y again.
Q: Display not fluent and stable
A: 1) Please move the position of sender (TX) and receiver (RX) and make
sure the device is within the signal coverage.
2) Restart the transmitter or receiver.
3) Reconnect the HDMI cable.
4) Remove other wireless signal disturbance and reduce the
obstacle on the way.
Disclaimer
The product name and brand name may be registered trademark of
related manufacturers. TM and ® may be omitted on the user manual.
The pictures on the user manual are just for reference, and there may be
some slight difference with the real products.
We reserve the rights to make changes without further notice to a
product or system described herein to improve reliability, function or
design.
HDMI
performan ce
and inter face
Audio for mats Supp or ted
L/R stereo audio
Maximum t ransfer rate
10.2Gbp s
Input and output DDC signal
5Vp -p(TTL)
Input and output TMDS signal
0.7～1.5Vp-p( TMDS)
Input cable length supported
≤5m(AWG26 HDM I1.3cab le standa rd)
Output cable length supported
≤5m(AWG26 HDM I1.3cab le standa rd)
Transmission method
5G Wireless transmission
Electrostatic protection
of the whole machine
1a Contact discharge level 3
Latency
≤200 ms
Wireless
performan ce
and inter face
Transmission distance
50 Meters
Protection
level
Working temperature
0～40℃
Storage temperature
-20～70℃
Humidit y (no condensation)
0～90%
Material
RX: Iron alloy material + crystal panel
TX: Plast ic
Operati ng
Environment
Dimensi on
Finishing
Grit blas t
Color
Black
Weight
TX：30g， RX：220 g
Body
propertie s
TX: 88.90 (W) x 38.99 (D) x15.1 7(H)mm
RX: 131.6 5(W) x 95(D ) x 19.90(H )mm
1b Air discharge level 3
Standard: IEC61000-4-2
Mean time between failures
(MTBF)
>30000 Ho urs
Reliability
Power
Supply
Voltage/Curre nt
Power consumption
TX:DC5V /1A RX:DC 5V/2A
HDMI
Performance
And Interface
HDCP1.2
HDMI resolution supported
480i@60Hz、480p@60Hz、
576i@50Hz、576p@50Hz、
720p@50/60Hz、1080i@50/60Hz、
1080p@50/60Hz
HDMI comp liance
HDMI1.3
HDCP comp liance
TX＜3 W RX＜5 W
IR
performan ce
and inter face
Support IR pa ssback with
20-60KH z frequency
IR remote control
