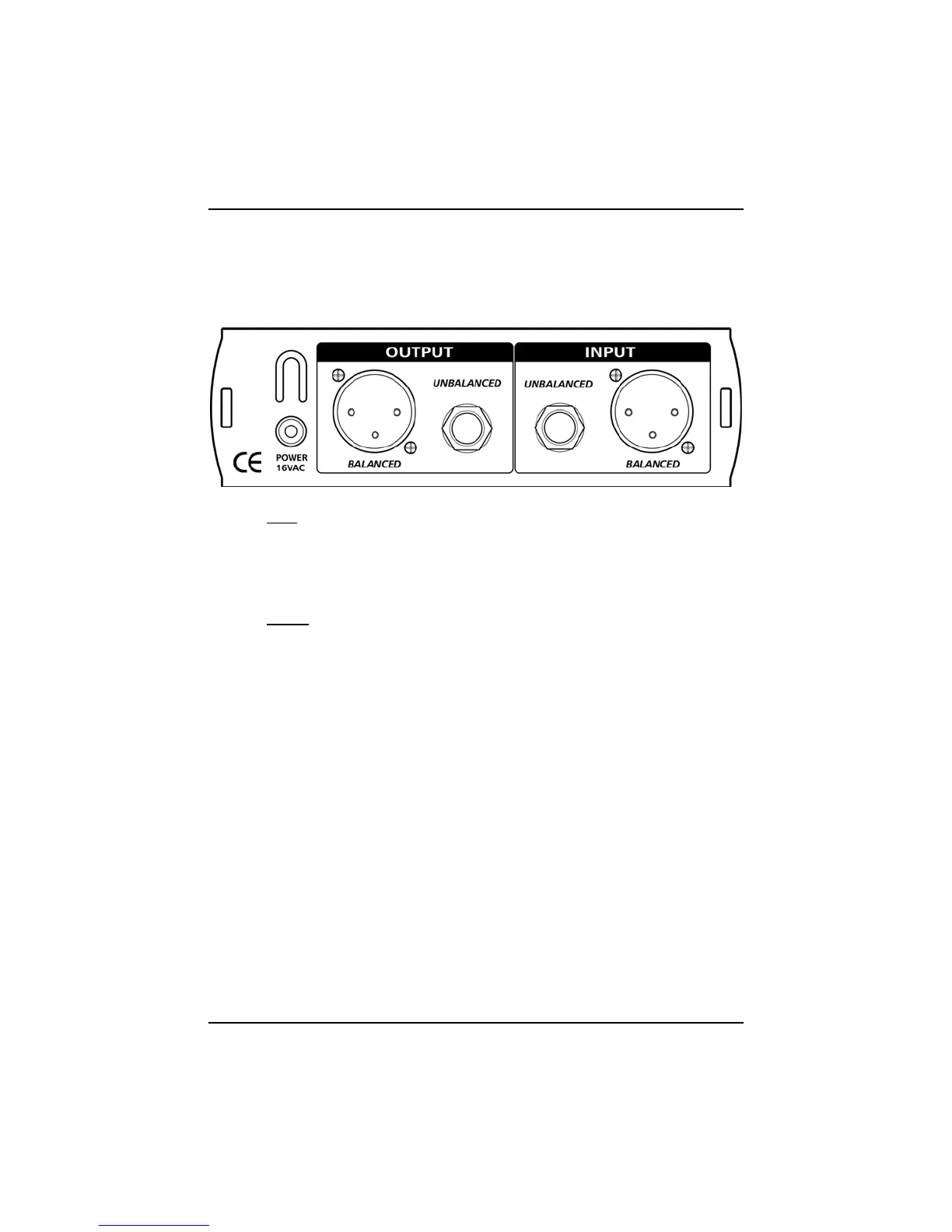

3.1 BACK PANEL BASIC LAYOUT
Input
The input jack accepts balanced/unbalanced tip-sleeve or
tip-ring-sleeve connectors or XLR connectors. The input
can handle up to +24dBu unbalanced levels.
Output
The output jack accepts (balanced/unbalanced) tip-sleeve,
tip-ring-sleeve or XLR connectors. The output will deliver
up to +24dBu in signal level unbalanced.
3.2 APPLICATION GUIDE
The EQ3B can be hooked to another processor, such as the
COMP16 or TubePre in a live or studio environment. We do
recommend that whenever possible, balanced cables be used.
Examples of balanced cables would be XLR or TRS (Tip – Ring –
Sleeve). A balanced cable is preferred because it generally has a
greater level of noise rejection. In other words it is less susceptible
to outside interference.
Use with a Console/Mixer Insert
