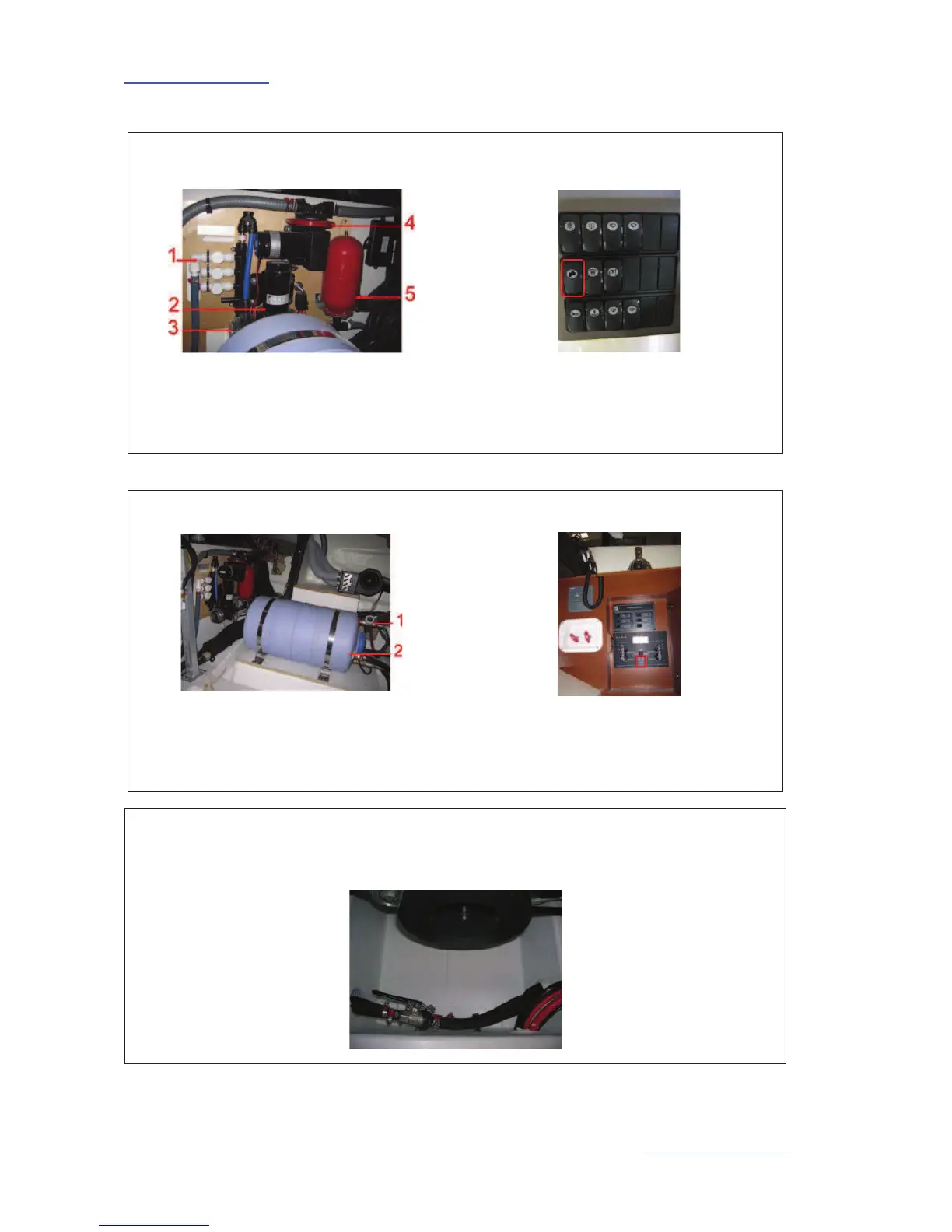

WATER SYSTEM - DISTRIBUTION
Plumbing board
Location: Engine compartment
1. Supply - Tank
2. Water pump 12V
3. Water unit filter
4. Bilge pump 12V
5. Expansion tank
Water unit - Control
(Inside wheelhouse)
Water heater
Operation: The water heater works off the
starboard engine system + on 220V.
1. Thermostatic mixer valve
2. Water heater 25L 220V
Location: Engine compartment
Control: Electrical panel
Supply valve - Water heater / Starboard engine
(allows to isolate the hot water circuit of engine)
Location: Engine compartment
