DETAIL OF 12 V DC ELECTRICAL CIRCUIT BREAKER CONTROLS
OPERATION
1. Activate the locking: This operation enables the battery breaker control switches to be
operated.
2. To activate the button button of cuts batteries. The battery breaker is OFF when the indicator
light is out. The battery breaker is ON when the green indicator light is lit.
3. To put out cup batteries, press on the button button.

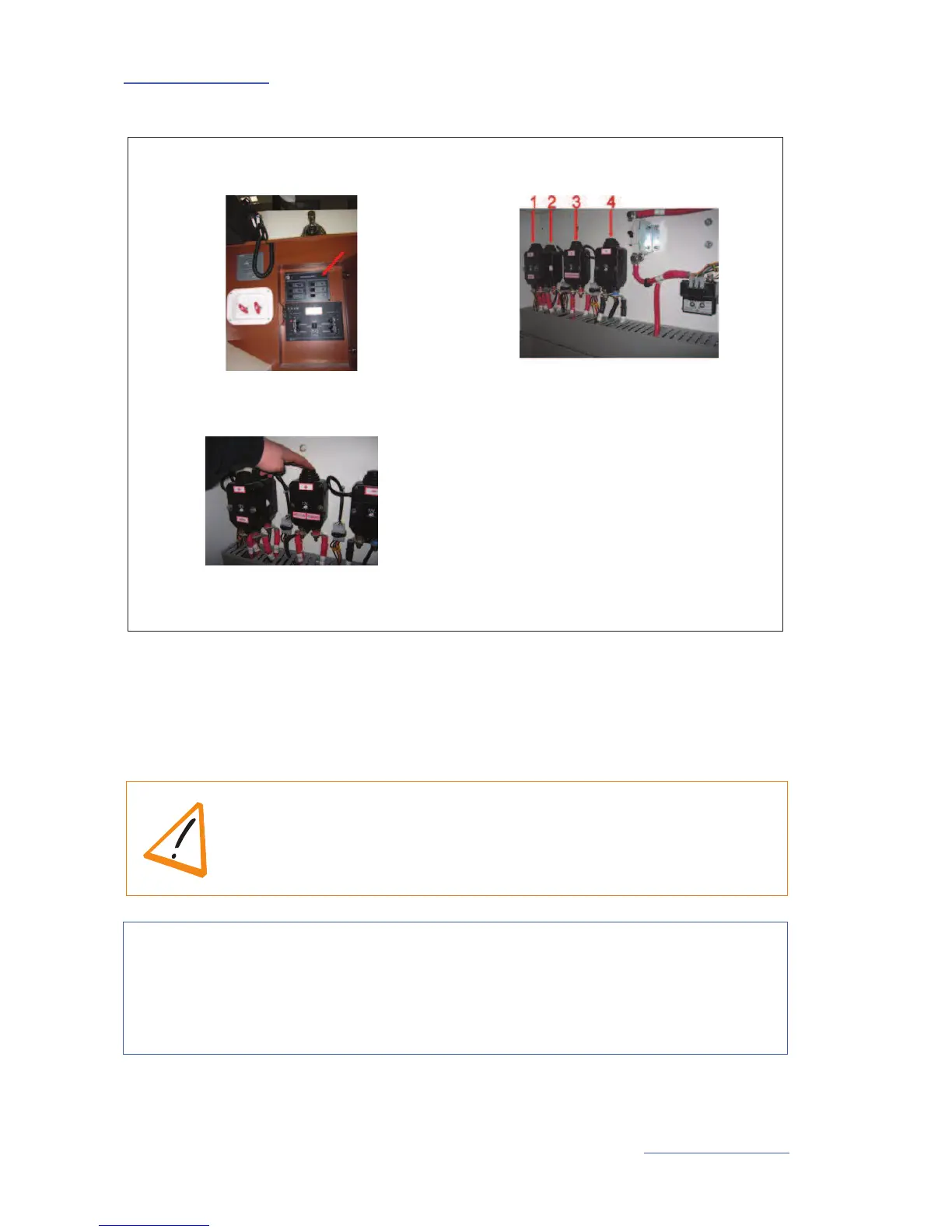

Location - Pilot seat - Wheelhouse Electrical battery switches 12V -
Location: Technical room
Electrical battery switches
Manual operation
In case of power failure, it is possible to initiate
the battery switch manually by pressing the
top.
1. Positive - Service
2. Positive - Port engine
3. Positive - Starboard engine
4. Negative terminal - Common
WARNING
- Never work on a live electric fitting.
- Do not touch battery terminals, risk of electric shock.
PRECAUTION
- Switch off the electrical system with the battery switches when the boat is unattended.
- Never leave the vessel unattended with the mains electricity switched on.
- Turn off the electrical system with the battery switches and circuit breakers before gaining
access to the rear of the electrical panels.
- Check the level of maintainable lead batteries.
