78/112

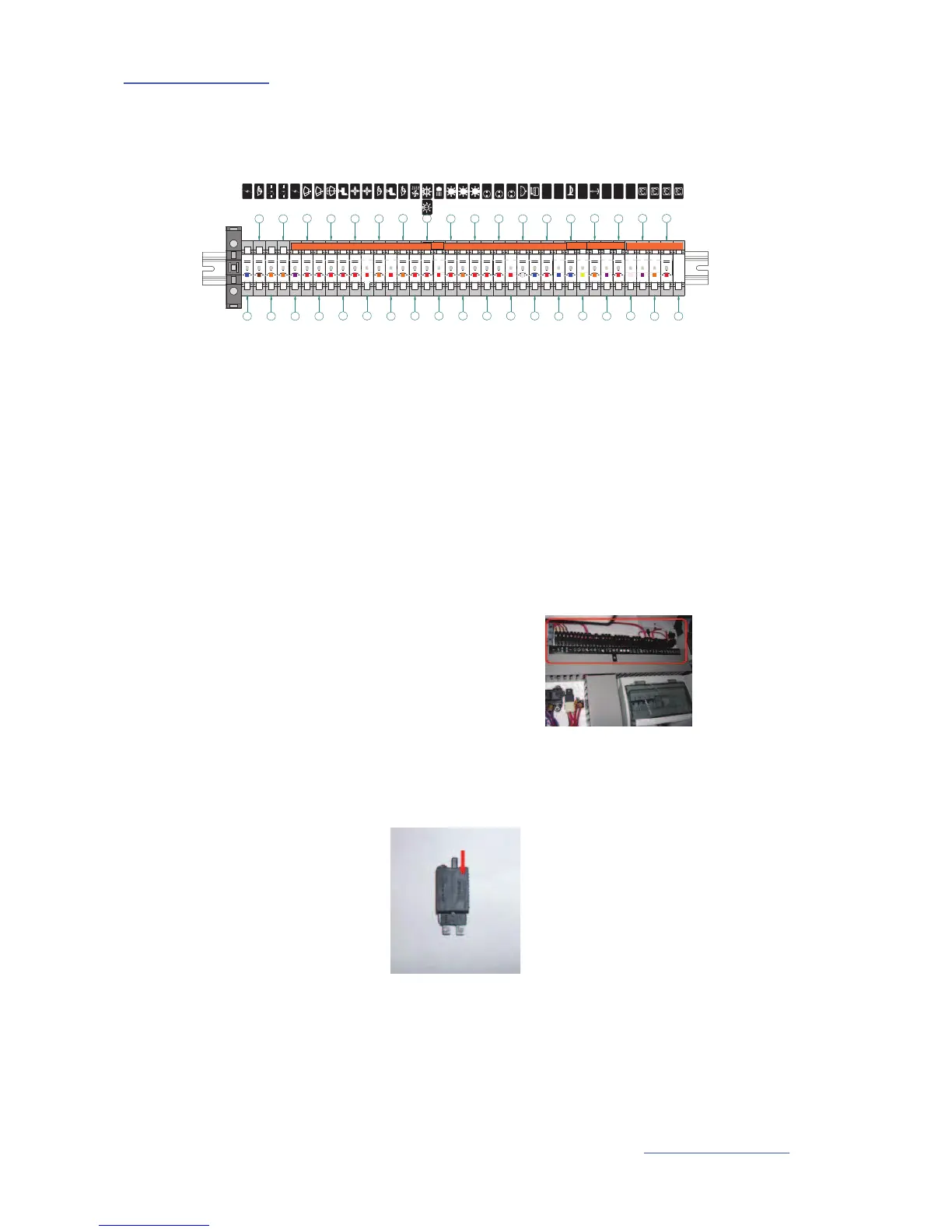

Circuit breakers 12V
Location: Technical room
1. Supply - Battery switch
2. Aft electric bilge pump
3. Relay supply - Shunt - Starboard
4. Relay supply - Shunt - Port side
5. Relay box: Electronic - Horn - Demister
6. Port windscreen wiper
7. Starboard windscreen wiper
8. Windscreen washer
9. Water unit
10. Refrigeration unit - Galley
11. Refrigeration unit - Fly
12. Centre bilge pump
13. Pump for deck washing
14. Shower pump
15. Demister
16. Navigation lights
17. Deck searchlight
18. Lighting: Exterior - Saloon - Engine
compartment
19. Lighting: Galley - Engine compartment -
Technical room
20. Lighting: Aft cabin - Forward cabin -
Head version
21. 12V socket - Steering station
22. 12V socket - Cabins
23. 12V socket - Swelling
24. Electric toilet
25. Masher (Tank drain pump - Sewage)
26. Hifi
27. Inverter - TV
28. Horn
29. Flaps
30. Windlass
31. Solenoid - Gas (US)
32. VHF
33. Auto pilot
34. HUB Seatalk
35. Depth sounder
36. GPS - Chart plotter
37. Radome
OPERATION
Circuit breakers are resettable.
Press the tab manually on black back on the road circuit (see photo)
ARMED BREAKER / BREAKER DISARMED
1
HIFI 1
$872
3,/27
1
1
2
3
1
1
1
2
12V
12V
12V
1
2
3
WC
1
1
SEA
FLAPS
VHF
TV
1
LPG
LPG
2
1 3 5 7
9 11
13
15 17 19 21 23 25
27
29
31
33
35 37
2 4
6
8 10 12
14 16
18 20 22 24 26 28
30
32
34 36
