Prestige 400 - Page 22

18/108

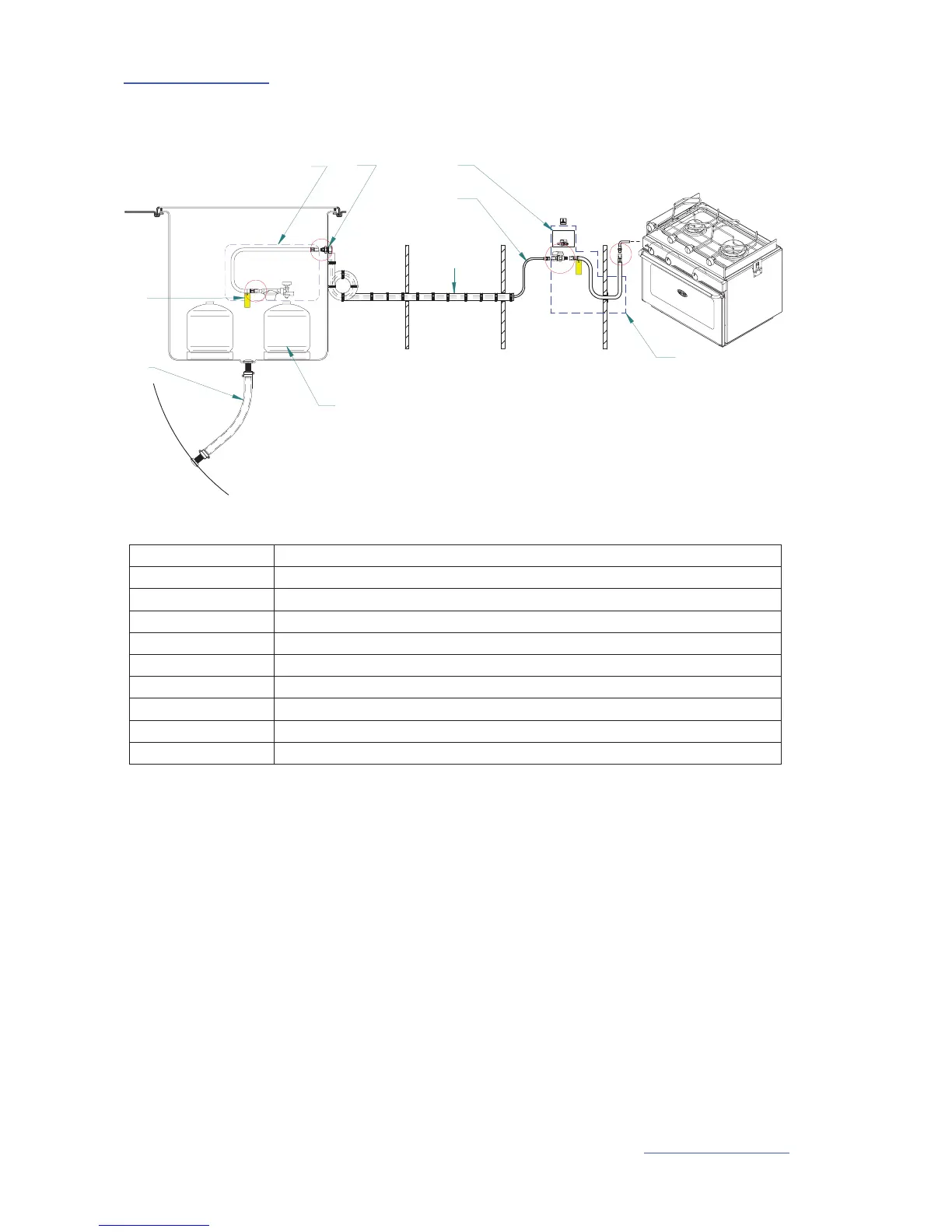

SCHEMATIC DIAGRAM GAS - VERSION EUROPE
REF Designation
1 Regulator valve
2 Gas cylinder
3 Drain
4 Connection kit gas bottle
5 Rubber washers
6 Pictogram
7 Connection kit gas copper
8 PVC girdled sleeve
9 Gas appliance connection kit
gaz
GAZ
8
3
2
4
1
6
9
7
5
