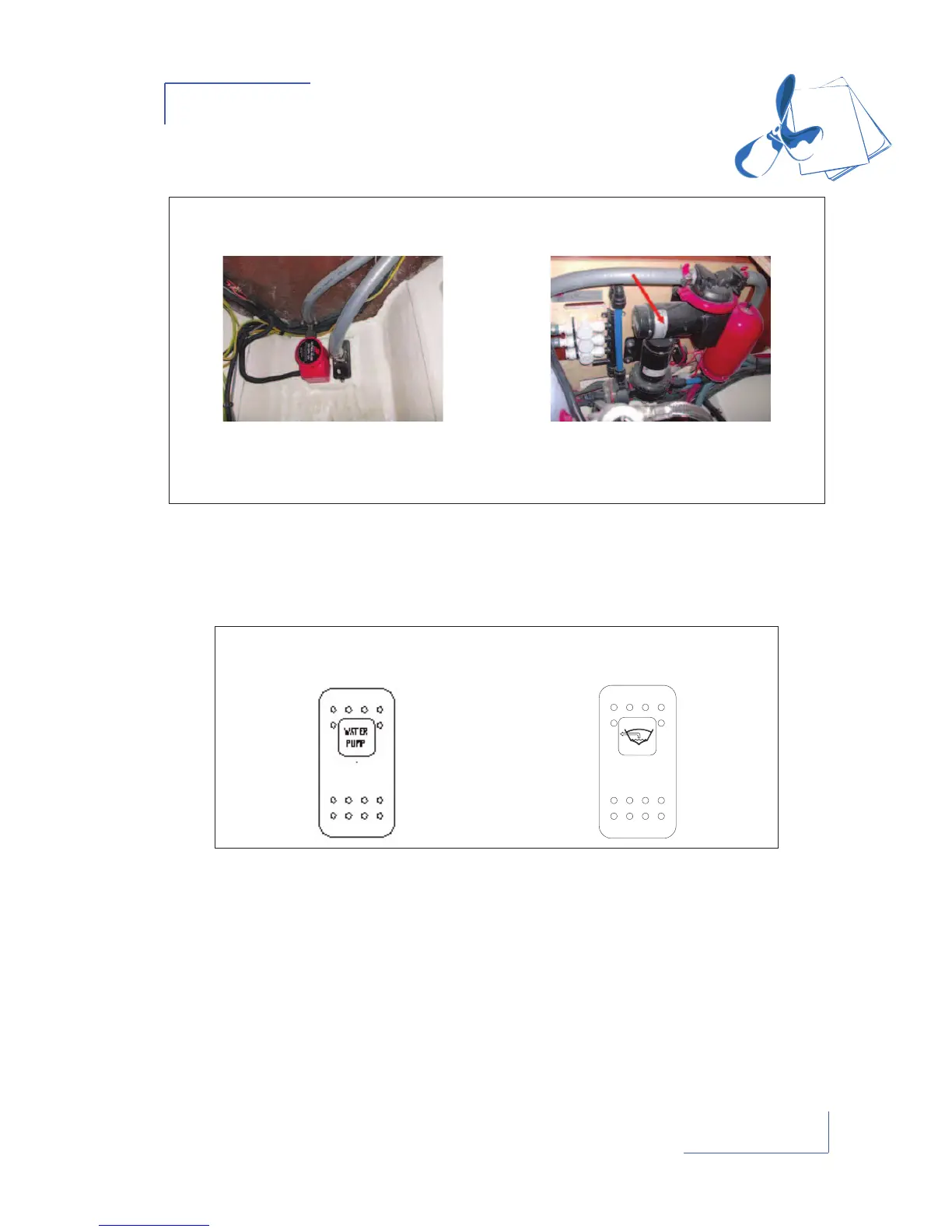

ELECTRIC BILGE PUMPS
You can energize the electric bilge pump from the electrical panel.
The WATER PUMP switch energizes all the electric bilge pumps connected after the battery
cut-out switch: They are energized in 'automatic' mode.
To run a bilge pump, press on the required bilge pump switch.
On the electrical panel - three possible positions : OFF / Automatic / Mechanically operated.
In the automatic position each pump is set off automatically by a trip switch located in the sump
area or in the bottom of the hull.
Electric bilge pump 12V -
Engine compartment
Electric bilge pump 12V -
forward part
Location: Passageway
Capacity: 38 litre / minute Capacity: 15 litre / minute
Operation:
The electric bilge pumps are connected to the 12V service circuit. To enable operation the
12V circuit must be activated by turning on the battery switches.
Control WATER PUMP
Control
'Electric bilge pump'
2
AUTO
SAFETY
