68/108
DETAIL OF 12 V DC ELECTRICAL CIRCUIT BREAKER CONTROLS
OPERATION
1. Insert the locking key in the panel. This operation enables the battery breaker control
switches to be operated.
2. Operate the push button.
The battery switch is OFF when the red indicator light is on.
The battery breaker is ON when the green indicator light is lit.
Manual operation: It is possible to press on the top of the battery to cut the start-up in case of
electrical problem.

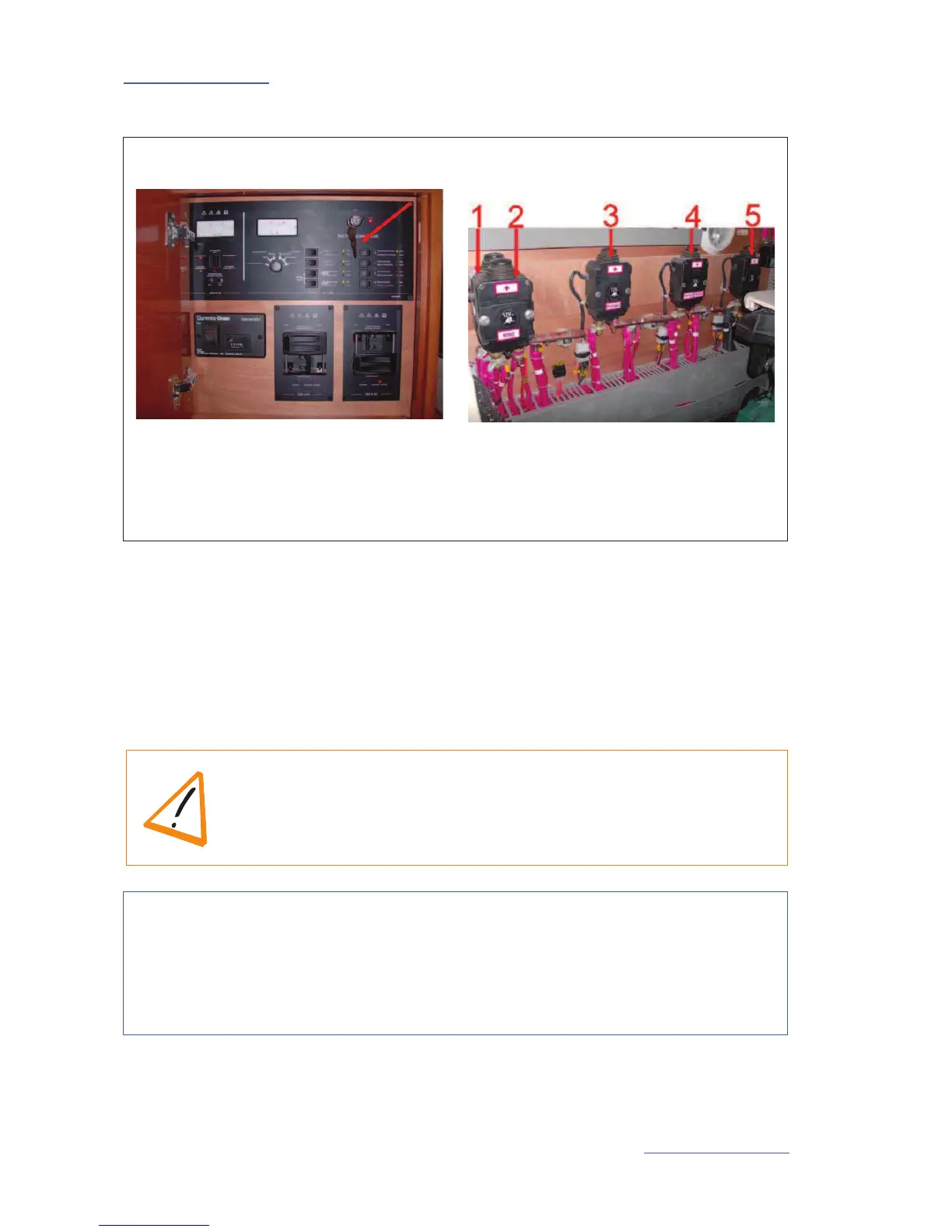

Location - Saloon cupboard Electrical battery switches 12V -
Location: Engine compartment
1. Positive - Port engine
2. Positive - Service
3. Positive - Power
4. Positive - Starboard engine
5. Negative terminal - Common
WARNING
- Never work on a live electric fitting.
- Do not touch battery terminals, risk of electric shock.
PRECAUTION
- Switch off the electrical system with the battery switches when the boat is unattended.
- Never leave the vessel unattended with the mains electricity switched on.
- Turn off the electrical system with the battery switches and circuit breakers before gaining
access to the rear of the electrical panels.
- Check the level of maintainable lead batteries.
