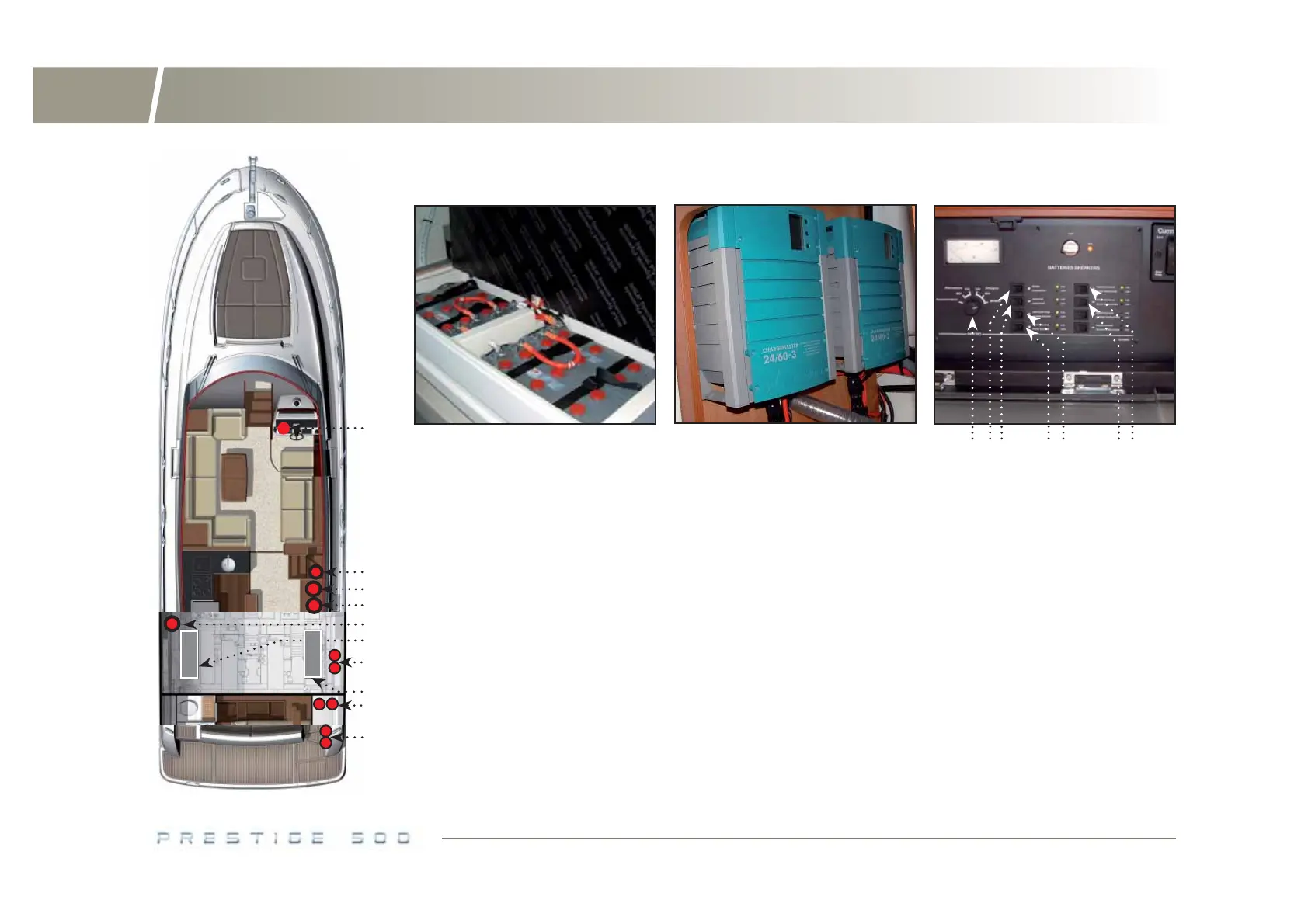

24 V circuit location - Batteries - Electrical panel
2
1 - Ammeter.
2 - Domestic positive pole.
3 - Common negative pole.
4 - Starboard engine.
5 - Port engine.
6 - Bow thruster positive cut out.
7 - Bow thruster negative cut out.
BATTERY CHARGERS24 V ON BOARD
POWER UNIT
31
ELECTRICAL PANEL
24 V CUTOUTS
1 - Dash board.
2 - 230 V devices circuit breakers.
3 - Boat and engine cutouts.
4 - Electrical panel.
5 - 24 V / 230 V inverter.
6 - 24 V service power unit.
7 - Automatic breakers of the shore power sockets.
8 -
Engine 24 V batteries.
9 - Battery chargers.
10 - Shore power sockets.
45 67
1
2
3
5
6
7
10
4
8
9
