76

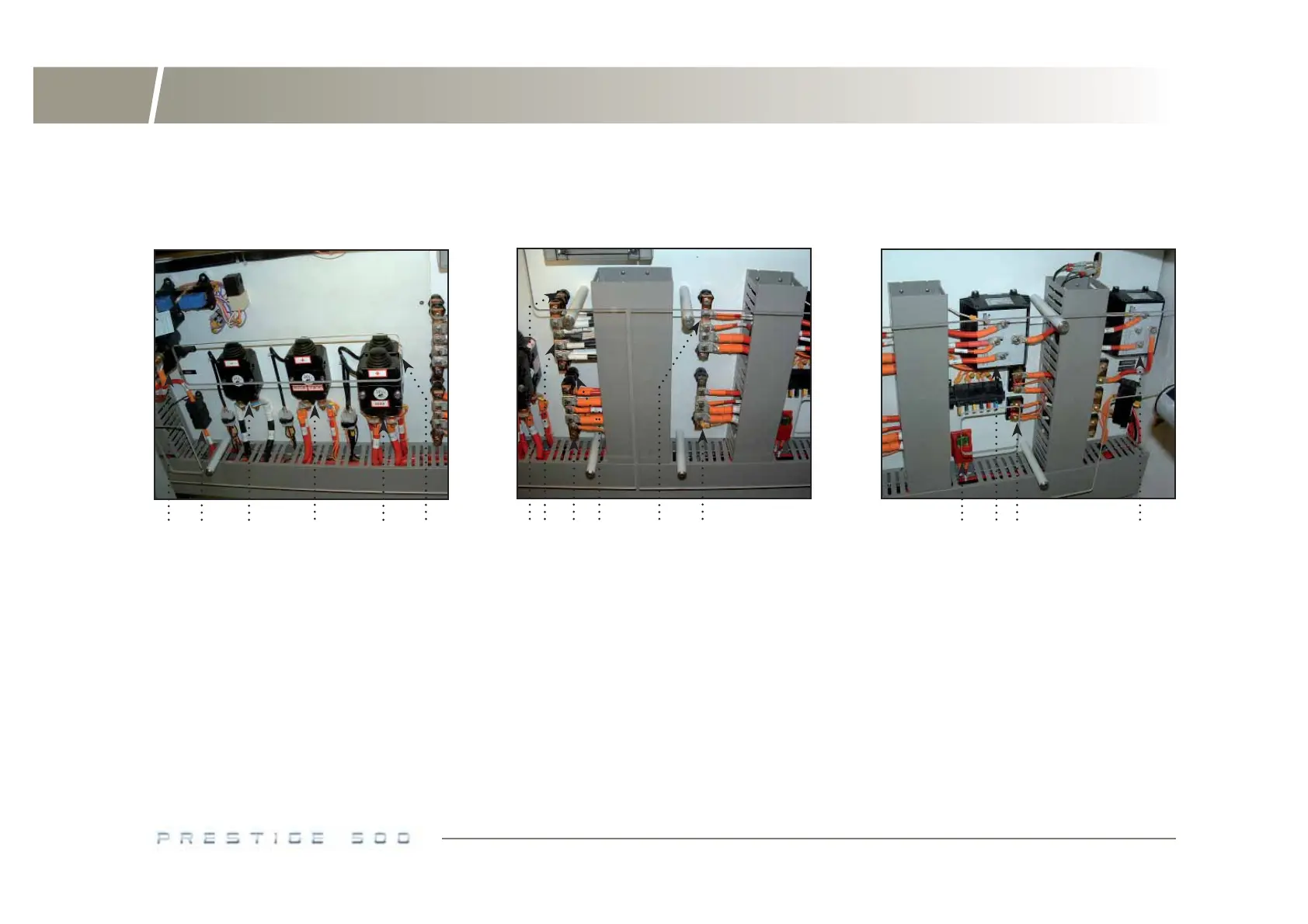

Technical room electric boards
FRONT ELECTRIC BOARD
TECHNICAL ROOM
CENTRAL ELECTRICAL BOARD
TECHNICAL ROOM
AFT ELECTRIC BOARD
TECHNICAL ROOM
1 - Bow thruster battery park charger fuse.
2 - Starboard load divider.
3 - Load shunts.
4 - Port load divider.
1 - Negative bus bar before cut-out.
2 - Negative bus bar after cut-out.
3 - Positive bus bar after cut-out.
4 - Negative bus bar before cut-out.
5 - Port side engine bus bar before cut-out.
6 - Starboard engine bus bar before cut-out.
1
1 - Relay - coupling of engine battery banks.
2 - On board fuse.
3 - Battery switch - negative.
4 - Starboard engine main switch.
5 - Board main switch.
6 - Port engine main switch.
2 3 5
31 4 6
4
6
2 4
1 432
