PREVOST X3-45 COMMUTER User Manual

MI15-24B / Page 8 / 14
QF7720956 rev3>
RING CABLE LUGS

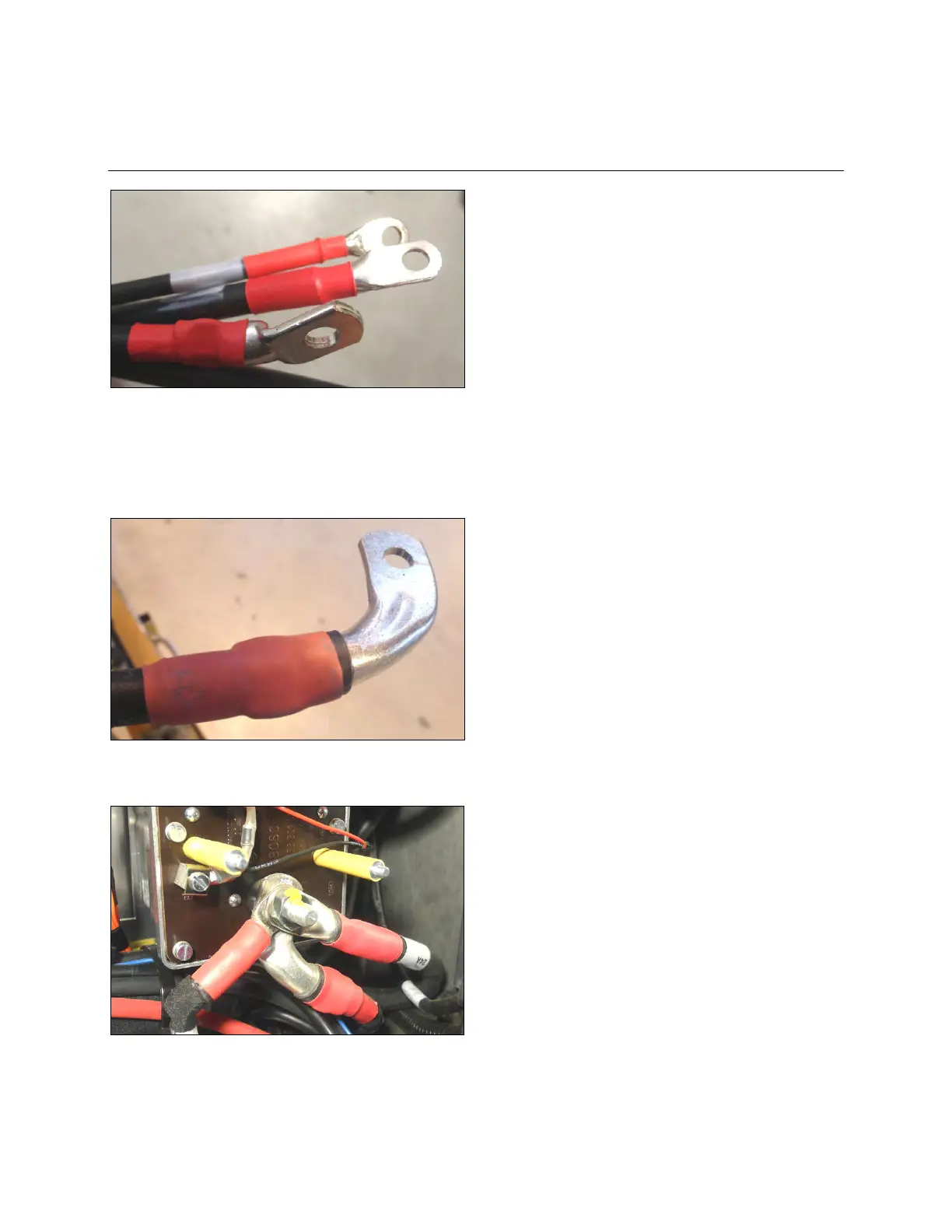

Figure 16: Cable lugs must be closed type, crimped or welded.
• Ring cable lugs should not be distorted.
• Ring cable lugs should not suffer strains that can deform.
• Ring cable lugs must be installed with smooth washers and nuts to prevent damage to the cable lug
when tightening.
Figure 17: Power cable shouldn’t be bent just next to the cable lug. Angled cable lugs are used to avoid
mechanical stress.
Figure 18: When several terminals are connected on a single stud terminal, the largest cable lug must be
placed first, followed by the second larger and so on. Cable lugs should be distributed around the stud
terminal in a way that no cable lug is distorted when tightening the nut.

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
