4. To install the back, align the Knock-Down (KD)
sleeves in the back with the KD brackets in the
chair base, slide the back down on the base.
See fi gure 4. Push down on the top of the back
to lock the back into position. You will hear a
click from each side of the chair to ensure the
back is locked in properly.
5. Plug in the Lumbar and Headrest connectors,
See fi gure 3. If your model is Headrest Only,
you only need to plug in the Headrest.
6. If your model has back wings, align the KD
sleeves, and slide the wing down into place,
see fi gure 5. Please note there is a label on
the brackets. Please assemble them as indi-
cated (A-A and B-B).
7. Connect the Power Transformer cable to the
corresponding plug coming from the back of
the chair. See fi gure 3.
8. Connect the Power Cord into the Power Trans-
former. See fi gure 3.
9. Connect the power cord into an electrical outlet
near where the chair will be used.

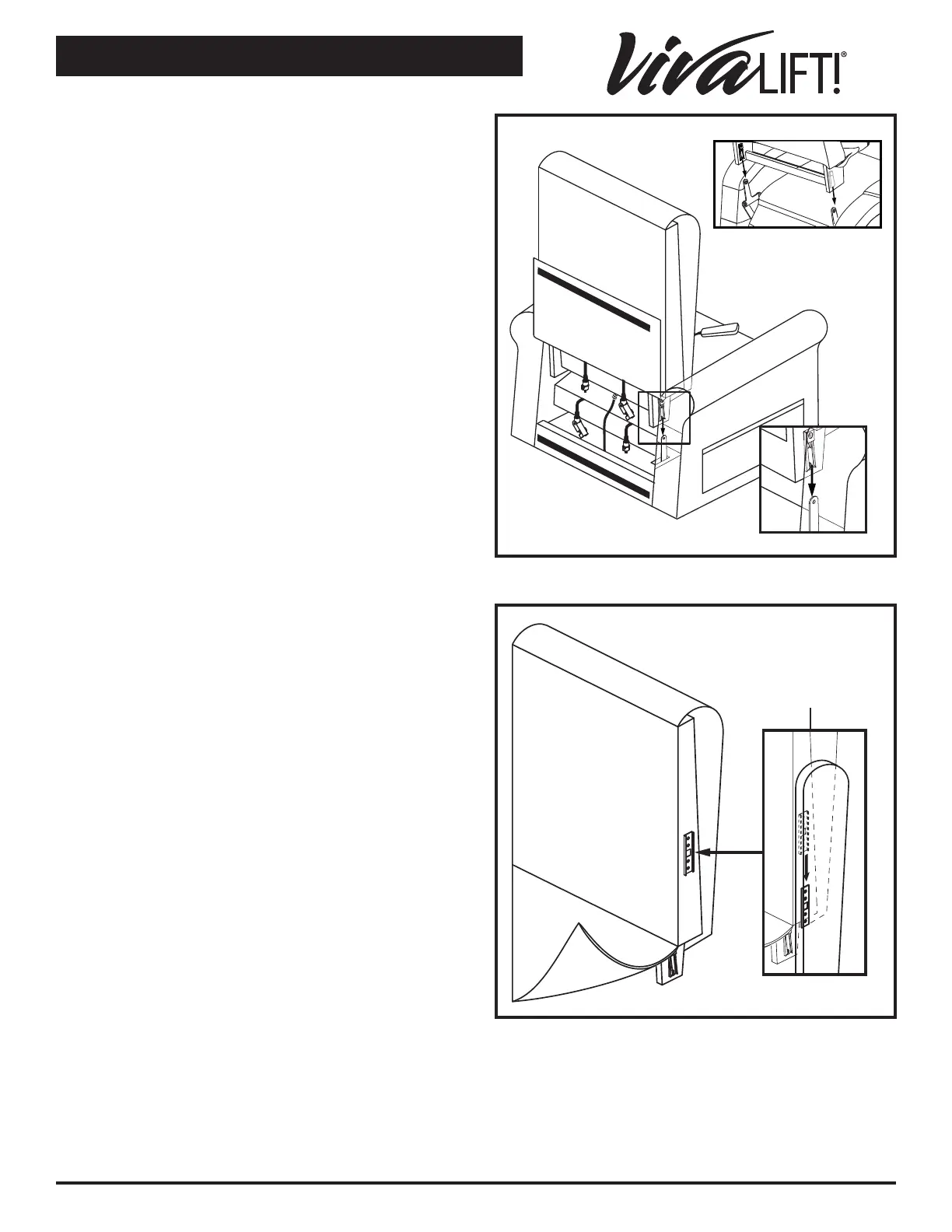

Figure 4. Chair Back Installation
Figure 5. Wing Back Installation
