6

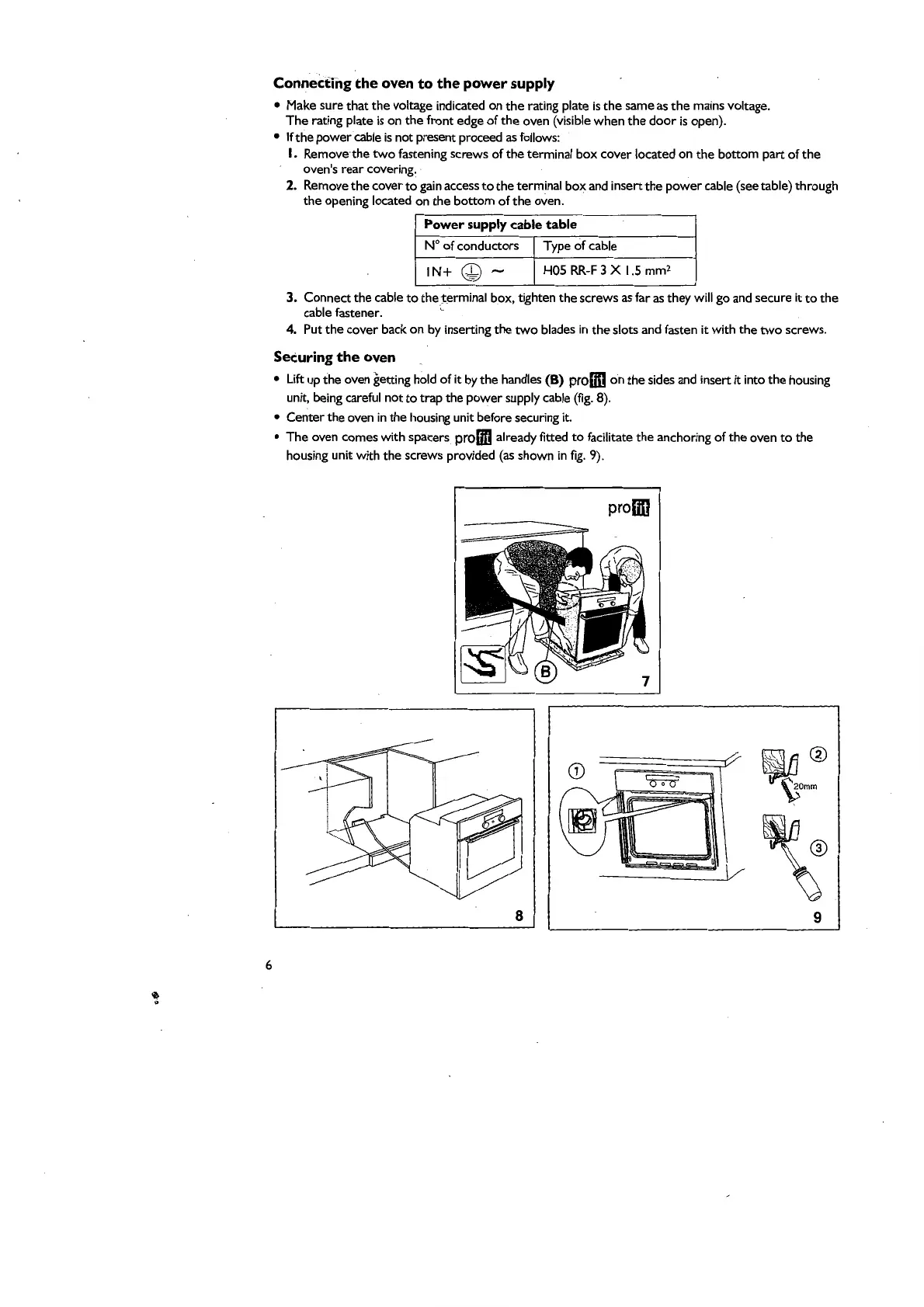

Connecting the oven to the power supply
• Make sure that the voltage indicated on the rating plate is the same as the mains voltage.
The rating plate is on the front edge of the oven (visible when the door is open).
•
If the power cable is not present proceed as follows:
I. Remove· the two fastening screws of the terminal box cover located on the bottom part of the
oven's rear covering~
2. Remove the cover to gain access to the terminal box and insert the power cable (see table) through
the opening located on the bottom of the oven.
Power supply cable table
No of conductors Type of cable
IN+ ~ - HOS RR-F 3 X 1.5 mm
2
3. Connect the cable to the .-terminal box, tighten the screws as far as they will go and secure it to the
cable fastener. c
4. Put the cover back on by inserting the two blades in the slots and fasten it with the two screws.
Securing the oven
• Lift up the oven getting hold of it by the handles (B) prom:J on the sides and insert it into the housing
unit, being careful not
to trap the power supply cable (fig. 8).
• Center
the oven in the housing unit before securing it.
• The oven comes with spacers prom:J already fitted to facilitate the anchoring of the oven to the
housing unit with the screws provided (as shown in fig. 9).
prolm
8
~®
~Omm
~
9
