Primal PSPR0020 - Page 19

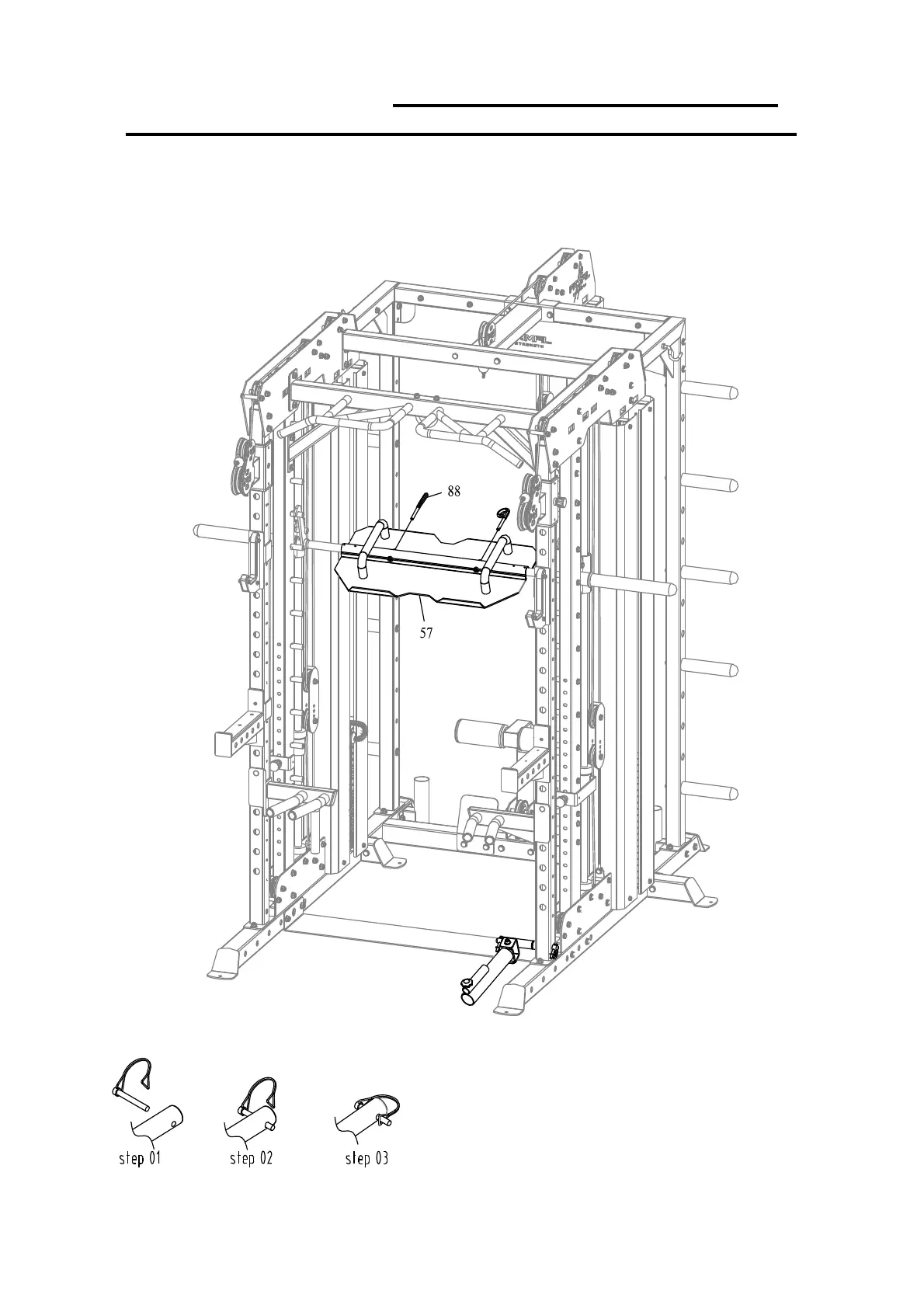

ASSEMBLY DIAGRAM 12 USE A PARTNER TO HELP WITH THIS STEP
REMEMBER: Only hand tighten all nuts and bolts until whole machine is assembled
1. InsertFOOTPLATE(57)toBAR(15)withP‐PIN(88).
2. InsertBARSUPPORT(63)toRIGHTBASE(1)withLOCKPIN(87)
