20
3
IMPORTANT:
Slot in
U-Clip
End Rail Mounting
Indentations
Detail A
3.

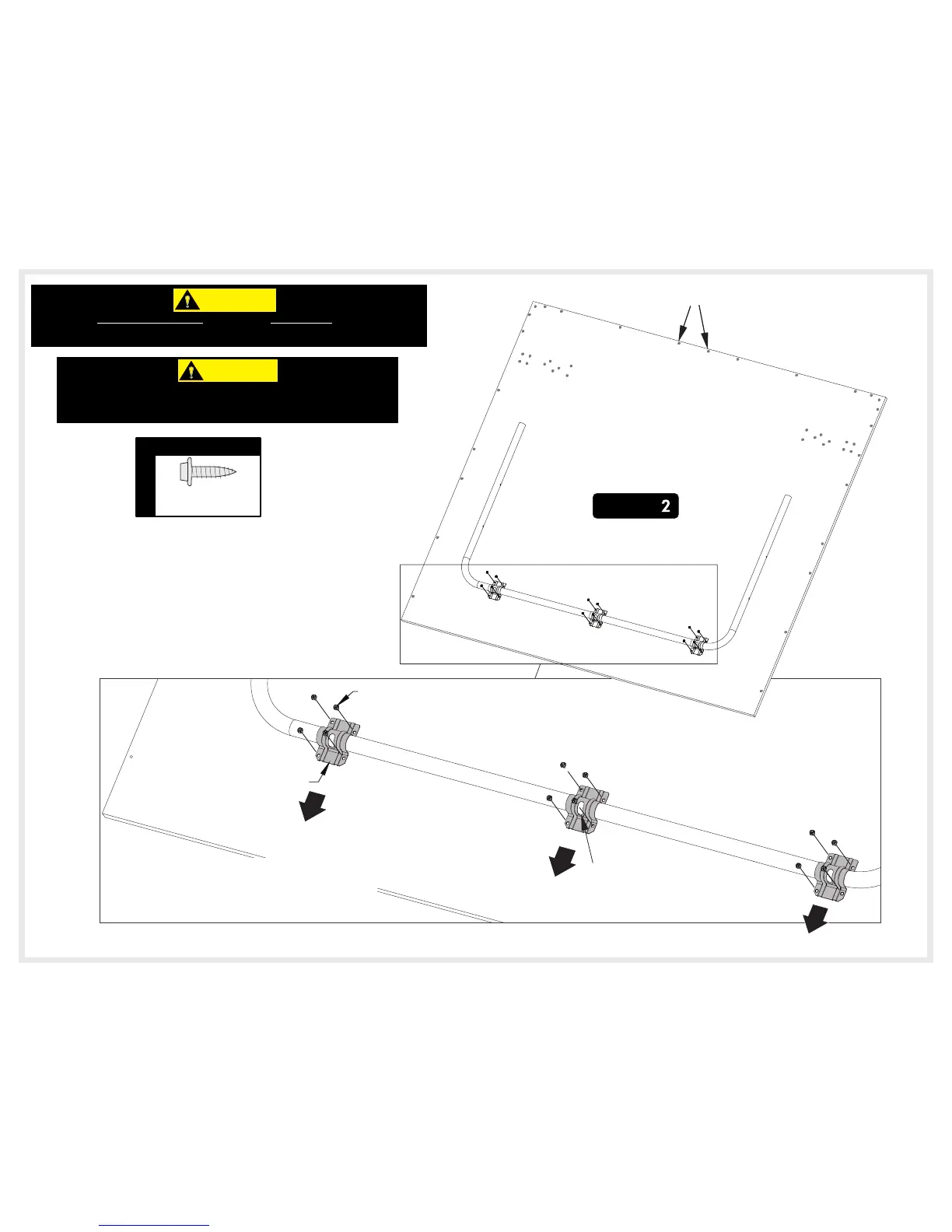

Align the holes in the U-clips #3 with Indentations in table top
assembly and secure with twelve screws #20 as shown. All four
holes in each U-Clip must align with four Indentations in top.
See Figure 2 and Detail A.
Be sure that slot in the three U-clips #3 all face the
same direction as shown. (Toward the end of the
table with no stripe.)
WHEN ASSEMBLING TABLE, IT IS EXTREMELY IMPORTANT THAT THE U-CLIPS
(#3) BE TURNED AS SHOWN HERE. IF U-CLIPS ARE TURNED INCORRECTLY,
YOU WILL DO IRREPARABLE DAMAGE TO YOUR TABLE WHEN YOU ATTEMPT
TO OPEN IT TO THE PLAYING POSITION.
CAUTION:
IF USING AN ELECTRIC SCREWDRIVER PLEASE SET AT LOW TORQUE AND USE CAUTION
BECAUSE YOU COULD OVER-TIGHTEN THE HARDWARE AND STRIP SCREW IN WOOD
DOING IRREPARABLE DAMAGE TO THE TABLE. DO NOT OVER TIGHTEN SCREWS!
CAUTION:
20
HARDWARE NEEDED
#8 X 7/16” Screw
(Qty. 12)
Figure
4
To Next Page
