2s to exit, and a User Aborted message shows on the display. Whenever you operate the
pedal too hard and the pressure is raised beyond the specified range of current phase,
following screens come up prompting you to repeat the process to try again:
1) Brake pressure must not rise beyond the specific range!
2) Repeat the process
3) Press Y or gently actuate and then release the brake pedal to continue
4) N = Return
12). Continue to press pedal gently to increase the pressure to 9.5 - 10.5 bar and keep it for 5
seconds.

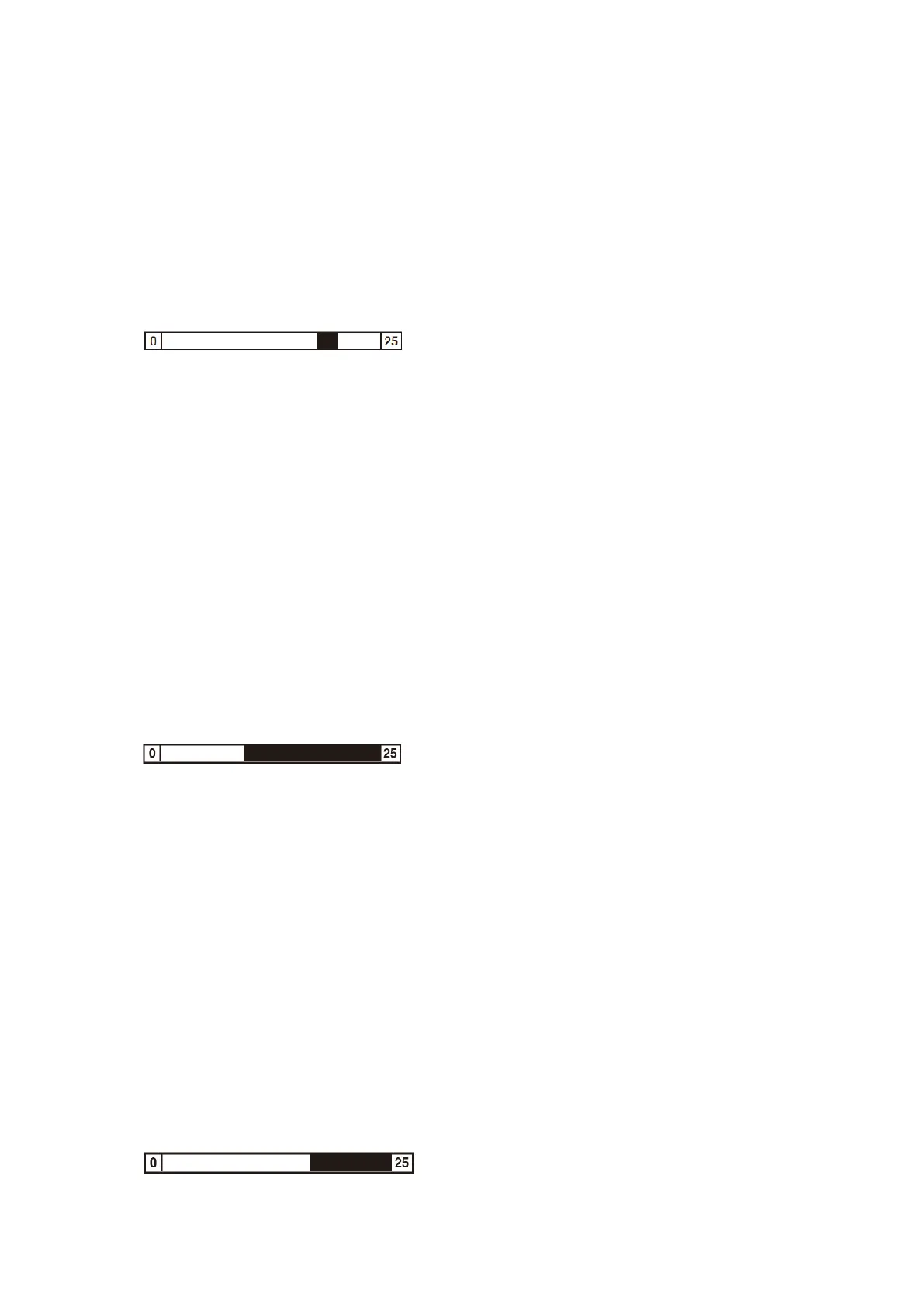

^ Hold pressure within black range for 5 seconds.
13. Keep operate the pedal to increase the pressure to 19.5-20.5 bar and hold it for 5s.
14. Follow onscreen instructions to finish current phase of operation:
Release brake pedal.
A strong brake pedal kickback indicates a fault.
Did brake pedal pulse weakly?
If YES, press ENTER or gently actuate and then release the brake pedal to continue.
If NO, press EXIT.
15. Press ENTER button or gently actuate and then release the pedal to continue, and the
device starts to communicate with the vehicle.
16. Use UP/DOWN button to view onscreen prompts.
1) Increase brake pressure slowly and evenly
2) Actual valve should be within the black range and be held for 5 seconds.
3) Y = Continue N = Return
17. Press ENTER button and following screen shows:
7.8 bar
^ Hold pressure within the black range for 5 seconds.
18. Actuate the pedal gently to raise the pressure to 10-20 bar and keep it for 5 seconds.
19. Follow onscreen instructions to complete current phase of operation:
The fill level of the pedal travel simulator is in order.
Release brake pedal.
Check fill status of wheel brake circuit HZ2 (secondary brake circuit).
20. Press ENTER button or gently operate the pedal to continue, and the device starts to
communicate with the vehicle.
21. Use UP/DOWN button to view onscreen prompts.
1) Increase brake pressure slowly and evenly.
2) At 10 bar the brake pedal counterforce is reduced but needs to be applied further.
3) Brake pressure must not rise beyond the specific range.
4) Actual value should be within the black range and be held for 5 seconds.
5) Y = Continue N = Return
22. Press ENTER button and following screen shows:
11.8 bar
