Prio Expert MOD600 - Filter;Membrane Connections

15
Н ц тр ль ый выход ой п трубок обр т оос от ч ской бр ы д в тся угловой обр т ый кл п Н
боковой выход ой п трубок д в тся ф т г который со д я тся с выходо воды Н Н
Note: For a pre- or post-lter you only need to connect its inlet and outlet. For the membrane
you have to connect the third outlet – to the waste water line. This outlet is located o the
center of the membrane housing. Elbow check valve tting (with the arrow) has to be con-
nected to the central (permeate) outlet of the membrane housing.
■
close the cover, reconnect the external tubes and place the unit back in its place
Н ц тр ль ый выход ой п трубок обр т оос от ч ской бр ы д в тся угловой обр т ый кл п Н
боковой выход ой п трубок д в тся ф т г который со д я тся с выходо воды Н Н
Aer you nished changing lters or the membrane follow the “initial washing” procedure as
described above. With initial operation, check for leaks. If a leak is observed, verify that the
tube or branch pipe of the lter/membrane housing is pushed into the quick tting far enough
to seal the tube against the O-ring and that the tubing was cut at 90
o
.
membrane K858
pre-filter K871
pre-filter K870
post-filter K880
waste water outlet
permeate outlet
R.O. unit inlet
to the faucet

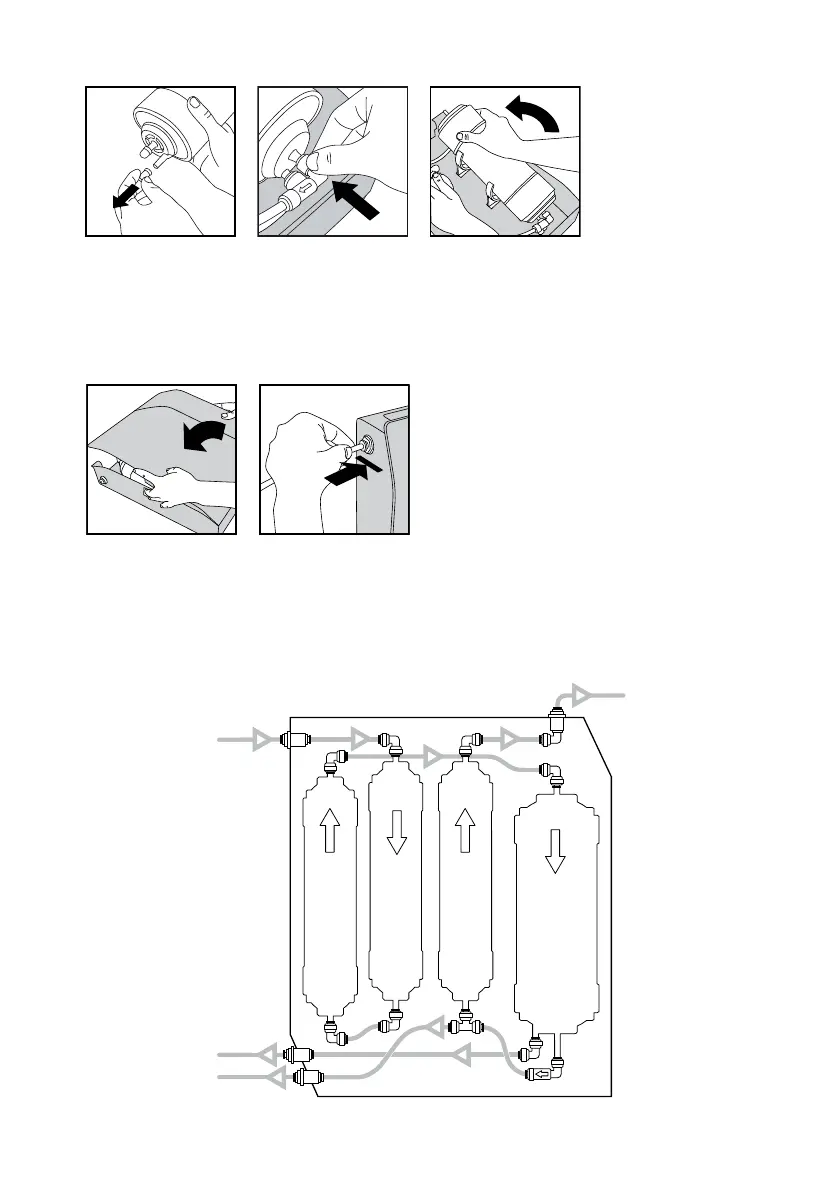

R.O Filtartion Unit Internal Connections Chart
