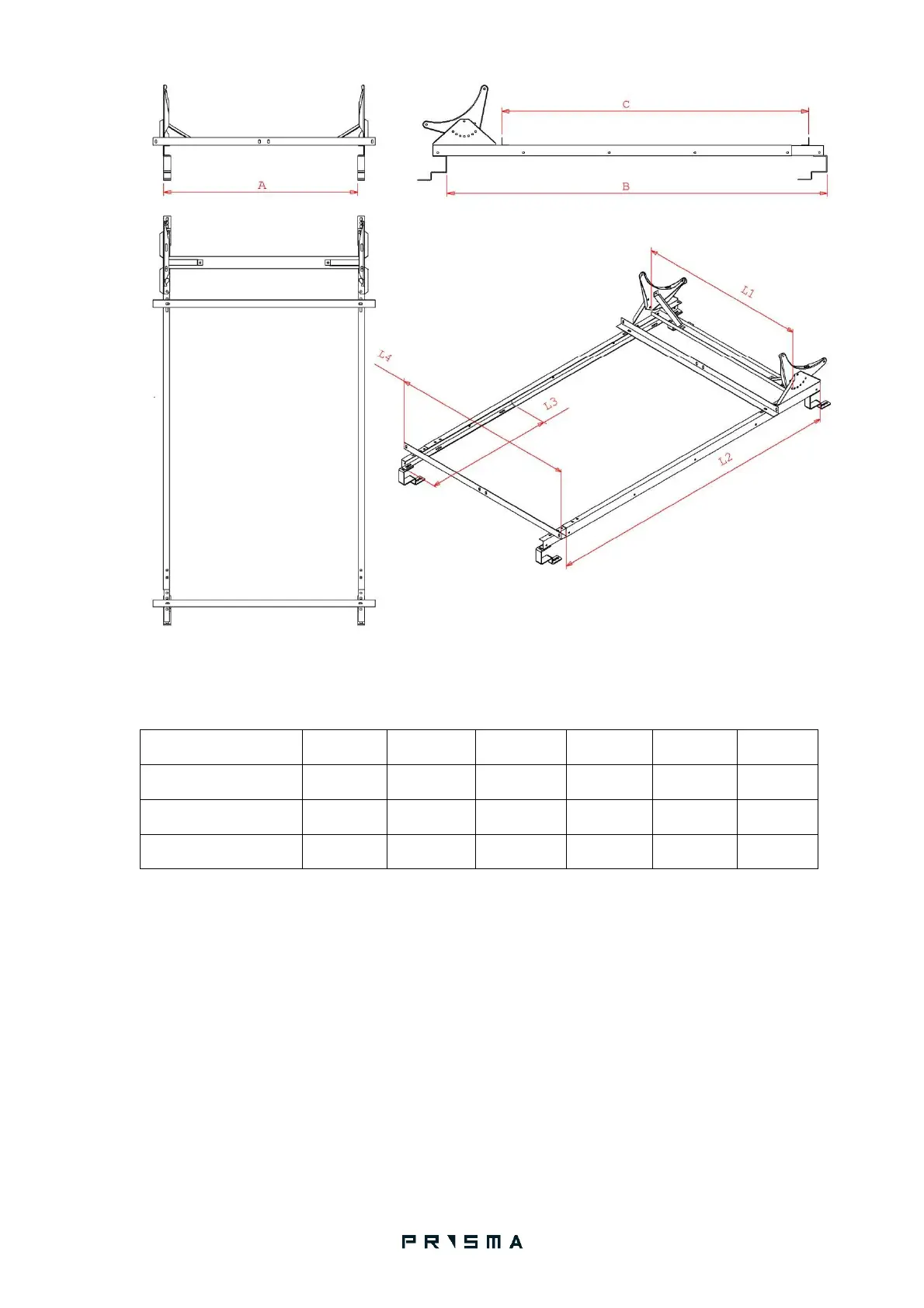

Figure 2: Installation and base system dimensions. See Table 4 for values.
TABLE 4
DIMENSION 160/2 160/2.5 200/2.5 200/4 300/4 300/5
A 1090 1090 1090 1090 1090 1090
B 2000 2400 2400 2000 2000 2400
C 1600 1994 1994 1600 1600 1994
