THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / JANUARY 2021 PAGE
26

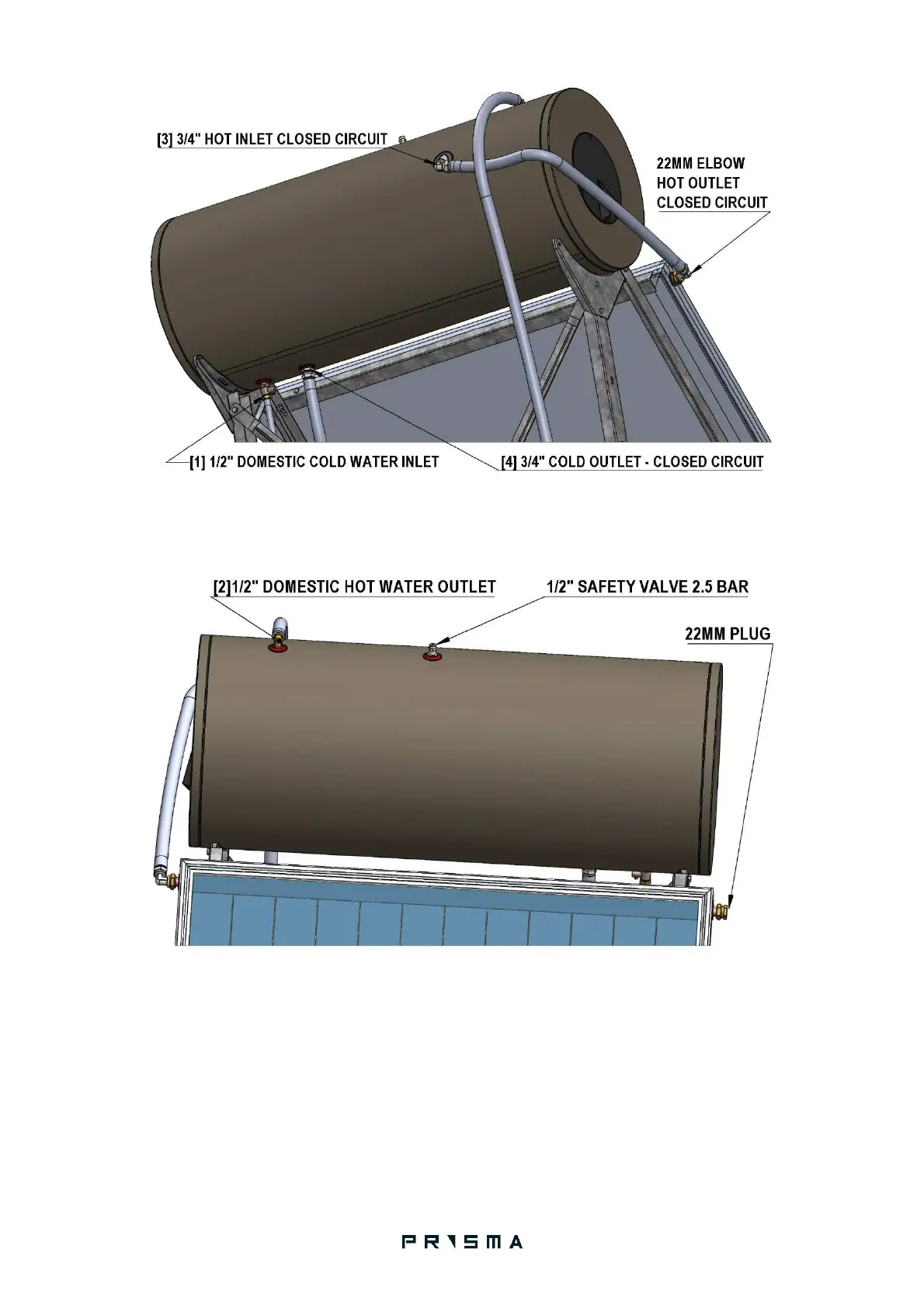

Figure 5: Thermosiphonic connection sizes.
Figure 6: Thermosiphonic connection sizes. System shown is not Prisma, however the connection are
identical.
