Content:
2 Boards with the dimensions 536 x 25 x 440 mm (WxHxD)
2 Boards with the dimensions 440 x 25 x 376 mm (WxHxD)
8 Pieces metal dowels
16 Pieces wooden dowels
8 Pieces plastic heads
8 Pieces Cam Lock Nuts
Needed (not supplied):
1 Phillips head screwdriver
Preparation
Please remove the protection film from the boards.
Put the plastic heads on the threads of the metal dowels.

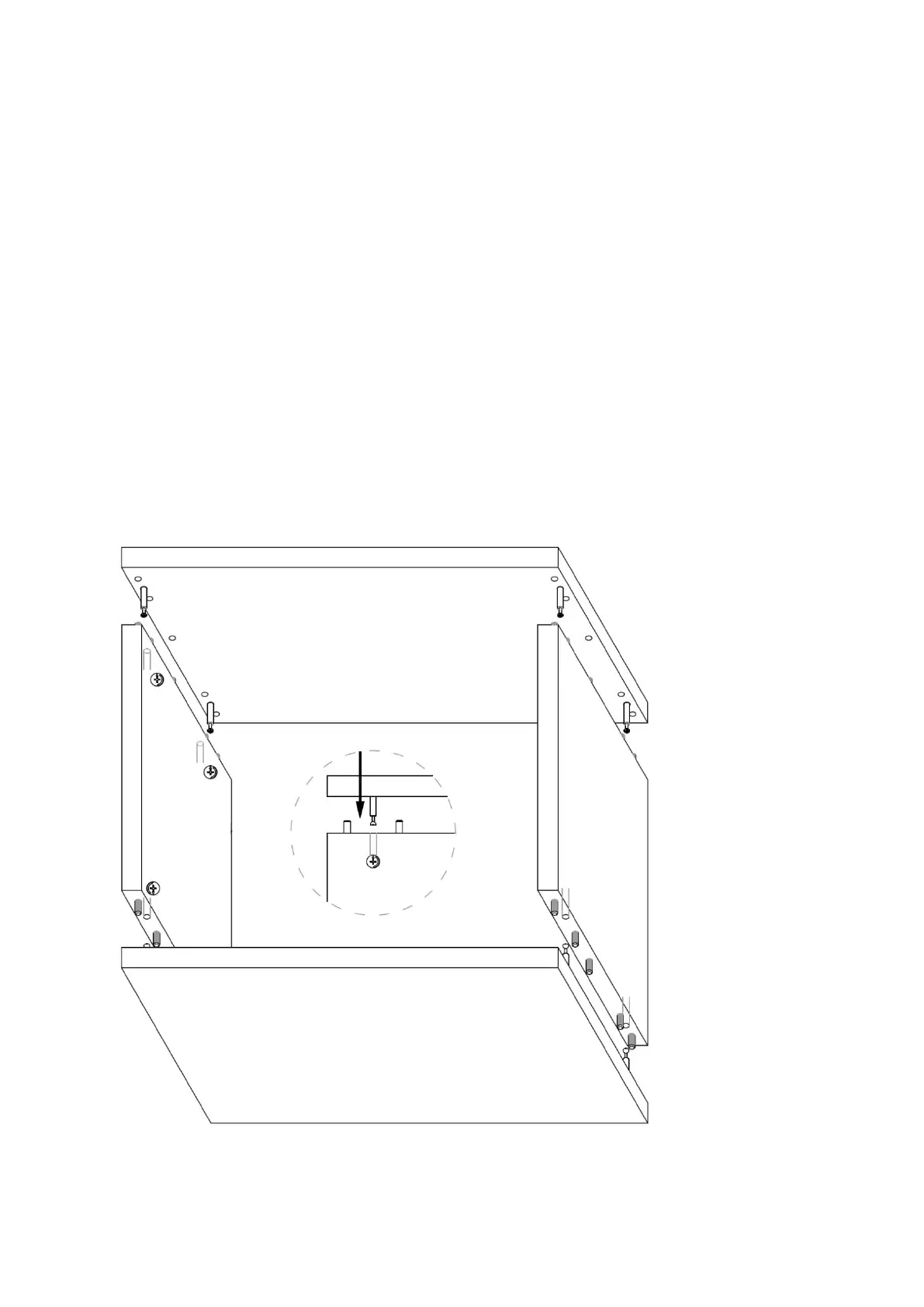

Place the metal- and wooden dowels according to the picture below. The Cam Lock Nuts have to be placed
in the respective holes of the smaller boards. When you put the boards together, please twist the Cam Lock
Nuts clock-wise, then the boards are fixed together and Rack it is finished.
Assembly
