Pro-MIDI CX-25P - CX-25 P Layout and Features

CX-25P: Layout & Features
I
O
7 8 9
EXP-L
SW-L1
EXP-R
SW-R1
SW-R2
2 3 4
1
1 2 3 4 5 6 7 8 9 0 Enter
5
6
1110
14
13
12
15
16 17
18
19
(1) Octave Down Button
(2) Octave Up Button
(3) Channel Select Button
(4) Program Select Button
(5) Data Entry Keys
(6) LED Indicator
(7) MIDI Out Port
(8) AC Adaptor Input
(9) Power Switch
(10) Left Expression Pedal
(11) Right Expression Pedal
(12) Left Switch 1
(13) Right Switch 1
(14) Right Switch 2
(15) Right Switch 2 Output
(16) Right Switch 1 Output
(17) Right Expression Output
(18) Left Expression Output
(19) Left Switch 1 Output

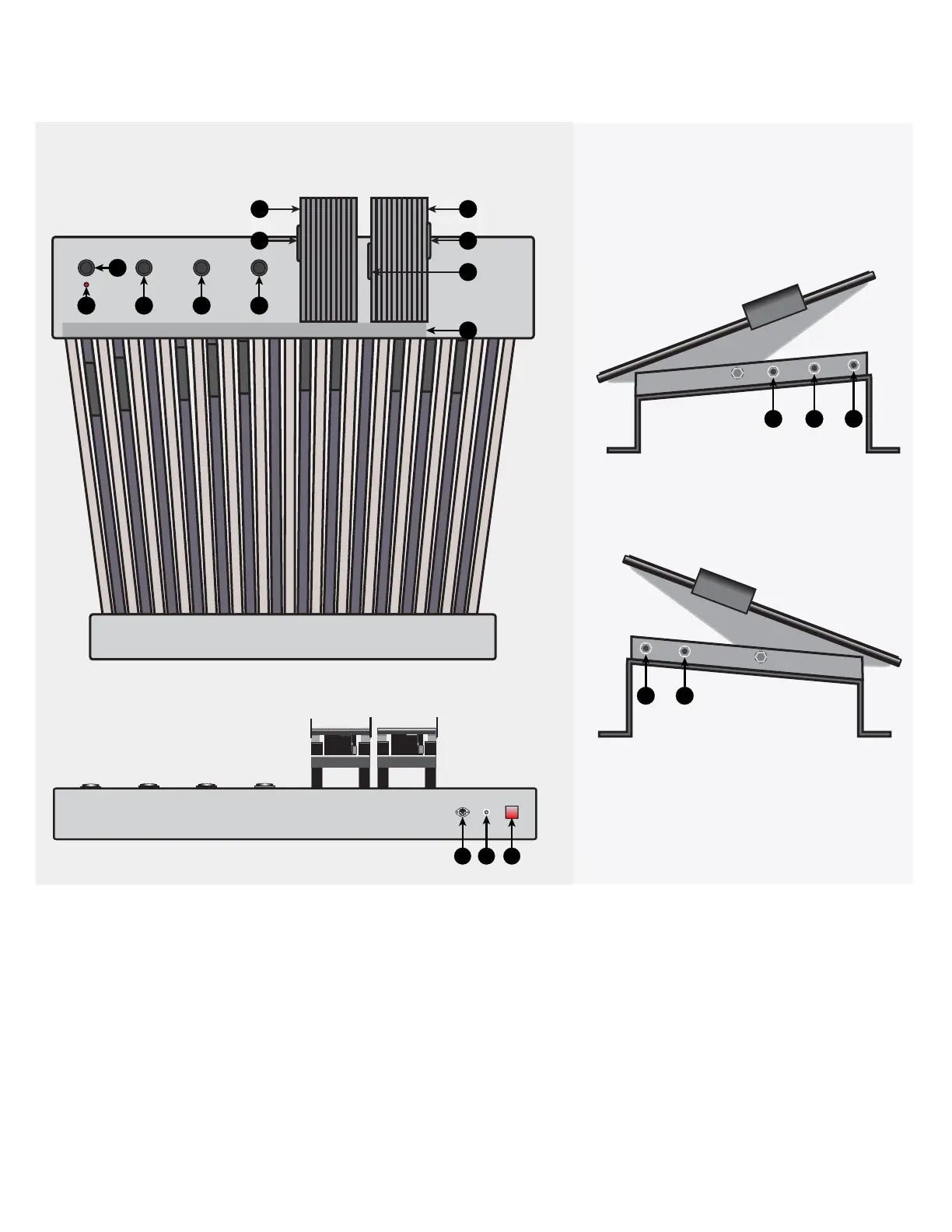

Foot Pedals: Top View
Foot Pedals: Rear View
Right Expression Pedal:
Right View
Left Expression Pedal:
Left View
