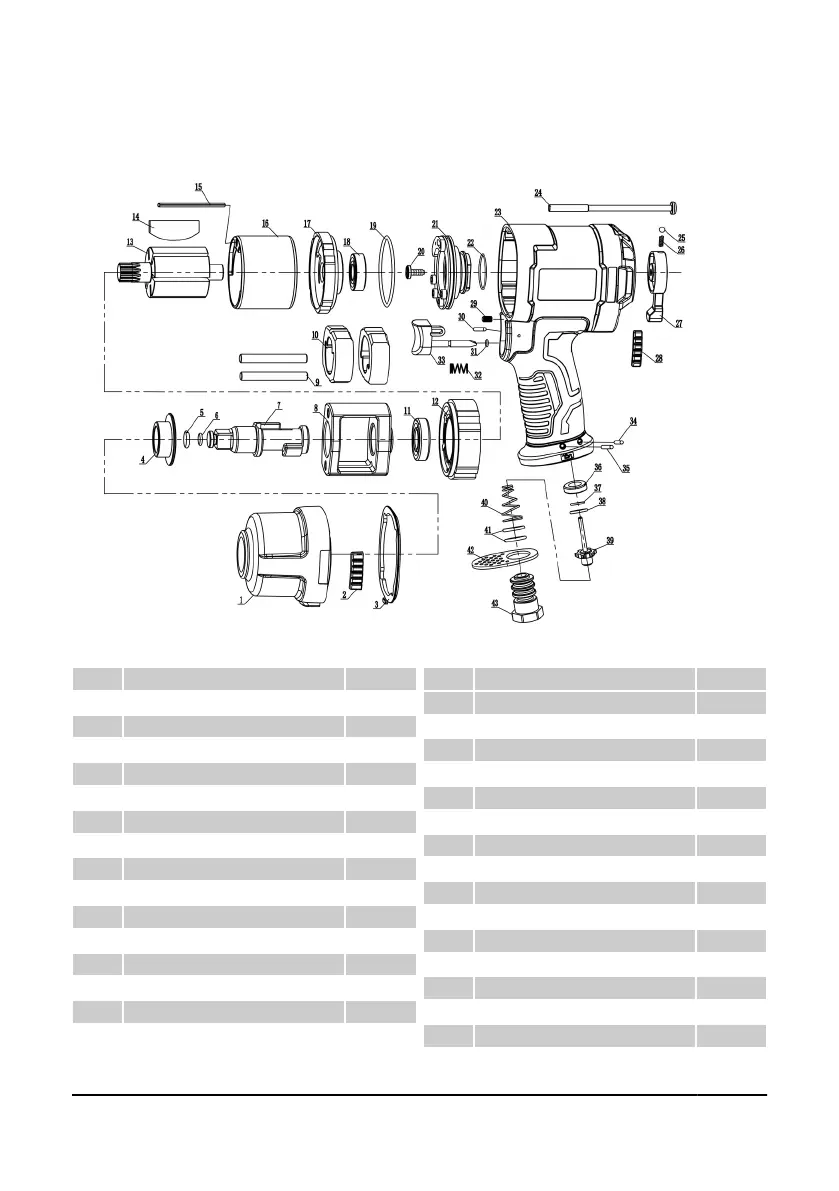

PARTS BREAKDOWN
# Description QTY
1 Housing Cover 1
2 Front Pad 2
3 Front Gasket 1
4 Anvil Bushing 1
5 Anvil Bushing 1
6 O-Ring 1
7 Anvil 1
8 Hammer Cage 1
9 Hammer Pin 2
10 Hammer Mechanism 2
11 Bearing 16002 1
12 Front Cover 1
13 Rotor 1
14 Rotor Blade 6
15 Pin 4x46 1
# Description QTY
16 Cylinder 1
17 Rear cover 1
18 Bearing, 6001 1
19 Bearing, 6001 1
20 Bolt M5x10 1
21 Directional Valve 1
22 O-Ring 1
23 Housing 1
24 Bolt M5x90 4
25 Steel Ball 1
26 Spring 1
27 Air flow Control Dial 1
28 Back Pad 2
29 Bolt M8x8 1
30 Pin 1
