Pro-Team ProForce 1500 - Page 15

13
No. Product Name
1 104306 Wheel, Rear (set of 2)
2 104250 Air Duct Assembly
3 104957 Motor Assembly Kit w/Jumpers (includes: C, D)
4 104504 Bearing, Pivot
5 103532 Foam, Sound, Motor Housing Front Panel
6 104536 Motor Housing, Charcoal
7 103533 Foam, Sound, Motor Housing Left Panel
8 103531 Foam, Sound, Motor Housing Rear Panel
9 104245 Bulkhead, Dark Grey
10 104253 Seal, Lower Air Duct , Nitrile
11 104249 Motor Mount, Upper Nitrile
12 104247 Motor Mount, Lower Nitrile
13
105136
Filter
, Exhaust, HEPA Media
14 104246 Cover, Filter Cartridge, Charcoal
15 104578 Air Duct, Upper ProForce 1500
16 104209 Screw, Phillips, 4.2mm x 12mm, F/Upper Air Duct (set of 2)
17 104267 Screw, Phillips, 4.2mm x 19mm F/Lower Air Duct (set of 2)
18 105488 Motor Housing Sound Filter Kit, (includes: #5, 7, 8)
19 105489 Air Duct Kit (includes: #2, 10, 17)
20 104494 Power Nozzle Cover w/Detent Springs & Decals
21 104279 Switch, Safety, Power Nozzle Lockout
22 104212 Circuit Breaker
23 104496 Screw, Phillips, 3.5mm x 13mm, F/Brush Retainer (set of 4)
24 104499 Retainer, Brush Roll
25 104216 Brush Roll, Power Nozzle, 14"
26 104218 Bumper, Power Nozzle, Vinyl
27 104500 Brace, Formed Wire, F/Power Nozzle Base
28 104221 Baseplate, Power Nozzle
29 104497 Screw, Phillips, 4.2mm x 35mm F/Base Cover (set of 8)
30 104501 Roller, Front
31 104502 Shaft, Front Roller Axle
32 104503 Clamp, Rear Wheel
33 104495 Screw, Phillips, 4.2mm x 19mm F/Powerhead (set of 5)
34
104227
Sleeve, Hose, Air Duct
35 104230 Hose, Power Nozzle to Air Duct, Lower
36 104217 Belt, Drive, F/Brush Roll
37 104506 Motor, Power Nozzle with Crimps
38
104498
Grommet, V
ibration, Power Nozzle
Motor, Nitrile
39 104224 Cover, Air Duct, Power Nozzle
40
104226
Board, V
acuum Operation Indicator
41 104507 Spring, Detent, Upright Lock
42 105371 Screw, Phillips, 4.2mm x 19mm, F/Power Nozzle Motor (set of 2)
43
105281
Carbon Brush Set for ProFor
ce Motor
44 105760 Thermal Protector
105755 Wire Harness Kit includes:
A. Sensor, Bag, Full Indicator
B.
Harness, Wire, Main Power Supply
C. Harness, Jumper, White
D. Harness, Jumper, Red
E. Harness, Wire, Power Nozzle
F. Harness, Power Nozzle Switch
ProForce 1500

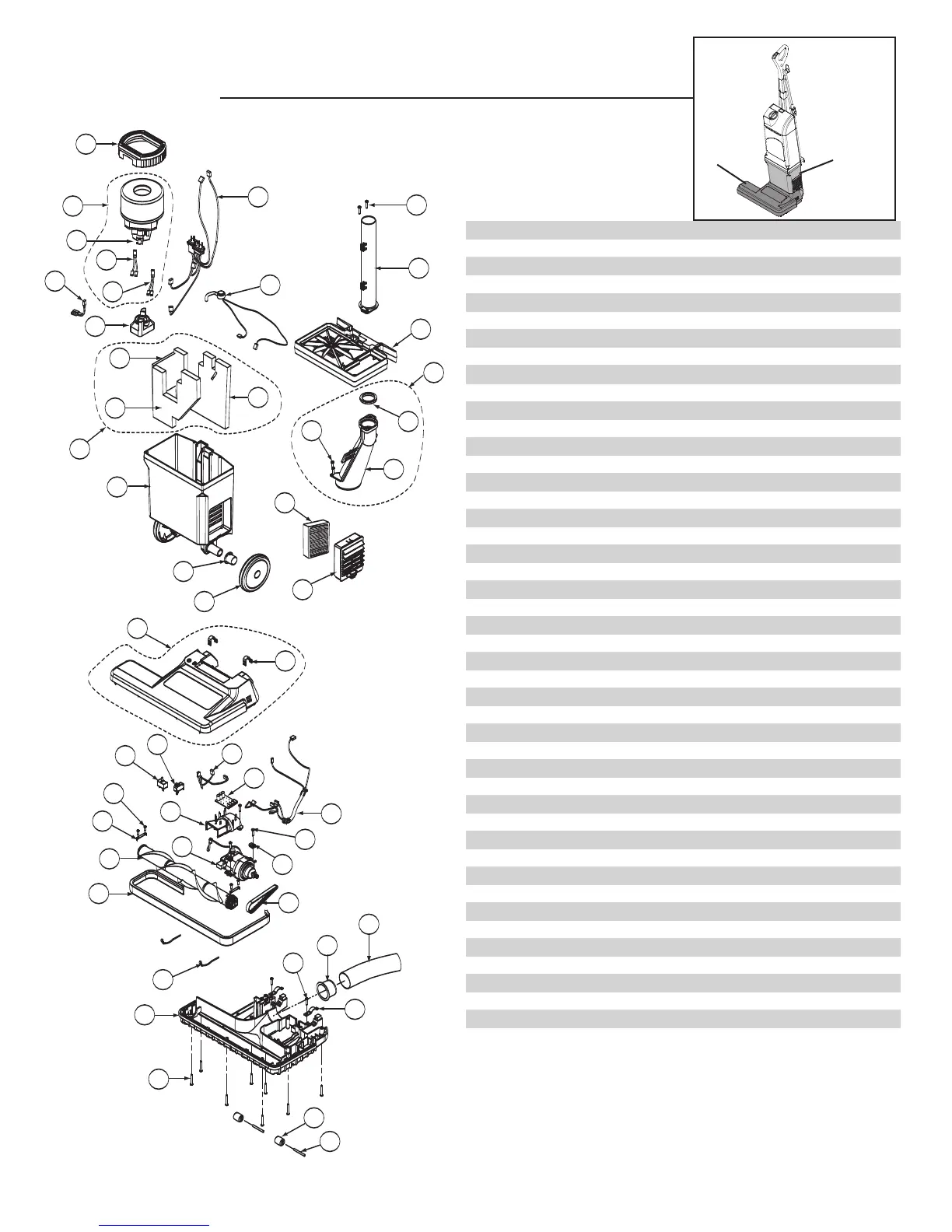

parts list
