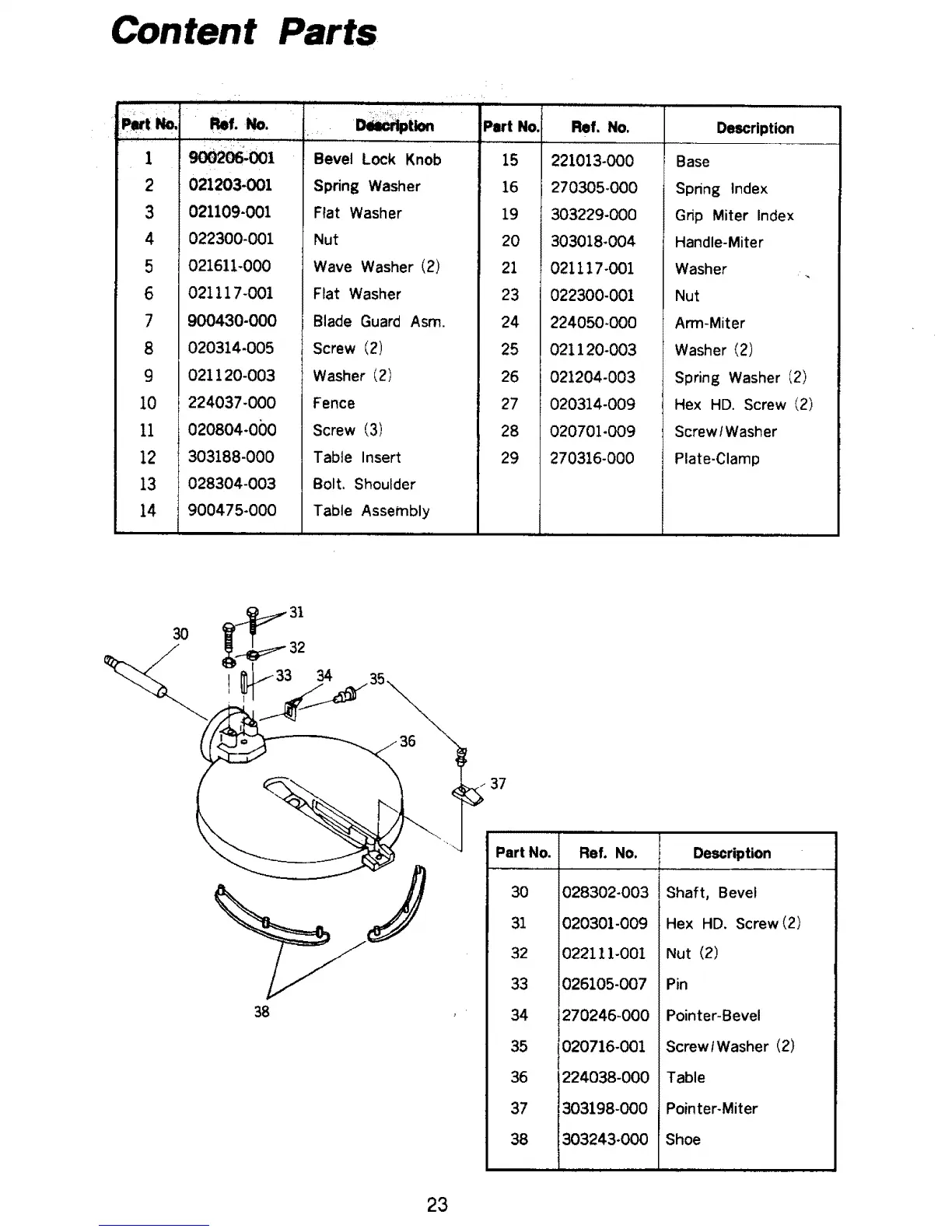

Content Parts
,, ........ .,,. ,,
I 9o02 ;ooi
2 021203-001
3 021109-001
4 022300-001
5 021611-000
6 021117-001
7 900430-000
8 020314-005
9 021120-003
10 224037-000
11 020804-0()0
12 303188-000
13 028304-003
14 900475-000
,,,,, H ........
....... ":: "I ...............
:Part No,
• ,,,,.......... , , ,
Fief. No.
Bevel Lock Knob
Spring Washer
Flat Washer
Nut
Wave Washer (2)
Flat Washer
Blade Guard Asm.
Screw 12)
Washer /2)
Fence
Screw (3)
Table Insert
Bolt. Shoulder
Table Assembly
15 221013-000
16 270305-000
19 303229-000
20 303018-004
21 021117-001
23 022300-001
24 224050-000
25 021120-003
26 021204-003
27 020314-009
28 020701-009
29 270316-000
,i
Description
Base
Spring Index
Grip Miter Index
Handle-Miter
Washer -.
Nut
Arm-Miter
Washer (2)
Spring Washer (2)
Hex HD. Screw (2)
ScrewlWasher
Plate-Clamp
30
38
37
Part No.
30
31
32
33
34
35
36
37
38
Ref. No,
028302-003
020301-009
022111-001
!026105-007
270246-000
!020716-001
1224038-000
_303198-000
1303243-000
Description
Shaft, Bevel
Hex HD. Screw (2)
Nut (2)
Pin
Pointer-Bevel
Screw/Washer (2)
Table
Pointer-Miter
Shoe
23
