Pro-Tech 7208 - Unpacking and Checking Contents; Tools Needed for Assembly; Part Inventory Check

n al
U packing
TOOLS
IBLY
MEDIUM SCREWDRIVER
#2 PHILLIPS SCREWDRIVER
COMBINATION SQUARE
ADJUSTABLE WRENCH
6ramHEX,"L"WRENCH
COMBINATION SQUARE MUST GE TRUE
Stratgh! Edge of Board
3/4"'Thtck, This Edge Must Be
Draw Light Line On
°o.,,.,oo0,,,.V0. :i
t.
ShOuld Be No Gap Or Overlap
Here When Square Is Flipped
Over In Doffed Position,
_ Perlectly Straight.
A

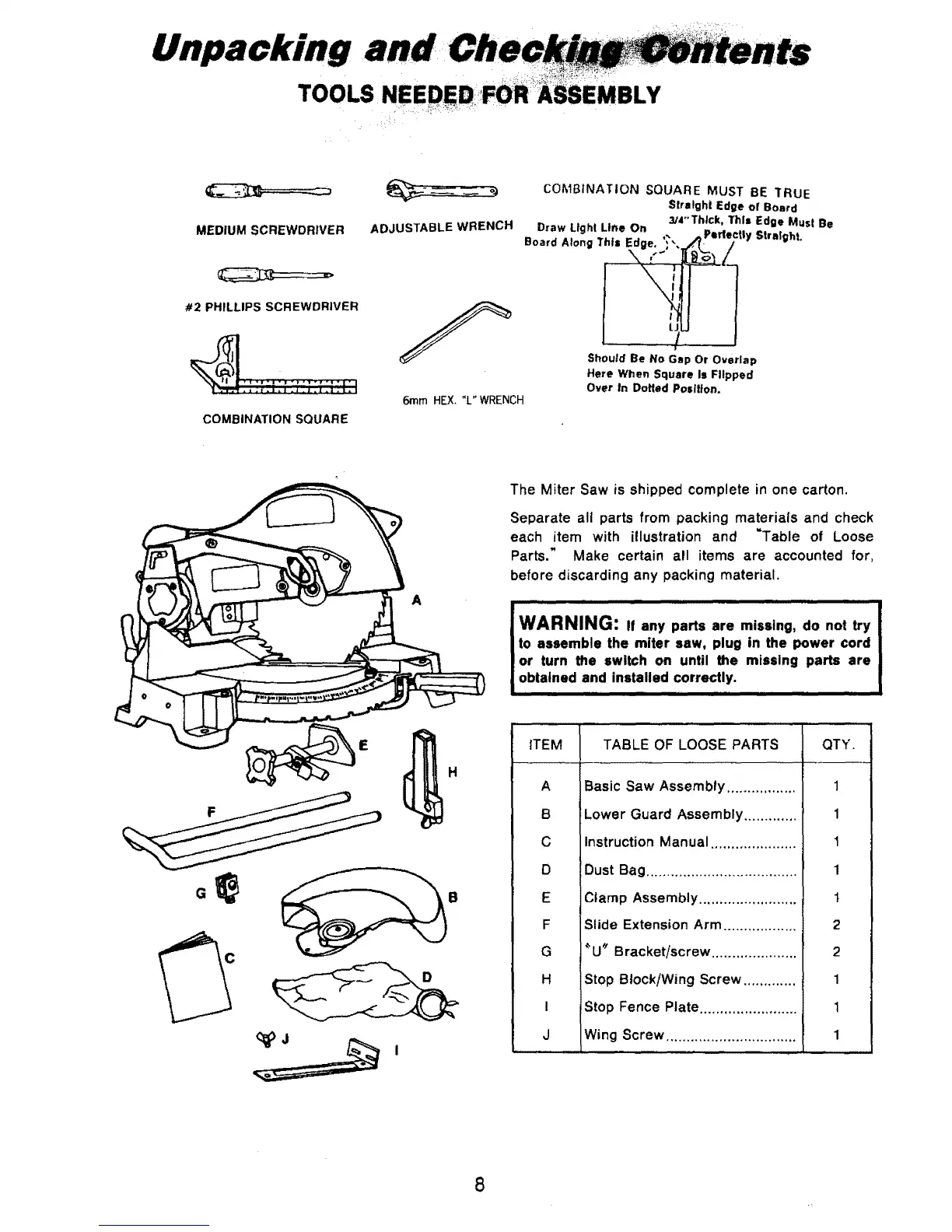

The Miter Saw is shipped complete in one carton.
Separate all parts from packing materials and check
each item with illustration and =Table of Loose
Parts." Make certain all items are accounted for,
before discarding any packing material.
,,,ll i iiiiiiiiiii i ,,,,,l_lul,iii ii i
l WARNING: If any parts are missing, do not try
I to assemble the miter saw, plug in the power cord
I or turn the switch on until the missing parts are
obtained and installed correctly.
ITEM QTY.
A
B
C
D
E
F
G
H
I
J
TABLE OF LOOSE PARTS
Basic Saw Assembly .................
Lower Guard Assembly .............
Instruction Manual .....................
Dust Bag .....................................
Clamp Assembly
Slide Extension Arm ..................
_U_ Bracket/screw .....................
Stop Block/Wing Screw .............
Stop Fence Plate ........................
Wing Screw ................................
1
1
1
1
I
2
2
1
1
1
8
