70

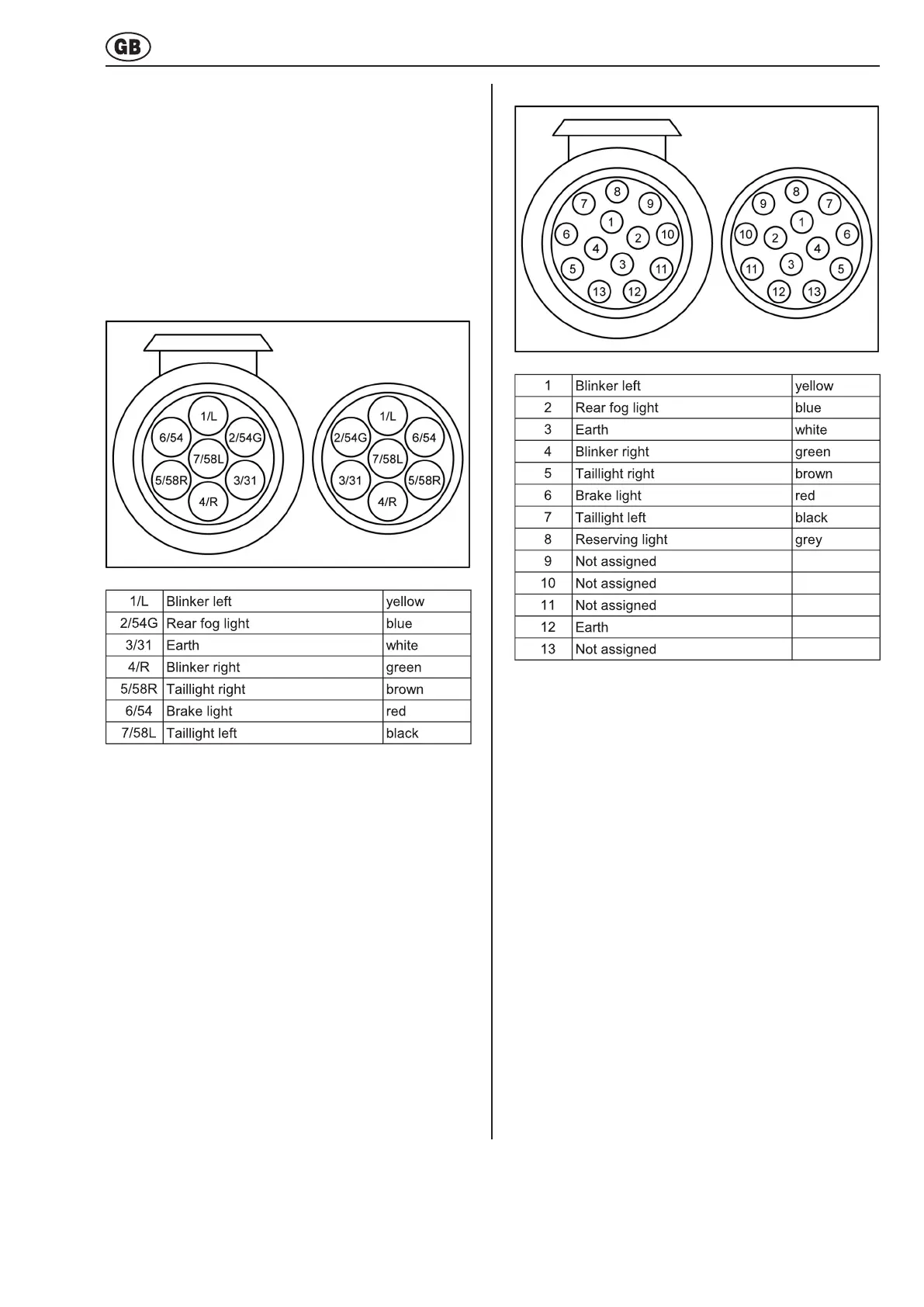

Appendix – Plug assignment
7/13 pin connector
This bike carrier is equipped with a lighting system. This
system can be connected to the tow bar power socket of
your car. Seeing that there are different kinds of sockets
that require different kinds of plugs, t his carrier comes with
the usual 7-pin plug and the 13-pin plug (Jaegers). As a
result, t he carrier can be used with any tow bar!
Both plugs are in one housing. Please cover the plug you
don’t use with the supplied cover.
This informat ion is only for the retrofitting by a specialised
dealer. A retrofitting by nontrained persons is not
permitted.
7 Pin
13 Pin
