When selected by the user, “forward marking mode”:
- IF device position is at front line, short press one button on side THEN MARK
- IF device is at any position and user double-pushes one button on side THEN STOP
4.3 Laser functions (GP8000 & GP8100)
The GP8000 & GP8100 are equipped with a laser to indicate the scan direction & the
measurement center point.

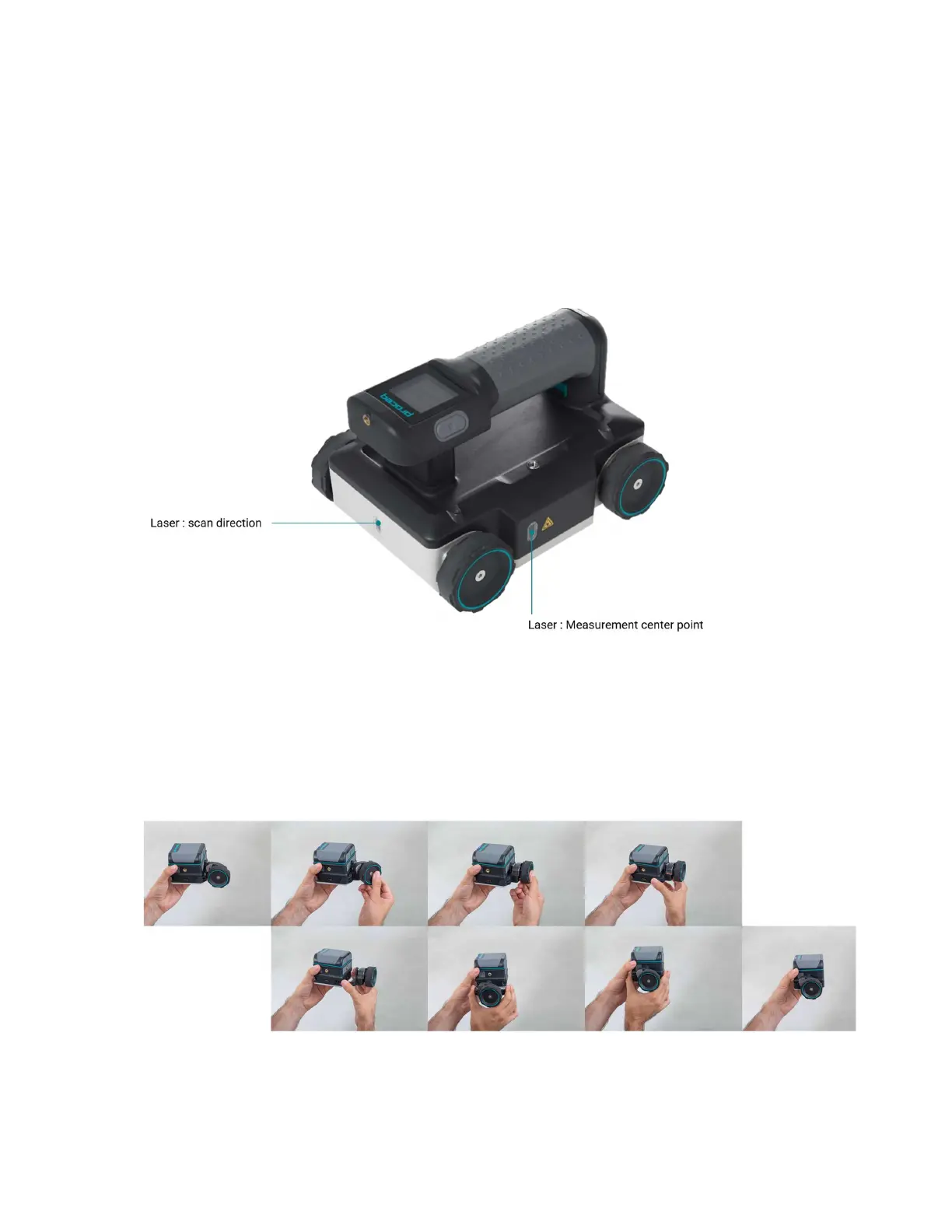

Figure 10: GP8000 & GP8100 Laser
4.4 Flexible wheel mounting (GP8800)
The GP8800 single encoder wheel can be mounted for different purposes:
- To adapt to scanning conditions (ex: congested space).
- To turn the antenna at 90°in cross-polarization mode (see section 5.2)
Figure 11 : GP8800 flexible wheel mounting
