3. June 2024 © Copyright 2024, PROCEQ SA 34

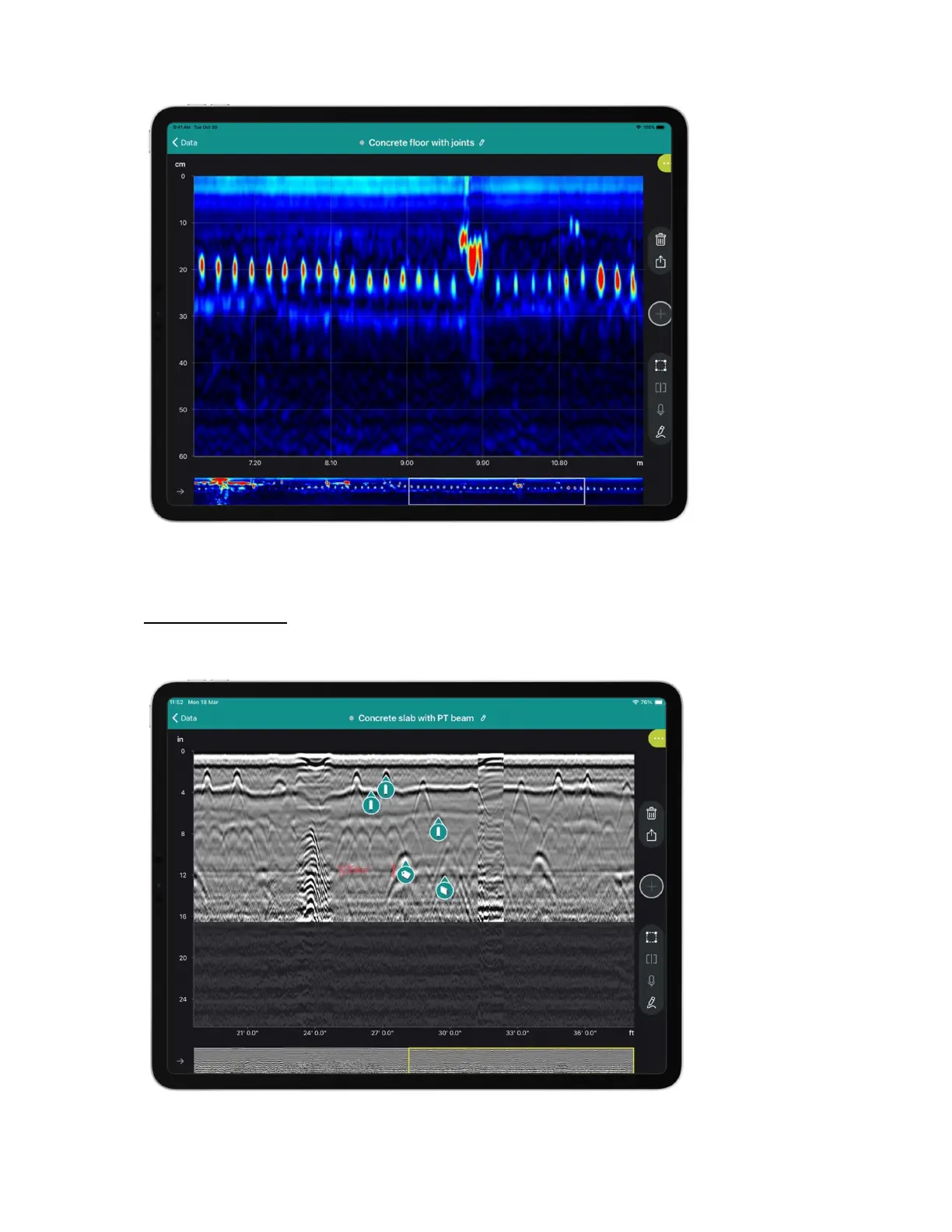

Figure 41: GP app software migrated view concrete floor with joints application.
6.2 Concrete slab with post-tensioned beam
Measurement Mode: Line scan with tags, perpendicular to beams
The raw data view shows top rebar and the PT beam bearing the slab.
Figure 42: GP app software raw data view concrete slab with PT beam application
