Maximum Active Limit
It defines the highest (more positive) potential value associated with an
actively corroding area. It is displayed as a red vertical cursor in the Cu-
mulative Distribution View and it defines the areas displayed in red in the
Chipping Graph View (see “4.2.4. Corrosion Display Views”).
Half-cell Solution
Cu/CuSO
4
(Copper / Copper sulphate), Ag/AgCl (Silver / Silver chloride)
or Hg/Hg
2
Cl
2
(SCE Calomel).. It is a label that is associated to the data file
and displayed in the Profometer Link Software.
4.2.3. Corrosion-Scan Mode
The Corrosion-Scan is the only measurement mode available when the
interface box is connected to the platform. The measurement window
and the displayed settings depend on whether a Rod or Wheel electrode
is selected as Probe Type.
NOTE! In case measuring data shall be stored create a folder
in the Explorer (see “5. Explorer Document Handling”) and
check if the correct folder is active.
Rod electrode
1
2
3
4
5678910
14
12
11
13

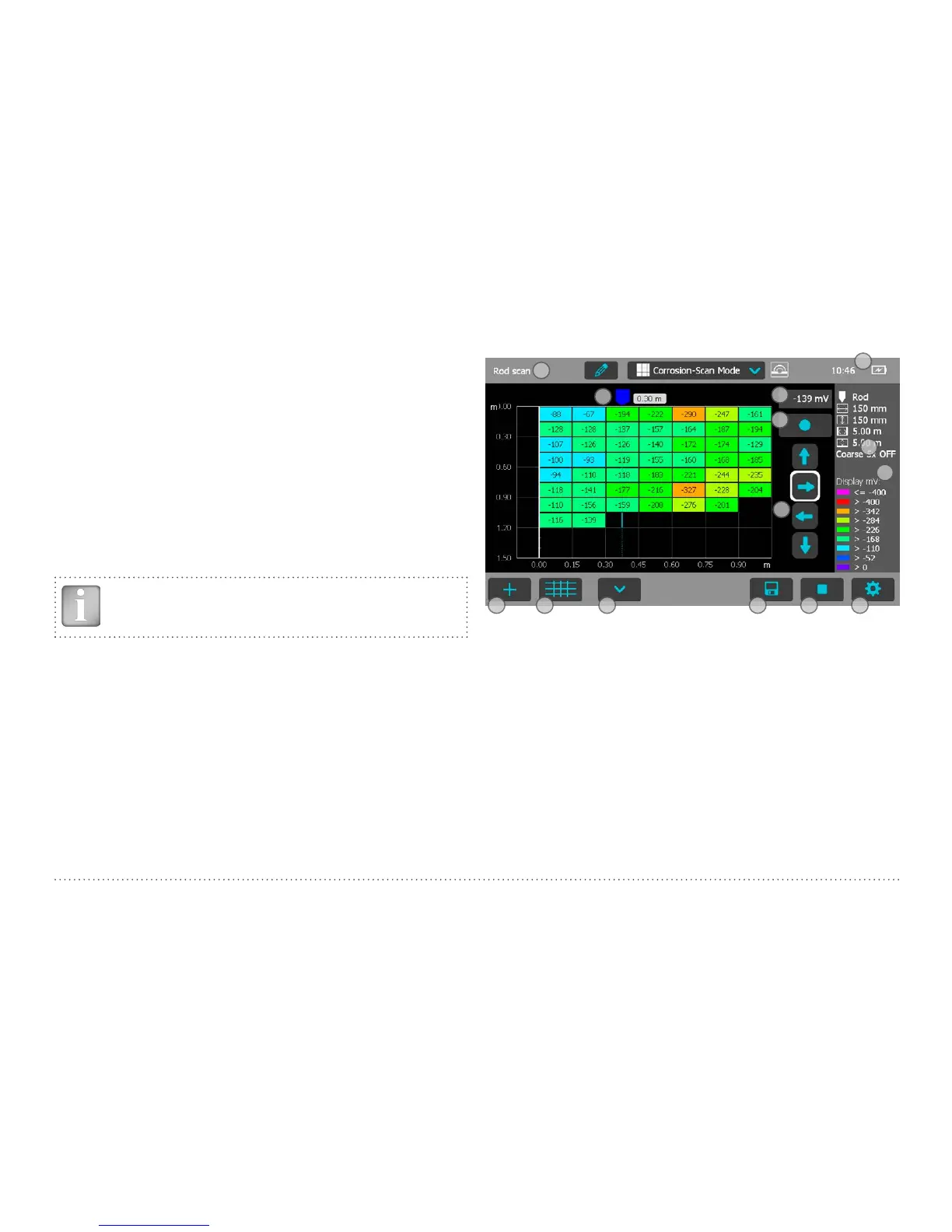

Figure 36: Corrosion-Scan Mode with rod electrode
1
File name: enter the file name and tap return. Saved measurements
will be stored with this file name. If several measurements are made
under the same filename, a suffix increments after each measure-
ment and follows the file name. A file name given by the user ending
already with a number will be incremented on next measurement
based on this last number).
2
Interface box connected, current time, battery status.
3
Display of selected Settings:
• Probe Type
• Grid X Spacing
• Grid Y Spacing
• Grid Limits (if set)
• Coarse Grid Factor
To Next Page
