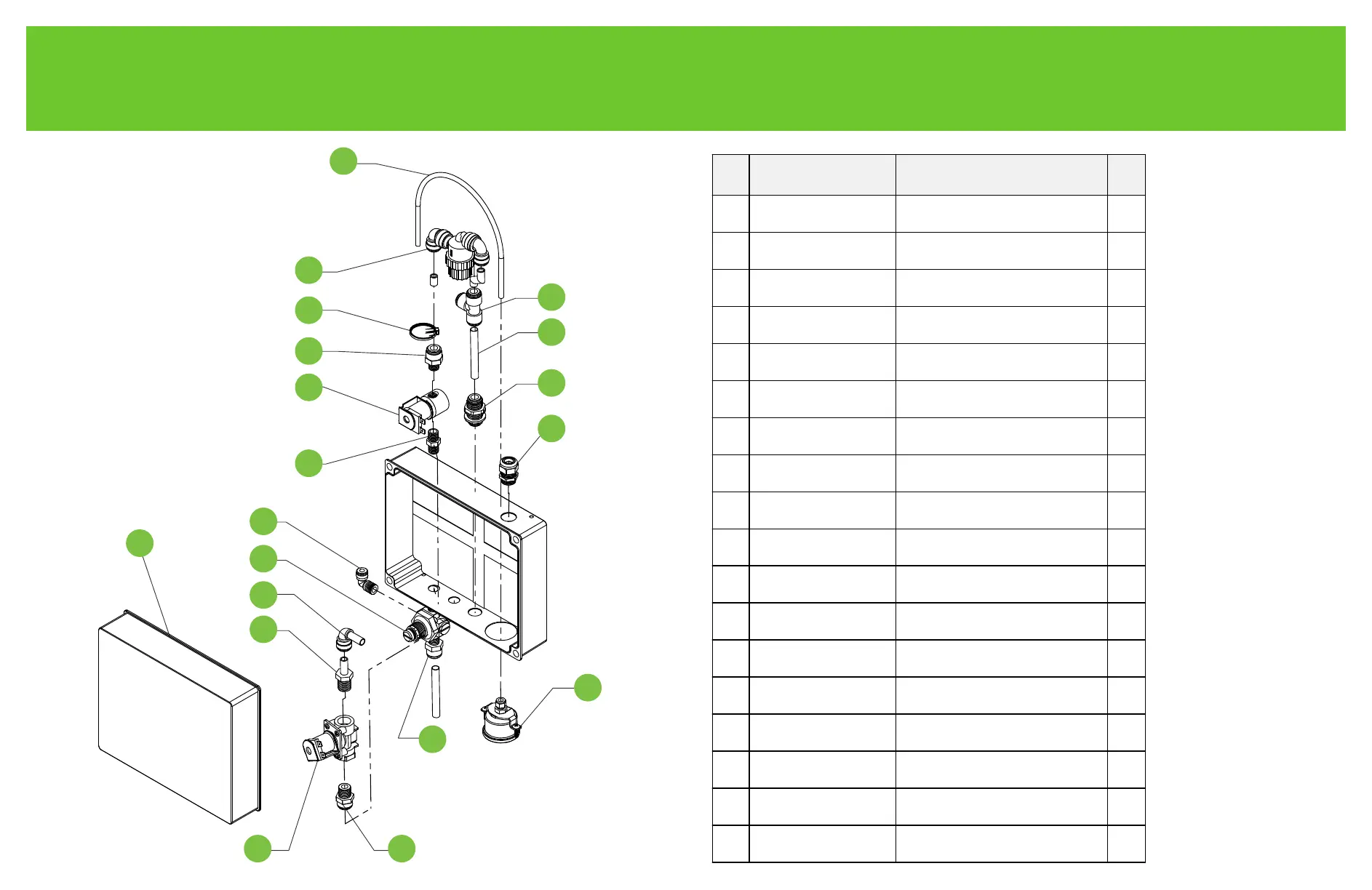

Diagrama de caja de Solenoide FMSOLBX-PRM38
# PART NO. DESCRIPTION QTY.
6
11
12
16
13
22
17
14
5
4
18
7
8
10
9
16
153
1
1 3ENC007 250X200X100 ENCLOSURE 1
3
1SOL38-24-NC-FIL-P SOL, 3/8F 2W NC 24V 1
4
2PSAS38M38-D 3/8SX3/8MPT STEM ADAPTER 1
5
2PSEQ38S38 STEM ELBOW 3/8X3/8 STEM 3
6
2TUB14O-18I-W TUB 1/4 OD 1
7
2TUB38-14I-W TUB 3/8 OD 1
8
2PBHQ38Q38 3/8X3/8 BULKHEAD 1
9
2GAU006 PRESSURE GAUGE 1
10
1CON018 CORD GRIP 1
11
2FIL103 FIL, 3/8 QC 100 MESH 1
12
3TIE8 8" CABLE TIE 1
13
1SOL14-24-NCDA SOL 1/4 FPT 2 WAY NC 24V 1
14
2VAL153 PRESSURE REGULATOR 1
15
2PMCQ38M38 3/8X3/8 NPTF MALE CONN 3
16
2PMCQ38M14 3/8X1/4 NPTF MALE CONN 3
17
2PFEQ14M14 1/4X1/4 NPTF FIXED ELBOW 1
18
2PUTQ38 3/8 UNION TEE 1
22
2PNPL14 1/4" NIPPLE 1
