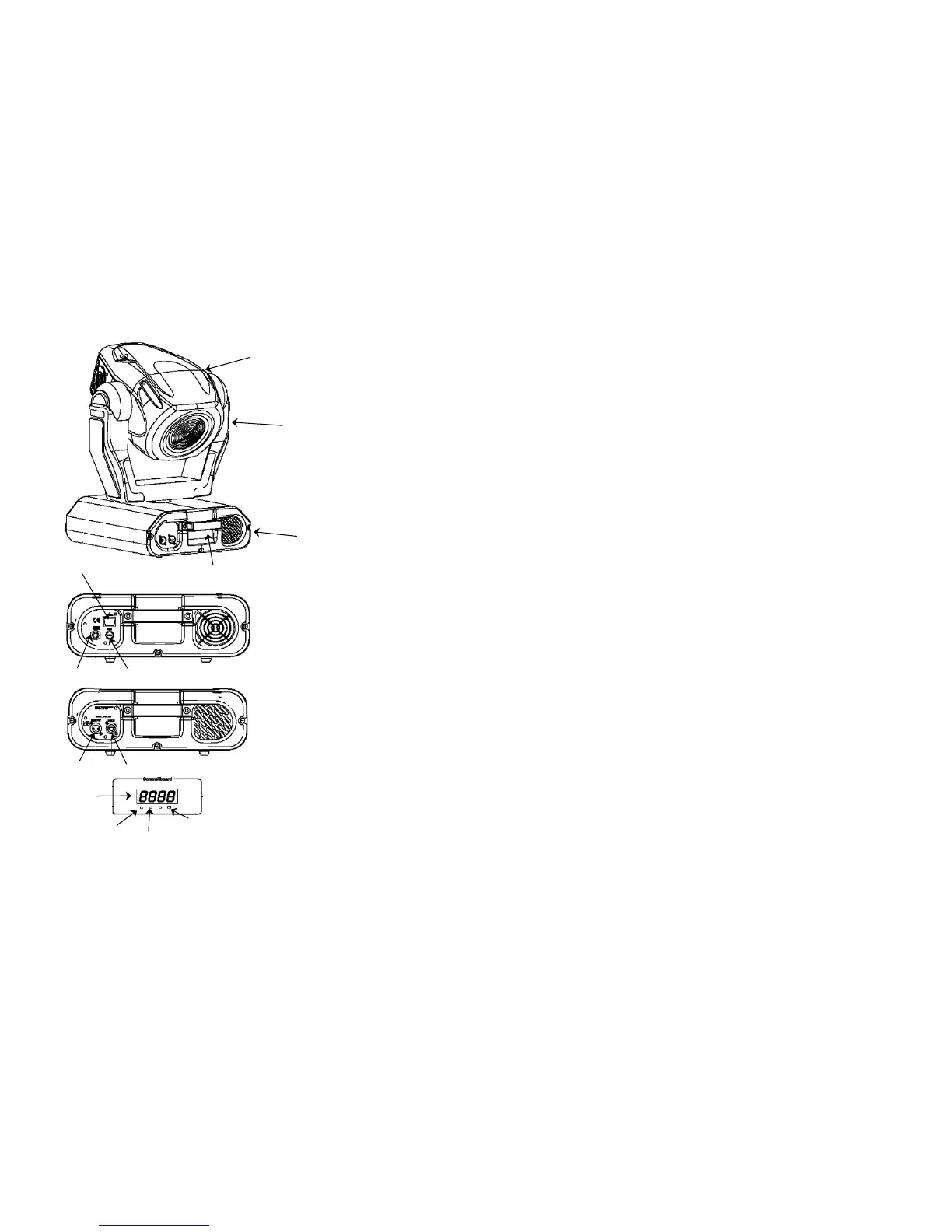

8 - DMX input
9 - DMX output
8
9
10
11
13
10 - display
11 - enter
12 - mode
13 - Up/down
12
4
Dimmer
Smooth dimmer from 0 - 100 %
Motor
13 high quality stepping-motors controlled by microprocessors
Electronics
Digital serial input DMX-512
16 control-channels (full 16 bit protocol):
Channel 1: Horizontal movement 8 bit
Channel 2: Fine Horizontal mirror-movement 16 bit
Channel 3: Vertical movement 8 bit
Channel 4: Fine Vertical mirror-movement 16 bit
Channel 5: Pan/Tilt speed
Channel 6: Fan speed, On/Off lamp, reset
Channel 7: Colour-wheel
Channel 8: Cyan
Channel 9: Magenta
Channel 10: Yellow
Channel 11: Speed of CMY and dimmer
Channel 12: Colour macros - CMY and colour-wheel
Channel 13: Beam-effect
Channel 14: Zoom
Channel 15: Shutter, Strobe
Channel 16: Dimmer
Pan/Tilt
Pan movement range 530°
Tilt movement range 280°
8/16 bit movement resolution
Automatic Pan / Tilt position correction
Maximum PAN-movement 530° in 3 s
Maximum TILT-movement 280° in 2.2 s
Rigging
Stands directly on the floor
Mounts horizontally or vertically with 2 clamps
2 truss orientation
Safety chain/cord eye bolt
