AEC-4000-1 Complete gouging torch with 7’ swivel cable assembly
AEC-4000-12-1 Complete gouging torch with 12’ swivel cable assembly
AEC-4001 Complete gouging torch less cable assembly
AEC-4500-1 Complete gouging torch with 7’ swivel cable assembly
AEC-4500-12-1 Complete gouging torch with 12’ swivel cable assembly
AEC-4501 Complete gouging torch less cable assembly
MODEL NO. DESCRIPTION
DC AMPS
5/32” 3/16” 1/4” 5/16” 3/8” 1/2” 5/8”
90 200 300 350 450 800
to to to to to to —
150 250 400 450 600 1000

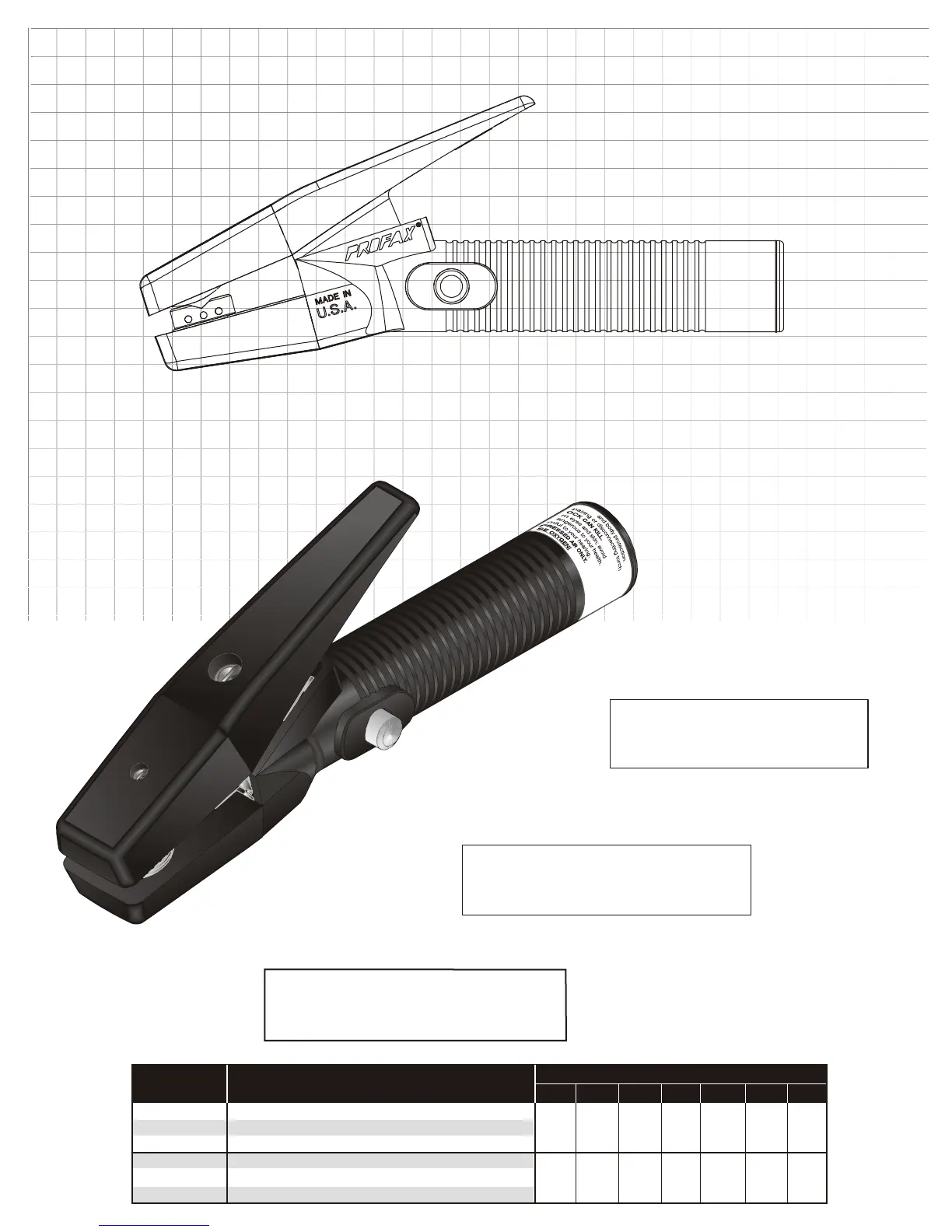

AEC 4000-1/AEC 4500-1
Standard Features:
• 15° torch head • Unique valve design for easy field repair
• Special high impact, heat resistant material • 7’ 360° swivel cable assembly
• Special copper alloy forged body • Optional 12’ swivel cable assembly available
AEC 4000-1
5/32” - 1/2” Carbons
• Standard Swivel Cable Assembly
• Standard Swivel Head
AEC 4500-1
3/16” - 5/8” Carbons
• Heavy Duty Swivel Cable Assembly
• Heavy Duty Swivel Head
200 300 350 450 800 1000
— to to to to to to
250 400 450 600 1000 1250
AIR REQUIREMENTS
When using the AEC series arc gouging
torches 80 to 100 psi compressed air is
recommended.
ARC GOUGING TORCH PARTS BREAKDOWN
M
A
D
E
I
N
U
.
S
.
A
.
M
A
D
E
I
N
U
.
S
.
A
.
®
AEC 4000-1/AEC 4500-1
*7
8
10
6
3
4
5
16
17
18
19
12
*21
*22
14
9
11
13
3
15
20
1
*2
1 Swivel cable assembly 7’ AEC-302-1 AEC-502-1
*2 Swivel cable assembly 12’ AEC-312-1 AEC-512-1
3 Insulator assembly with screws AEC-403 AEC-403
4 Lower tong and valve body AEC-404 AEC-454
5 Pin AEC-410 AEC-410
6 Swivel head with screw AEC-305 AEC-505
*7 Flat swivel head with screw AEC-305F AEC-505F
8 Upper arm AEC-407 AEC-407
9 Lever assembly with screw AEC-408 AEC-408
10 Spring AEC-409 AEC-409
11 Handle AEC-450 AEC-450
12 Cable insulating boot AEC-311 AEC-511
13 Spool assembly AEC-316R AEC-316R
14 O-ring (package of 2) AEC-316-1R AEC-316-1R
15 Swivel joint assembly AEC-321 AEC-521
16 Swivel joint stem AEC-322 AEC-522
17 Swivel joint male nut AEC-323 AEC-523
18 Swivel joint spring AEC-326 AEC-526
19 Swivel joint bushing AEC-327 AEC-527
20 Female cable connector AEC-3-029 AEC-5-029
*21 Air hose extension with crow foot connection AEC-3-040 AEC-3-040
*22 Power cable extension 1/0 cable AEC-3-041-TW AEC-3-041-TW
*23 Power/Air insulation kit AEC-3-045CF AEC-3-045CF
*24 Power cable extension 2/0 cable w/male and female connections AEC-3-042 AEC-3-042
*25 Insulating block AEC-312 AEC-312
NO. DESCRIPTION AEC 4000-1 AEC 4500-1
*Items are optional
AEC-316T
o-ring installation
tool for no.13
A
A
- When rebuilding Swivel Joint Assembly
®
in the field use LOCTITE 272 on the
threads of swivel joint stem (item #16).
*24
*21
*25
*23
AEC-40
Allows you to use the
PROFAX power cables
on the K-4000* torch
*K-4000 is a registered trademark of Tweco Products Inc.
