Warning! Risk of injury from electrical
current.
• Loose and inappropriate plug and
socket connections can make the ter-
minal overheat.
• Have the clamping connections cor-
rectly installed by a qualified electri-
cian.
• Use strain relief clamp on cable.
• In the event of single-phase or two-
phase connection, the appropriate
mains cable of type H05BB-F Tmax
90°C (or higher) must be used.
• If this appliance’s mains cable is dam-
aged, it must be replaced by a special
cable (type H05BB-F Tmax 90°C; or
higher). The latter is available from the
Customer Care Department.
A device must be provided in the electrical
installation which allows the appliance to be
disconnected from the mains at all poles with
a contact opening width of at least 3 mm.
Suitable isolation devices include line pro-
tecting cut-outs, fuses (screw type fuses are
to be removed from the holder), earth leak-
age trips and contractors.

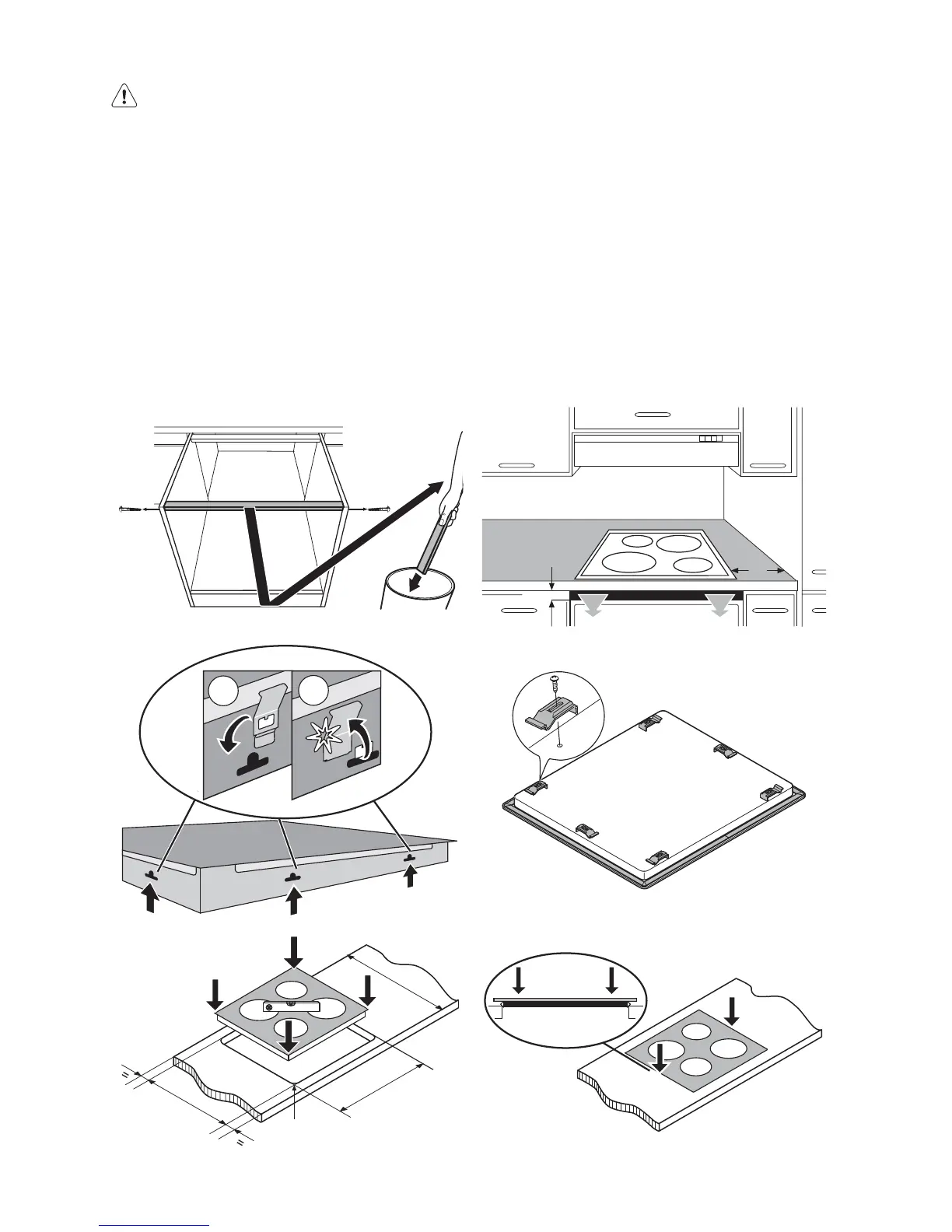

min. 5 mm
min.
50 mm
1
2
560+1
490+1
600
R5
progress 13
