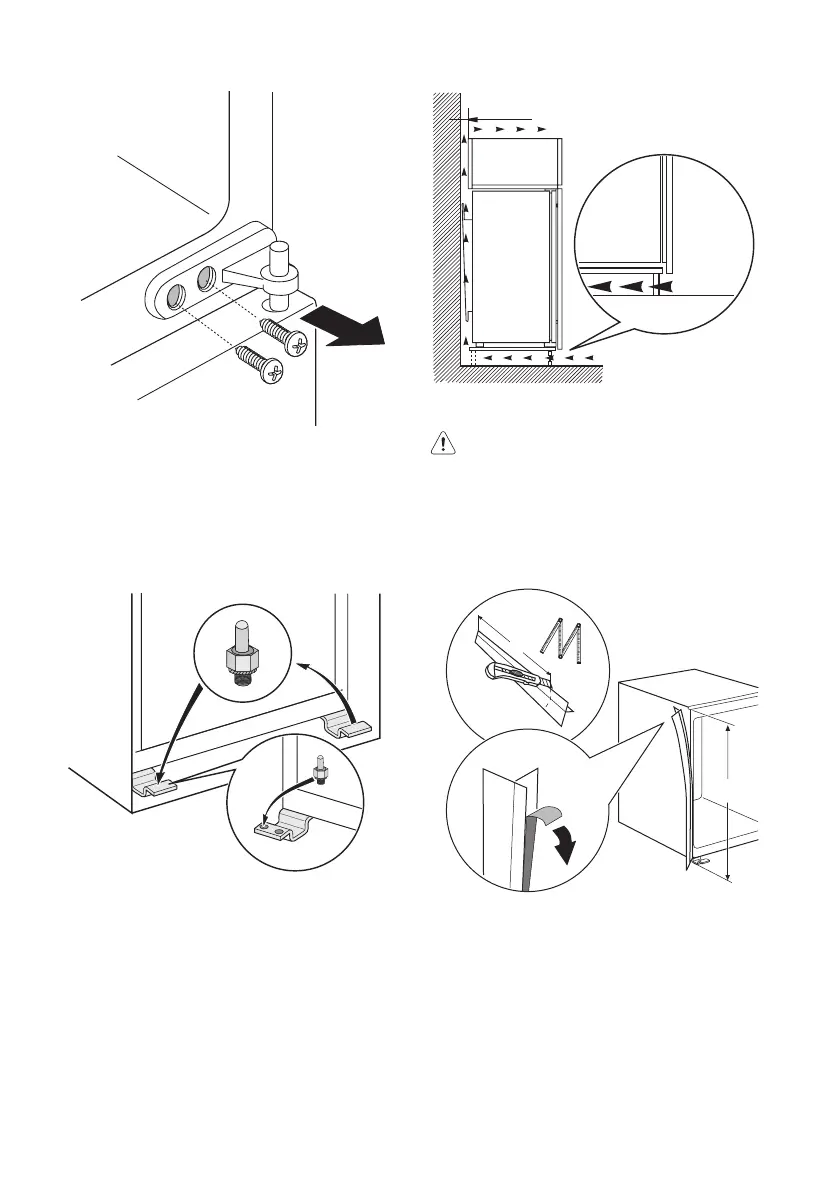

On the opposite side:
1. Tighten the lower pin.
2. Install the lower door.
3. Tighten the middle hinge.
4. Install the spacer.
5. Install the upper door.
Tighten the upper pin.
Ventilation requirements
The airflow behind the appliance must be
sufficient.
min.
200 cm
2
min.
200 cm
2
Installing the appliance
Caution! Make sure that the mains
cable can move freely.
Do these steps.
1. If necessary cut the adhesive sealing
strip and then apply it to the appliance
as shown in figure.
x
x
