Prostat PRS-812 User Manual

17
Rev. C / January 2012
PRS-812 Resistance Meter

2. Press the Red  power buon. The instrument display should become energized, each
LED will be tested in sequence, and  will is displayed in the LCD if the baeries have
sucient test capacity (gure 9).




3. Allow the instrument circuits to warm-up for a few minutes; approximately 2 - 3 minutes are
sucient, prior to compleng the calibraon sequence.
4. Press  once to shi display to ohms mode (Ω).
5. Press the Yellow , then the Gray  buon within ½ second. The message  will be
displayed in the LCD. (See Figure 8)
6. Press the Yellow RESET buon to complete low range (0.1 to 10 ohm) calibraon. The  mes-
sage will automacally be cleared when  is pressed. (See Figure 8)

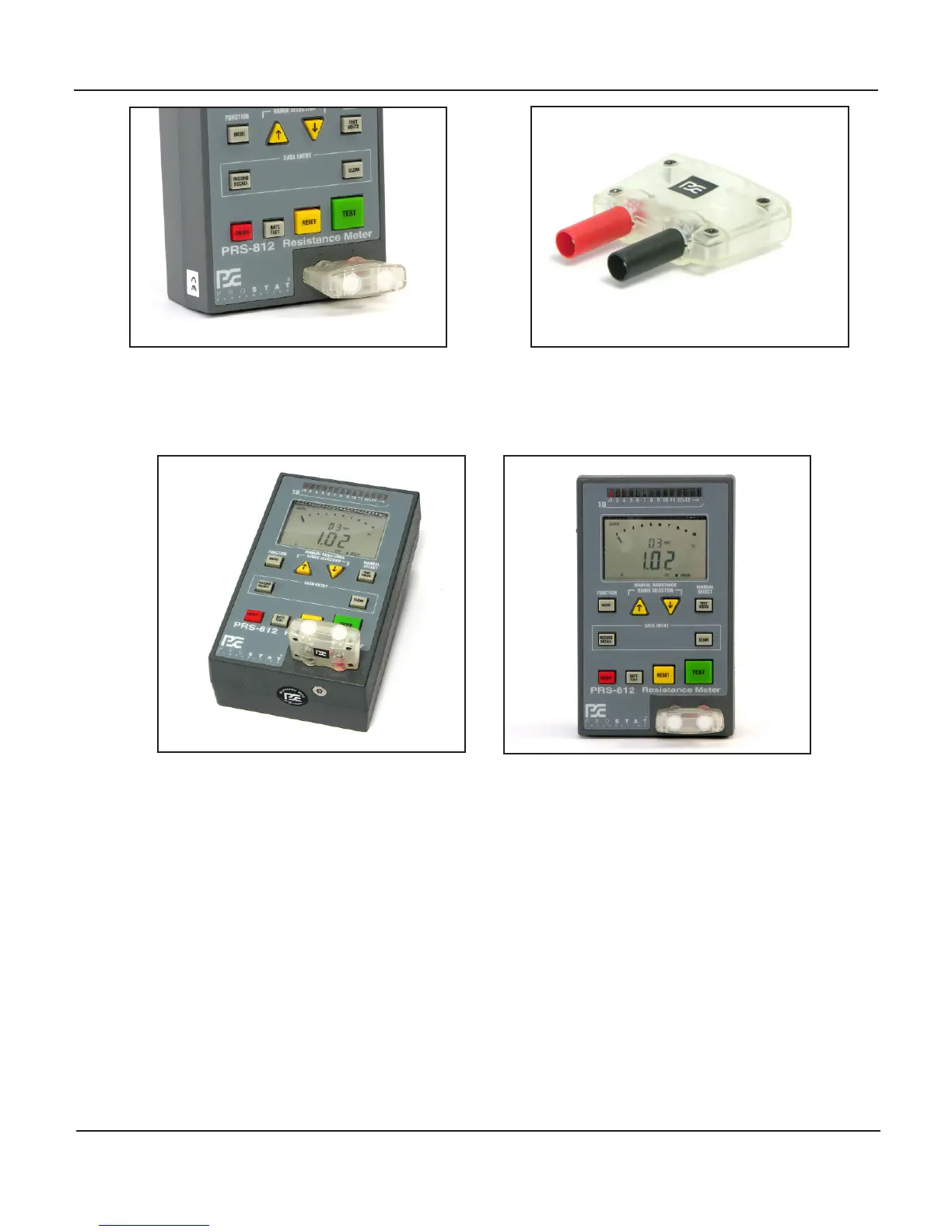

7. Press the Green  buon. Indicated resistance should be 1.02 (±0.02) ohms as shown in
Figure 8. Press  to clear the display. NOTE: If 1.02 (±0.02) ohms is not displayed, repeat
the calibraon process.
