ProTeam Super CoachVac - Page 12

10 – ProTeam Owner's Manual / Manual del propietario de ProTeam / Mode d’emploi ProTeam
6
1
2
3
26
27
28
29
1
4
5
10
7
8
9
9
11
5a
5b
5c
5c
24
25
12
13
14
15
20
21
22
23
16
18
19
30
31
17
CoachVac/Super CoachVac/Super CoachVac HEPA
No. Product Name Qty
1 100197 Twist Cap (Purple) (SCV and SCV HEPA only) 1 ea.
100320 Twist Cap (Black) (CoachVac only) 1 ea.
2 100331 698 Sq. In. Intercept Micro Filter 10/pk
3 100565 Micro Cloth Filter 1 ea.
4 101737 Carry Handle w/Rivet and Washer Set 1 set
5 100356 Shoulder Strap Assembly (includes: #5a, 5b, 5c) 1 set
5a 100358 Shoulder Strap Plastic Adjustment Buckle (Top) 1 ea.
5b 100357 Shoulder Strap Plastic Adjustment Buckle (Bottom) 1 ea.
5c 103627 Sternum Strap Buckles (Latch and Keeper) 1 set
6 105046 Backplate (includes: #7) 1 ea.
103257 Backplate Replacement 1 ea.
7 100375 Barrel Nut Connection Set for Backplate (Replacement) 1 set
8 100716 Backplate (Black) Connection Set: 4 Screws w/Washers 1 set
9 106719 Waist Belt Keeper and Latch 1 ea.
10 100359 Waist Belt (includes: #9) 1 ea.
100354 Strap Assembly Complete (includes: #5, 10) 1 set
103166 Backplate (Black) System Complete (includes: #4, 5, 6, 8, 10) 1 set
11 102604 Cord Holder 1 ea.
12 100641 Power Cord (18" 14/3) Assembly 1 set
13 101610 Switch Cord Assembly (includes: #14, 15) 1 set
101714 Switch Cord w/Crimps 1 ea.
14 101472 Switch Box w/Velcro and New Lamb Switch 1 set
15 106066 On/Off Switch (must use with #106287) 1 ea.
106287 Switch Box w/Velcro and Screws 1 ea.
16 100597 Sound Muffler 1 ea.
17 105044 Motor Shroud/Diffuser w/Screw Set: 2 Screws 1 set
18 100335 Motor Compression Ring w/Screws 1 set
100378 Compression Ring Screw Set: 4 Screws 1 set
19 100014 Tetraseal 1 ea.
20 105697 Carbon Brush Set for CoachVac Motor (Domel Motor) 1 set
100424 Carbon Brush Set for CoachVac Motor (Ametek Motor) (116311-00) 1 set
106904 Carbon Brush Set for CoachVac Motor (Ametek Motor) (122157-00) 1 set
105164 Carbon Brush Set for Super CoachVac Motor (Domel Motor) 1 set
101720 Carbon Brush Set for Super CoachVac Motor (Ametek Motor) 1 set
21 100422 Motor/Fan (120 V) w/Crimps for CoachVac 1 ea.
105162 Motor/Fan (120 V) w/Crimps for Super CoachVac 1 ea.
100379 Motor Ground and Wire Clamp Set w/Screws 1 set
100380 Motor Crimp Set: 4 Female, 4 Male, Ground Crimp Connector 1 set
22 100368 Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers 1 set
23 100586 Bottom Bumper 1 ea.
24 100030 Dome Filter w/Foam Media 1 ea.
25 100343 Foam Filter Media for Dome Filter 1 ea.
101220 High Filtration Disk (optional) 2/pk
26 103048 Static-Dissipating Hose w/Cuffs (Black) 1 ea.
27 101928 Replacement Double Swivel Elbow Cuff (Black) 1 ea.
28 100694 Replacement Swivel Cuff (Black) 1½" 1 ea.
29 101543 Filter Guard (Optional) 1 ea.
30 107294 Thermal Protector Replacement 1 ea.
31 106526 Replacement HEPA Dome Filter 1 ea.
101678 50' Extension Cord (Not Shown) 1 ea.

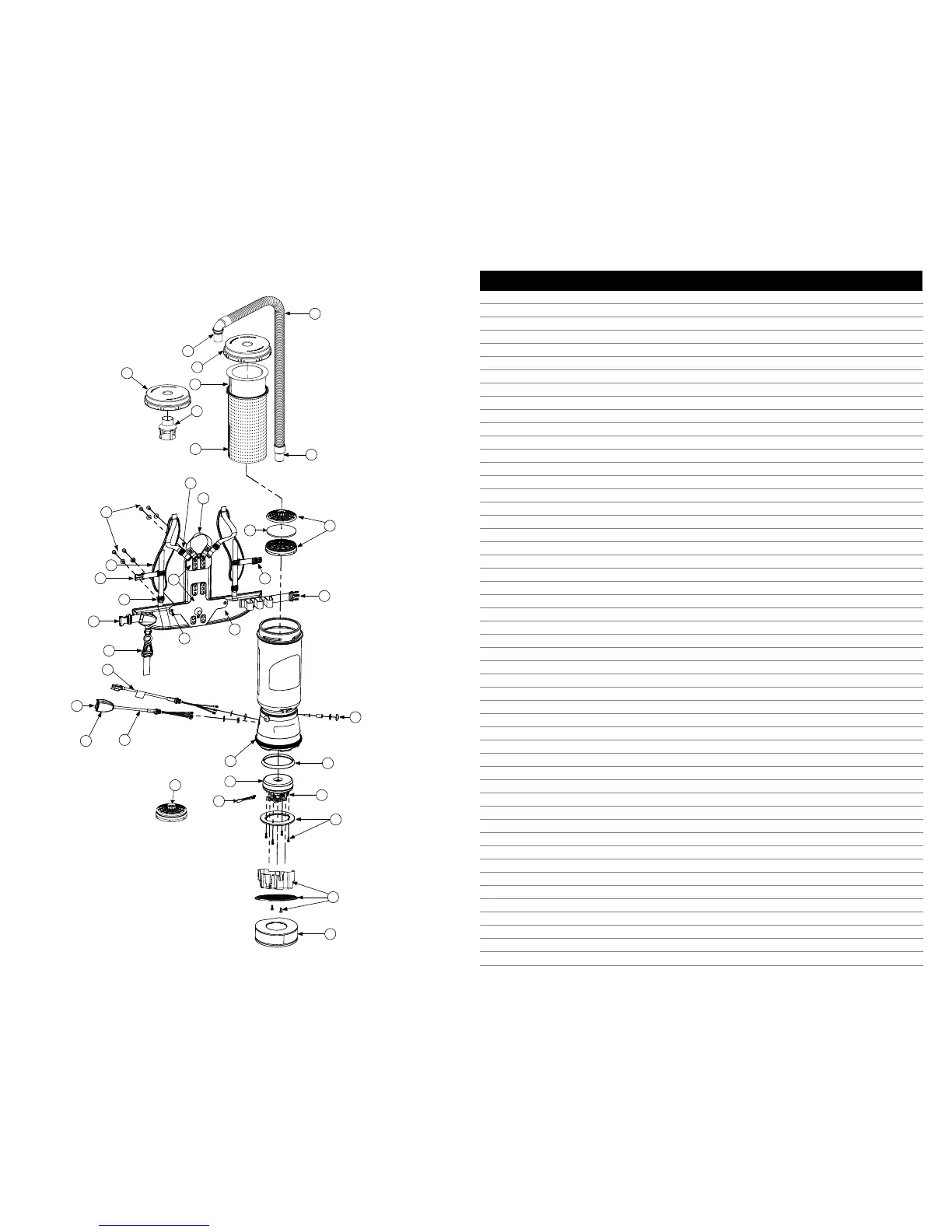

COACHVAC/SUPER COACHVAC/SUPER COACHVAC HEPA ASSEMBLY
