ProTeam Super CoachVac - Page 16

14 – ProTeam Owner's Manual / Manual del propietario de ProTeam / Mode d’emploi ProTeam
LineVacer
No. Product Name Qty
1 104276 Latch Cap w/Cuff (Black) 1 ea.
2 100291 698 Sq. In. Intercept Micro Filter 10/pk
3 100565 Micro Cloth Filter 1 ea.
4 100286 Top or Bottom Cap Latch Set: 3 Latches, 3 Locks w/6 Fastening Rivets, 6 Washers 1 set
5 102604 Cord Holder 1 ea.
6 101737 Carry Handle w/Rivet and Washer Set 1 set
7 100356 Shoulder Strap Assembly (includes: #7a, 7b, 7c) 1 set
7a 100358 Shoulder Strap Plastic Adjustment (Top) 1 ea.
7b 100357 Shoulder Strap Plastic Adjustment (Bottom) 1 ea.
7c 103627 Sternum Strap Buckles (Latch and Keeper) 1 set
8 105046 Backplate (includes: #9) 1 ea.
9 100375 Barrel Nut Connection Set for Backplate (Replacement) 1 set
10 100374 Backplate Connection Set: 4 Screws w/Washers, Stand Offs 1 set
11 106719 Waist Belt Keeper and Latch 1 ea.
12 100359 Waist Belt (includes: #11) 1 ea.
100354 Strap Assembly Complete (includes: #7, 12) 1 set
103166 Backplate System Complete (includes: #6, 7, 8, 10, 12) 1 set
13 100641 Power Cord (18" 14/3) Assembly Complete 1 set
100299 15' Cart power Supply Cord Complete w/Crimps (100279, 100282) 1 set
14 101610 Switch Cord Assembly 120V (includes: #14, 15, 16) 1 set
101714 Switch Cord w/Crimps 1 ea.
101716 18" Switch Cord Assembly Complete 120V 1 set
15 101472 Switch Box w/Velcro and New Lamb Switch 1 set
106287 Switch Box w/Velcro and Screws 1 ea.
16 106066 On/Off Switch (must use with #106287) 1 ea.
17 104275 ULPA Filter Assembly Complete w/Bottom Cap (100280, 100282) 1 set
18 104274 HEPA Filter Assembly Complete w/Bottom Cap (100277, 100279) 1 set
19 100335 Motor Compression Ring w/Screws 1 set
100378 Compression Ring Screw Set: 4 Screws 1 set
20 100014 Tetraseal 1 ea.
21 105697 Carbon Brush Set (Domel Motor) 1 set
100424 Carbon Brush Set (Ametek Motor) (116311-00) 1 set
106904 Carbon Brush Set (Ametek Motor) (122157-00) 1 set
22 100422 Motor/Fan (120 V) w/Crimps (Ametek Motor) 1 ea.
100380 Motor Crimp Set: 4 female, 4 Male and a Ground Crimp Connector 1 set
100379 Motor Ground, Wire Clamp Set w/Screws 1 set
23 100368 Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers 1 set
24 100030 Dome Filter w/Foam Media 1 ea.
25 100343 Foam Filter Media for Dome Filter 1 ea.
26 103048 Static-Dissipating Hose w/Cuffs (Black) 1 ea.
27 101928 Replacement Double Swivel Elbow Cuff (Black) 1 ea.
28 100694 Replacement Swivel Cuff (Black) 1½" 1 ea.
29 107294 Thermal Protector Replacement 1 ea.
30 105044 Motor Shroud/Diffuser w/Screw Set: 2 Screws 1 set
101678 50' Extension Cord (Not Shown) 1 ea.

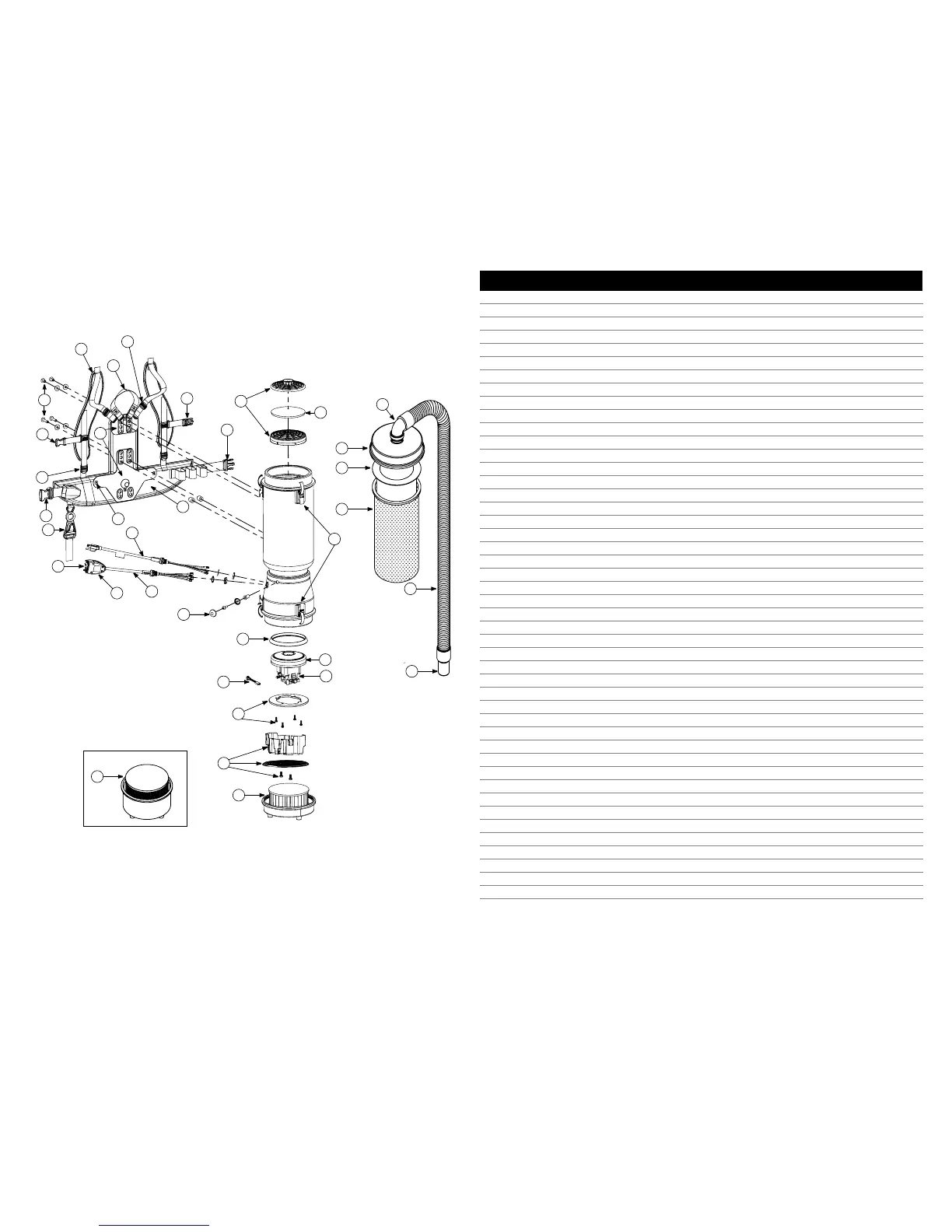

LINEVACER ASSEMBLY
25
24
7
11
7c
6
7a
8
5
15
16
14
13
11
9
12
7b
7c
10
4
22
21
23
29
20
18
17
19
30
3
2
1
27
26
28
