16 – ProTeam Owner's Manual / Manual del propietario de ProTeam / Mode d’emploi ProTeam
Super QuarterVac/Super QuarterVac HEPA
No. Product Name Qty
1 101928 Replacement Double Swivel Elbow Cuff (Black) 1
1
/
2
" 1 ea.
2 106073 Twist Cap (Purple) 1 ea.
3 100431 496 Sq. In. Intercept Micro Filter 10/pk
4 100564 Micro Cloth Filter 1 ea.
5 103048 Static-Dissipating Hose (Black) w/Cuffs 1
1
/
2
" 1 ea.
6 100694 Replacement Swivel Cuff (Black) 1
1
/
2
" 1 ea.
7 100030 Dome Filter w/Foam Media 1 ea.
8 100343 Foam Filter Media for Dome Filter 1 ea.
101220 High Filtration Disk (optional) 2/pk
9 100586 Bottom Bumper 1 set
10 100014 Tetraseal 1 ea.
11 105162 Motor/Fan (120 V) w/Crimps 1 ea.
100379 Motor Ground Wire Clamp Set w/Screws 1 set
100380 Motor Crimp Set: 4 Female, 4 Male, Ground Crimp Connector 1 set
12 105164 Carbon Brush Set (Domel) 1 set
101720 Carbon Brush Set (Ametek) 1 set
13 100335 Motor Compression Ring w/Screws 1 set
100378 Compression Ring Screws: 4 Screws 1 set
14 105044 Motor Shroud/Diffuser w/Screw Set: 2 Screws 1 set
15 105800 Sound Muffler 1 ea.
16 100368 Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers 1 set
17 101714 Switch Cord w/Crimps 1 set
101610 Switch Cord Assembly (includes: #17, 18, 19) 1 ea.
18 106066 On/Off Switch (must use with #106287) 1 ea.
19 101472 Switch Box w/Velcro and New Lamb Switch 1 set
106287 Switch Box w/Velcro and Screws 1 ea.
20 100641 Power Cord (18" 14/3) Assembly 1 set
21 102604 Cord Holder 1 ea.
22 100358 Shoulder Strap Plastic Adjustment Buckle (Top) 1 ea.
23 101737 Carry Handle w/Rivet and Washer Set 1 set
24 103627 Sternum Strap Buckles (Latch and Keeper) 1 set
25 106719 Waist Belt Keeper and Latch 1 ea.
26 100359 Waist Belt (includes: #25) 1 ea.
27 100375 Barrel Nut Connection Set for Backplate (Replacement) 1 set
28 100357 Shoulder Strap Plastic Adjustment Buckle (Bottom) 1 ea.
29 105046 Backplate (includes: #27) 1 ea.
103166 Backplate System Complete (includes: #23, 26, 29, 30, 31) 1 set
30 100716 Backplate (Black) Connection Set: 4 Screws w/Washers 1 set
31 100356 Shoulder Strap Assembly (includes: #22, 24, 28) 1 set
100354 Strap Assembly Complete (includes: #26, 31) 1 set
32 107294 Thermal Protector Replacement 1 ea.
33 106526 Replacement HEPA Dome Filter 1 ea.
101678 50' Extension Cord (Not Shown) 1 ea.

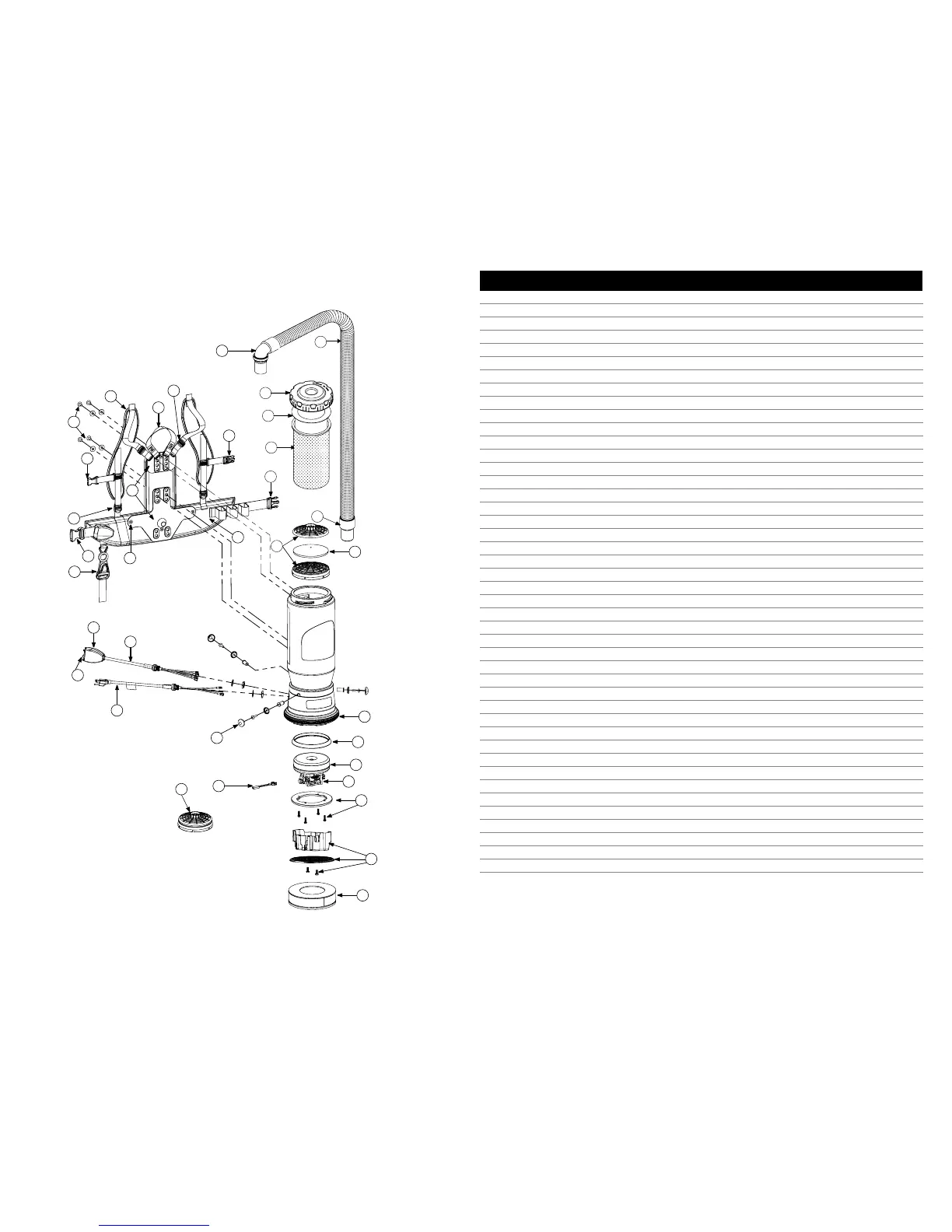

SUPER QUARTERVAC/SUPER QUARTERVAC HEPA ASSEMBLY
1
2
5
3
4
8
6
7
27
21
26
25
28
24
24
30
25
29
23
31
22
20
17
19
18
16
9
10
11
12
13
15
33
32
14
