protech QM1500 User Manual

FUNCTIONS
Max. Display
2000 Count
Basic Accuracy
0.500%
DC Voltage Range
200mV – 1000V
AC Voltage Range
200V – 750V
DC Current Range
2000μA – 10A
Resistance
200Ω to 2000kΩ
Diode Test
Yes
Transistor hFE Test
Yes

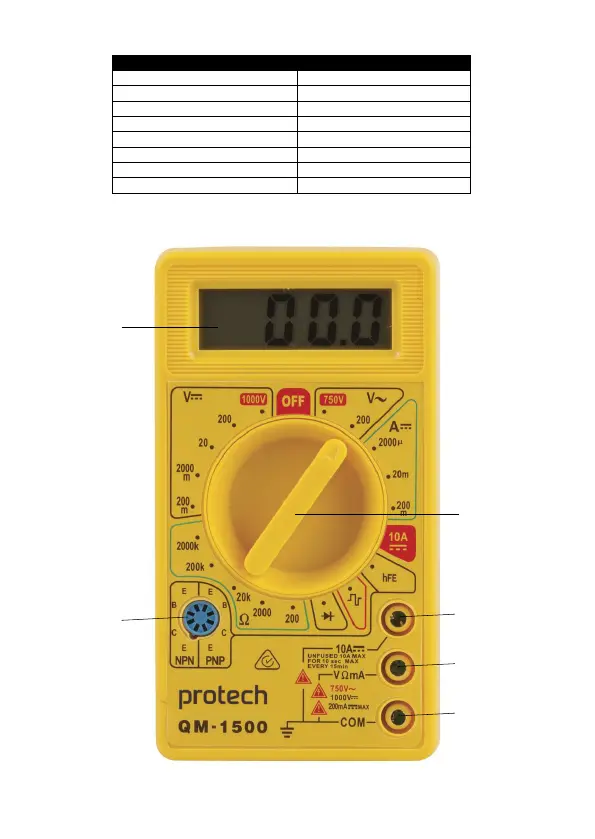

LCD Screen
hFE Socket
Function
Switch
10A Input Jack
VΩmA Input Jack
COM Input Jack
FUNCTIONS
Function Switch
Select a measurement range by turning the
switch to the preferred option.
LCD Screen
Readings and measurements taken by the
multimeter will display in this area.
Input Jacks
 VΩmA: Positive input terminal for voltage
resistance, diode, temperature, frequency
and capacitance.
 COM: Negative input terminal for voltage,
resistance, diode, temperature, frequency
and capacitance.
 10A: Input terminal for 10A current.
SYMBOL
Diode Test
Ω
Ohms
Hz
Hertz (Frequency)
V
Volts
A, mA, μA
Current Range
AC
Alternating Current/Voltage
DC
Direct Current/Voltage
2

protech QM1500 Specifications

General

Brand	protech
Model	QM1500
Category	Multimeter
Language	English
